Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > Numturn 320 SI CNC Cycle Lathe

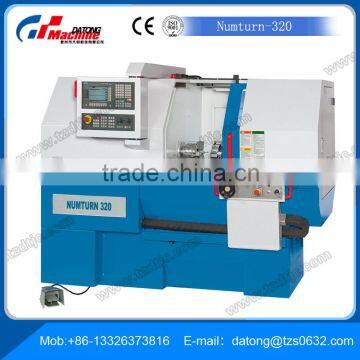

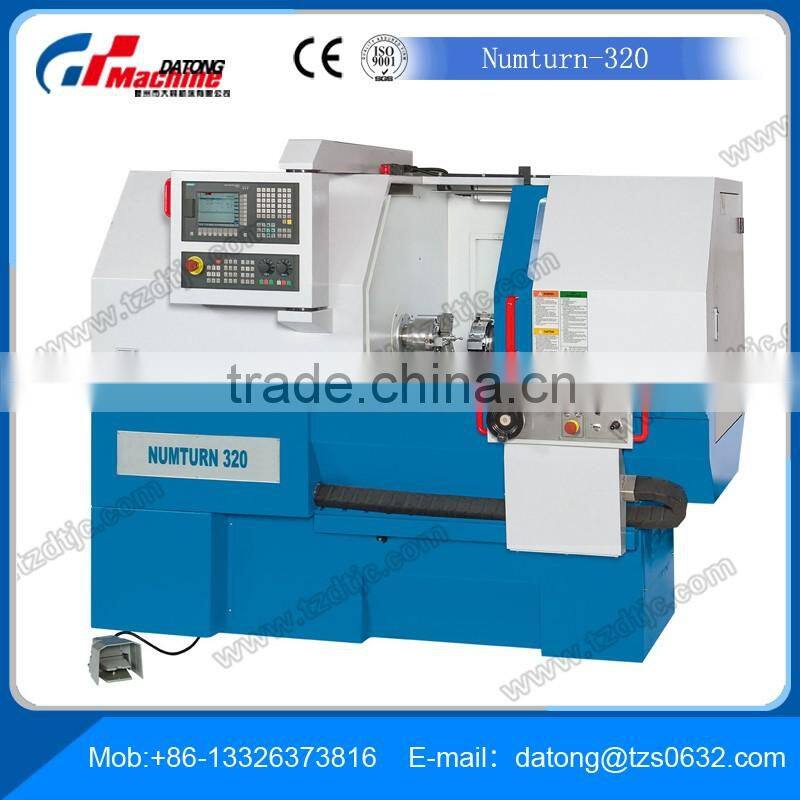

Numturn 320 SI CNC Cycle Lathe

US$ 1,000 - 10,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Vertical

CNC or Not:

CNC

Contact Supplier Request Quote Chat Now

Tengzhou Datong Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Tianjin Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Vertical

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 320mm

Place of Origin Shandong, China

Model Number Numturn 320

Voltage Customer's Requirement

Power(W) 4KW

Dimension(L*W*H) 2200*1260*1750mm

Weight 1800kg

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Powerful CNC Technology for high flexibility and easy handling, available in 4 versions

Details:

manually transverse the X and Z axes via 2 electronic hand wheels
User-oriented cycle interface for easy parts programming - turning cycles with many programming options to create a complete parts program
USB port for easy data transfers (Sinumerik 808 D on PC included in standard equipment)
induction-hardened, ground guideways
Longitudinal and transverse movements via high-quality preloaded ball screws and servo drives
smart central lubrication system for low-maintenance operation

Technical Data:

Working area Workpiece length (max.) Turning length (max.) Turning diameter over bed Turning diameter over support	420 mm 285 mm 320 mm 155 mm
Travels Travel X-axis Travel Z-axis	245 mm 335 mm
Headstock Spindle speed Spindle mount Spindle bore Bar capacity (incl. chuck)	3.000 rpm A2-5 48 mm 30 mm
Rapid feed Rapid feed X-axis Rapid feed Z-axis	4.000 mm/min 6.000 mm/min
Tool head Number of tool stations	6 Pieces
Tailstock Tailstock taper Tailstock quill diameter Tailstock quill stroke	MT 4 50 mm 120 mm
Accuracies Positioning accuracy X-axis Positioning accuracy Z-axis Repeatability X-axis Repeatability Z-axis	0,012 mm 0,016 mm 0,008 mm 0,01 mm
Drive capacity Motor rating main drive Motor rating coolant pump Motor rating X-axis Motor rating Z	4 kW 0,18 kW 1,6 kW 1,6 kW
Measures and weights Overall dimensions (length x width x height) Weight	2.200x1.260x1.750 mm 1.800 kg

Control:

Siemens Sinumerik 808 D MM Plus Drehen

Standard Equiupment:

Siemens 808 D MM Plus control, 2 electronic hand-wheels, hydraulic 3-jaw chuck 160 mm, 6-station turret, automatic central lubrication, work lamp, operating tools, operating manual and programming instructions

Packaging & Shipping

Company Information

The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.

Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
