Gear Hobbing Machine
Specification:
Technical data |
Unit |

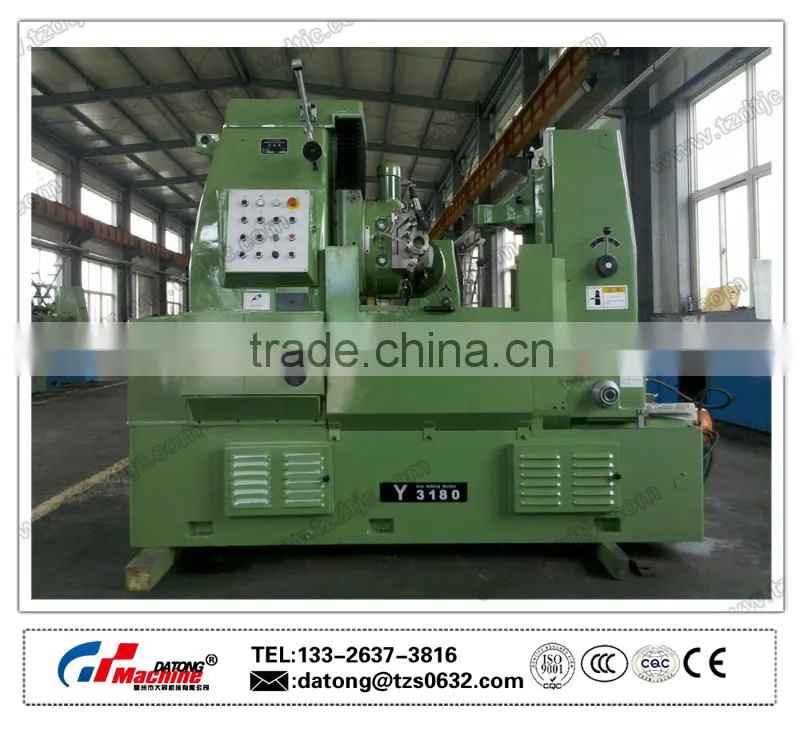

Y3150 |

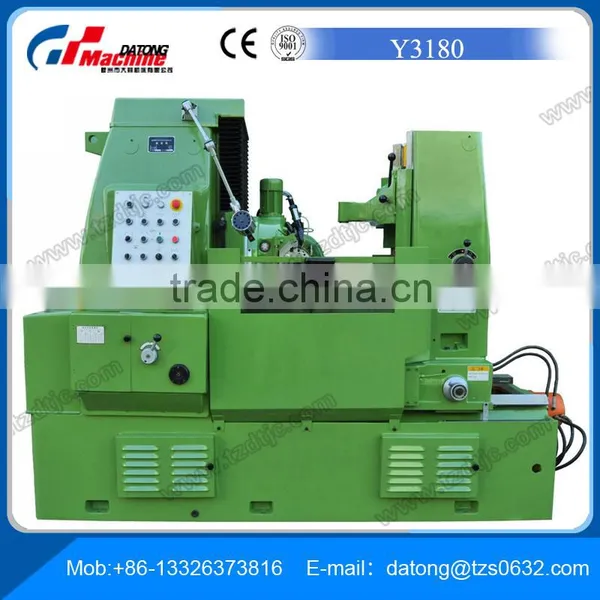

Y3180 |
Max.dia.of workpiece (without back column/with back column) |
mm |
500/500 |
800/550 |
Max.modulus(casting iron/steel workpiece) |
mm |
8/6 |
10/8 |
Max machining width |
mm |
300 |
500 |
Minimum hobbing gear teeth |
|
5 |
7 |
Max. travel of carriage in vertical direction |
mm |
400 |
530 |
Max. helix angle in turning bevel gear |
° |
±45° |
±45° |
Distance between axis of cutter and work table face |
mm |
235~635 |
235~765 |
Spindle taper |
|
MT5 |
MT5 |
Max. dimension of cutter (Dia. x Length) |
mm |
160x180 |
160x180 |
Max. axial movement of cutter |
mm |
180 |
180 |
Diameter of changeable hobbing arbor |
mm |
22,27,32 |
27,32,40 |
Distance from hob center to workable center |
mm |
30~330 |
50~550 |
Rapid moving speed of work table |
mm |
50 |
50 |
External Diameter/bore diameter of work table |
mm |
510/80 |
650/80 |
Spindle speed steps |
|
9 |
8 |
Spindle speed range |
rpm |
40~250 |
40~200 |
Axial feeds range |
mm/rev |
12 steps 0.4~4 |
12 steps 0.4~4 |
Power of main motor synchro-speed |
kw/rpm |
4/1500 |
5.5/1500 |
Power of rapid axial motor synchro-speed |
kw/rpm |
1.1/1500 |
|
Power of rapid worktable motor synchro-speed |
kw/rpm |
1.1/1000 |
|
Power of pump motor synchro-speed |
kw/rpm |
1.5/1500 |
1.5/1500 |
Net weight |
kg |
4500 |
5800 |
Overall size |
mm |
2440x1270x1920 |
2765x1420x2030 |
If you need others model,please feel free to contact us.
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
