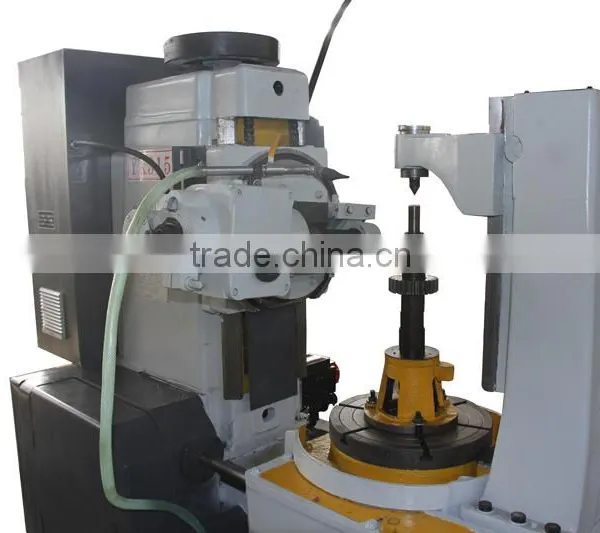

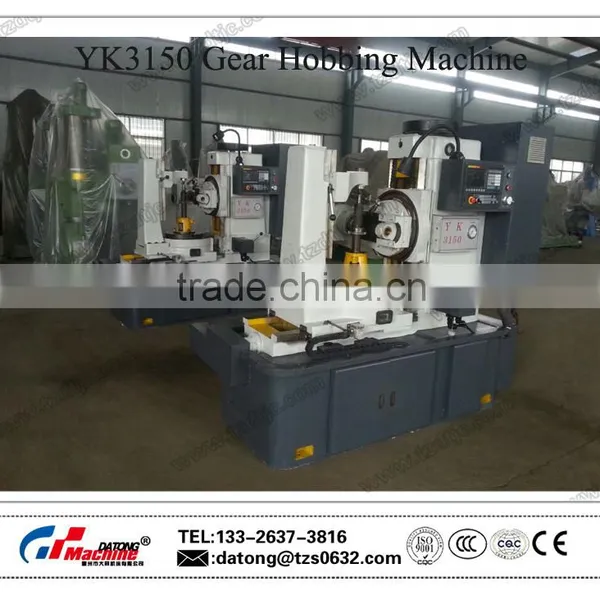

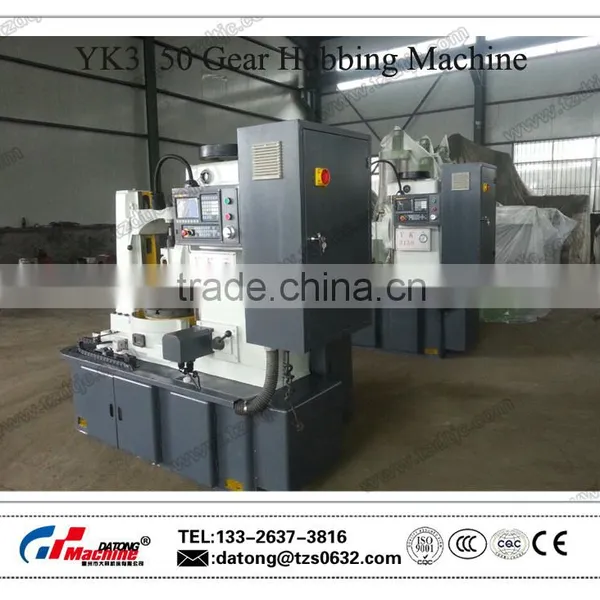

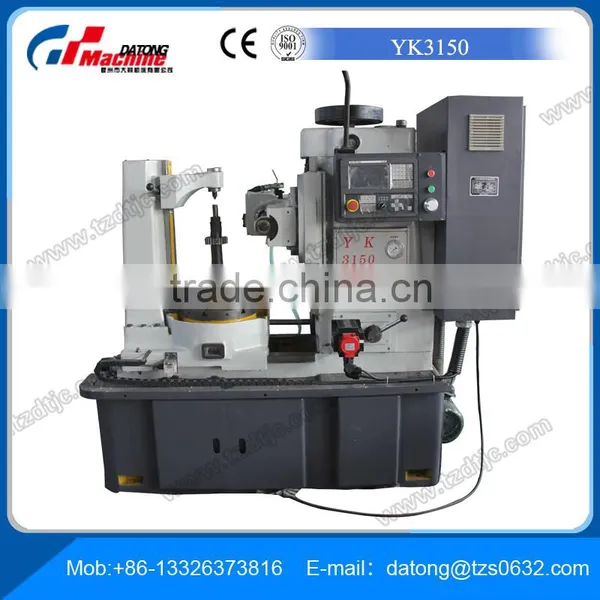

Help CenterSale Factory YK3150 CNC Gear Hobbing Machine
Related Products
-
Sale Factory YK3180H CNC Gear Hobbing MachineUS$ 30,000 - 50,000MOQ: 1 Set -
Sale Factory YK3180 CNC Gear Hobbing MachineUS$ 30,000 - 50,000MOQ: 1 Set
-
Used Gear Hobbing Machine YK3150-3 for SaleUS$ 9,000 - 15,000MOQ: 1 Set
-
Sale Factory YK3150H CNC Gear Hobbing MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
Sale Factory FX-G120 Gear Hobbing MachineUS$ 1,000 - 10,000MOQ: 1 Set
Feature:
1. Mitsubishi/Siemens/Fanuc numerical control system and servo drive, system reliability, simple operation
2. High rigidity, high speed, strong cutting, high efficiency, high precision rolling
3. Can use the milling, inverse milling, axial cut or cut into the radial way processing
4. One or more box to be automatic cycle; Hob automatic axial shifting;
5. Guide rail automatic lubrication device; Automatic scraps discharge device;
6. Electricity the temperature control, ensure reliable operation
7. The most suitable for wind power, mining, petroleum, the ships, the sprocket, etc
8. When special orders can be installed oil mist processing, cooling oil cooling, and hydraulic oil cooling devices
Parameter:
Description |
Parameter |
|
|
|
YK3150 |
||
Max. diameter of workpiece |
mm |
500 |
|
Max. module |
mm |
8 |
|
Max. helix angle |
° |
±45 |
|
Max speed of worktable |
r/min |
7.8 |
|
Speed of spindle |
rpm |
40~250 |
|
Z axis rapid feed rate |
mm/min |
900 |
|
X axis rapid feed rate |
mm/min |
900 |
|
Y axis rapid feed rate |
mm/min |
5000 |
|
Distance from the hob centerto worktable center |
mm |
30 ~330 |
|
Distance fromthe hob centerto worktable surface |
mm |
235~535 |
|
Distance from outer bracket center to worktable surface |
mm |
336~566 |
|
Maxsize of hob D×L |
mm |
160×160 |
|
Hob shifting distance |
mm |
55/150 |
|
Main motor power |
KM |
4 |
|
Total motor power |
KW |
10.1/11.1 |
|
Boxes packing case dimension (L×W×H) |
mm |
2590x1560x1830 |
|
Net weight/gross weight |
kg |
5000/ 6000 |
|
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
