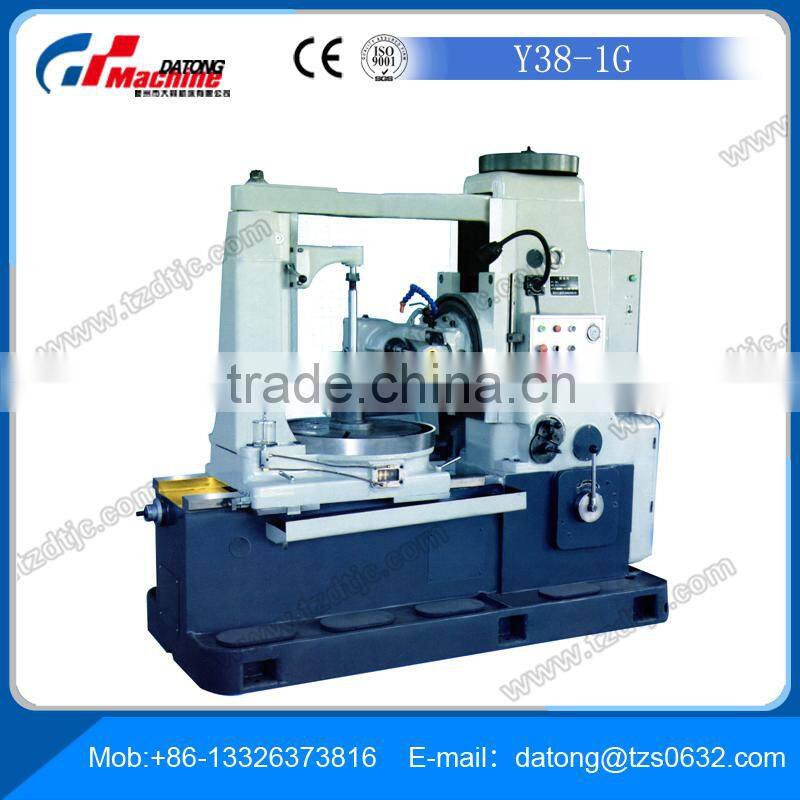

Help CenterSale Factory Y38-1G Gear Hobbing Machine
Related Products
-
Sale Factory Y3150 Gear Hobbing MachineUS$ 7,000 - 8,000MOQ: 1 Set -
Gear Hobbing Machine for SaleUS$ 1,000 - 10,000MOQ: 1 Set
-
Supply Gear Cutting Gear Hobbing Slotting MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
Sale Factory YK3150 CNC Gear Hobbing MachineUS$ 10,000 - 20,000MOQ: 1 Set
-
Sale Factory YK3180H CNC Gear Hobbing MachineUS$ 30,000 - 50,000MOQ: 1 Set
Description:
Y38-1 /Y381G
gear hobbing machine is normal gear hobbing machine,which can be used in milling cylindrial gears,helical gears,worm gear pairs,chain gears
and short spline shafts.
*The structure of this machine is reasonable,layout is compact,tin bronze worm
wheel,grinding gear box,the usage and repair is easy,it can feed in one time or several times acc
ording to the module number and the precision during the processing.At the end of the milling,th
e machine can stop by itself,and the sliding carriage can move quickly.
Specification:
Model |
Y38-1/Y38-1G |
Working precision |
JB179-83.7 grade |
Max working module |
Steel m6 |
Cast m8 | |
Max diameter working clylinder gear |
With rear pillar 450mm |
Without rear pillar 800mm | |
Min ing clylinder gear |
On zero position |
Max diameter working clylinder spiral gear |
When helical angle in 30 degree 500mm |
When helical angle in 60 degree 190mm | |
Max milling teeth thickness(milling spur gear) |
250mm |
Turing speed range of hub principal axis |
47.5-192r/min |
Turing speed grade range of hub principal axis |
7 grade |
motor |
4KW |
Overall size(L*w*H) |
2290x1100x1910 |
Weight |
3500kgs |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
