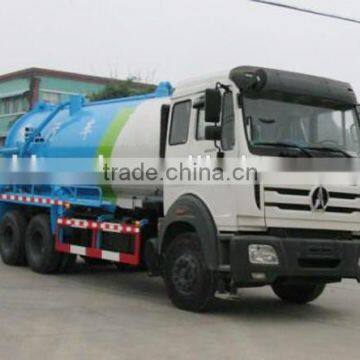

North-Benz 6x4 16000L vacuum sewage suction truck with vacuum pump WEICHAI diesel engine WP10.270E32 270hp

Vehicle parameters

Vehicle Model

HLQ5254GXWN

Vehicle Brand

HELI

Overall dimensions

9050×2480×3030mm

Curb weight

14805kg

Tank dimensions

6600×1850×1850mm

Tank volume

16000L

Manufacturer

Hubei Heli Special Automobile Manufacture Co.,Ltd

Chassis parameters

Chassis model

ND1254B41J

Chassis brand

North-Benz

Overall dimensions

8915x2495x3030mm

Wheel base

4100+1350mm

Front/rear wheel track

2045/1870/1870mm

Front/rear suspension

1410/2055 mm

Approach/departure angle

21/23°

Maximum speed

85km/h

Chassis Manufacturer

BEIBEN TRUCK

Cab

Configuration

NG80Ba row and a half cab(with sleeping berth),allowable 3 passengers,air conditioner

Color

White,other color is optional

Engine

Model

WP10.270E32

Emission

Euro 3

Type

6 cylinders,in-line,water-cooled,4-stroke,turbo inter-cooling, direct injection,exhaust valve brake,diesel engine

Rated power

270hp,rated power speed 2200rpm

Displacement

9726ml

Max.torque

1100N.m

Bore x stroke

126x130mm

Manufacturer

Weichai Power Co.,Ltd

Tire

Size

11.00R20 steel wire tire

Number

10+1 nos

Clutch

φ430 diaphragm clutch

Fuel tank

400L aluminum alloy

Front axle

5.5 tons

Rear axle

457 rear axle,13.0 tons

Drive form

6X4

Suspension

Multi leaf springs

Rated voltage

24V,DC

Transmissions

Gearbox 9JS119B ,9 speed forward 1 reverse

Steering device

Power assisted steering

Steering wheel

Left hand drive

Selective configuration

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Vacuum sewage suction tank structure parameters

Tank dimensions

6600×1850×1850mm

Tank volume

16000L

Tank material

Carbon steel

Tank thickness

6mm

Color and Logo

Optional

China WEILONG vacuum pump

Model

50QZXDH-68/7000

RPM

800r/min

Flow

68L/s

Pressure

7000Pa(93%)

Power

5kw

Weight

50kg

Standard configuration

Chassis,sub frame,vacuum sewage tank,oil water separator, water gas separator, hydraulic cylinder for unloading device, domestic vacuum pump, pressure gauge,suction hose, gravity flow valve, connected device,observation tube, automatic anti overflow valve, hydraulic suite,rear door hydraulic opening.

Selective configuration

Italy BP vacuum pump,Italy Hydraulic Motor

Italy BP vacuum pump

Model

MEC9000

RPM

1400r/min

Flow

107L/min

Pressure

174bar

Power

30kw

Weight

145kg

Italy Hydraulic Motor

Code

6080200141

Model

KM30.73-RO

R.P.M

1000r/min

Capacity

73,82L/min

Output

17KW

Torque

136Nm

MOQ,payment terms,delivery terms,price

MOQ

One unit

Payment terms

T/T 30% down payment, 70% balance after inspection before delivery

L/C is optional

Inspection

Buyer's agent or third party inspection agency,the cost is paid by the buyer

Delivery term

20 days from down payment

Documentation

Maintenance manual

User manual

Packing list

Commercial invoice

Certificate of origin is optional

Spare parts list for purchase is optional

Standard tools

With standard tools for chassis and vacuum sewage suction tank structure

Packing

The main vehicle nude and covered with wax, attached parts and tools put into standard export box

Other requirements

Please fill in here

FOB

USD

CNF/CIF

USD

Shipment

Because exchange rate and ocean freight may be changed in near future,so the price is only valid for 15 days.

Please confirm the price again with our company before placing the order,thanks.
