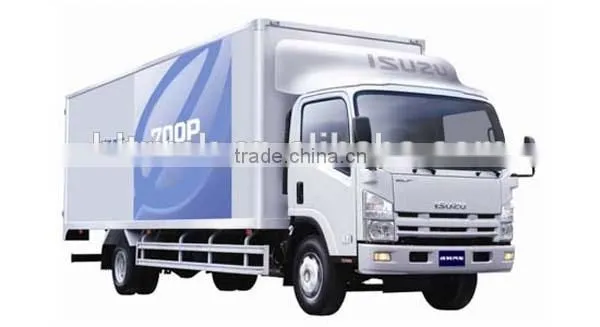

Japan Technology 4x2 15M3 Van Vehicle 190hp Japan Quality

Name: Japan Technology 4x2 15M3 Van Vehicle 190hp Japan Quality
Brand: ISUZU
SKU: 123363317

US$ 28,000 - 33,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Capacity (Load):

11 - 20t

Drive Wheel:

4x2

Hubei Heli Special Automobile Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Capacity (Load) 11 - 20t

Drive Wheel 4x2

Transmission Type Manual

Emission Standard Euro 4

Fuel Type Diesel

Engine Capacity 4 - 6L

Size 8155X2396X3330

Gross Vehicle Weight 19600

Place of Origin Hubei, China

Brand Name ISUZU

Model Number HLQ511009XXYQ van vehicle

Product Description

Vehicle parameters
Vehicle Model		HLQ511009XXYQ	Vehicle Brand	HELI
Overall dimensions		8155X2396X3330mm	Curb weight	4560kg
Van dimensions		6212×2278×2203mm	Loading capacity	15000kg
Manufacturer	Hubei Heli Special Automobile Manufacture Co.,Ltd

Chassis parameters
Chassis model			QL11009MARY	Chassis brand	ISUZU
Overall dimensions			7930x2170x2330mm	Wheel base	4475mm
Front/rear wheel track			1680/1650mm	Front/rear suspension	1110/2345mm
Approach/departure angle			21/11°	Maximum speed	110km/h
Chassis Manufacturer			QingLing Motors (Group) Co., Ltd.
Cab	Configuration		700P,single row cab,allowable 3 passengers,air conditioner, USB radio interface,cab can be flipped.
	Color		White,other color is optional
Engine	Model		4HK1-TCG40
	Emission		Euro 4
	Type		4 cylinders,4 valve,4-stroke,in-line,common rail,precision electronic control,multistage injection,optimal combustion,exhaust gas recirculation, diesel engine.
	Rated power		190hp
	Displacement		5193ml
	Manufacturer		Isuzu (ChongQing) Engine Co., Ltd.
Tire	Size		8.25-20-14PR nylon tire
	Number		6+1 nos
Frame	216x70(6+3)mm
Front axle	4.0tons
Rear axle	7.0 tons
Drive form	4×2
Suspension	Multi leaf springs
Rated voltage	24V,DC
Transmissions	Isuzu MLD six speed transmission,6 speed forward 1 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
Selective configuration		Tire:825R16,825-20,825R20,235/75R17.5
If there is a slight change in the chassis parameters above,please take the actual product as the standard

Van body structure parameters
Van dimensions		6212×2278×2203mm	Loading capacity	15000kg
Van material		Corrugated iron tile	Color and Logo	Optional
Standard configuration	Chassis,sub frame,corrugated iron tile van body.
Selective configuration	Van body material(color steel plate, aluminum alloy,stainless steel),single door, double door, polyurethane insulation layer,refrigeration unit.

MOQ,payment terms,delivery terms,price
MOQ	One unit
Payment terms	T/T 30% down payment, 70% balance after inspection before delivery
	L/C is optional
Inspection	Buyer's agent or third party inspection agency,the cost is paid by the buyer
Delivery term	20 days from down payment
Documentation	Maintenance manual
	User manual
	Packing list
	Commercial invoice
	Certificate of origin is optional
	Spare parts list for purchase is optional
Standard tools	With standard tools for chassis and van body structure
Packing	The main vehicle nude and covered with wax, attached parts and tools put into standard export box
Other requirements		Please fill in here
FOB			USD
CNF/CIF			USD	Shipment
Because exchange rate and ocean freight may be changed in near future,so the price is only valid for 15 days. Please confirm the price again with our company before placing the order,thanks.
