JAC 4x2 10M3 Van Truck 160hp Good Quality Hot Sale

US$ 27,000 - 32,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Capacity (Load):

1 - 10t

Drive Wheel:

4x2

Hubei Heli Special Automobile Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Capacity (Load) 1 - 10t

Drive Wheel 4x2

Horsepower 150 - 250hp

Transmission Type Manual

Emission Standard Euro 4

Fuel Type Diesel

Engine Capacity 4 - 6L

Size 8280X2545X3800

Gross Vehicle Weight 16000

Place of Origin Hubei, China

Brand Name JAC

Model Number HLQ5161XXYH van cargo truck

Product Description

Vehicle parameters
Vehicle Model		HLQ5161XXYH	Vehicle Brand	HELI
Overall dimensions		8280X2545X3800mm	Curb weight	5900kg
Van dimensions		5800X2400X2500mm	Loading capacity	10000kg
Manufacturer	Hubei Heli Special Automobile Manufacture Co.,Ltd

Chassis parameters
Chassis model		HFC1161P3K2A47F	Chassis brand	JAC
Overall dimensions		7230x2495x3070mm	Wheel base	4700mm
Front/rear wheel track		1963 ,1800 mm	Front/rear suspension	1530/1000mm
Approach/departure angle		20/19°	Maximum speed	95km/h
Chassis Manufacturer		Anhui Jianghuai Automobile Co., Ltd
Cab	Configuration	A row and a half deluxe cab(with sleeping berth), allowable 3 passengers, air condition, electric window, traveling data recorder
	Color	Red, other color is optional
Engine	Model	YC4E160-42
	Emission	Euro 4
	Type	4 cylinders, in-line, 4-stroke,water-cooled, turbo inter-cooling, direct injection, diesel engine
	Rated power	160hp, rated power speed 2600rpm
	Displacement	4260ml
	Max.torque	550N.m
	Bore x stroke	110X112mm
	Manufacturer	Guangxi Yuchai Machinery Group Co., Ltd
Tire	Size	11.00R20 steel wire tire
	Number	6+1 nos
Clutch	Φ430 diaphragm clutch
Frame	245X75X7mm
Fuel tank	300L iron oil tank
Rear axle	Boying 8 tons
Drive form	4X2
Suspension	Multi leaf springs
Rated voltage	24V, DC
Transmissions	gearbox CA6T138-85, 6 speed forward 1 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above, please take the actual product as the standard

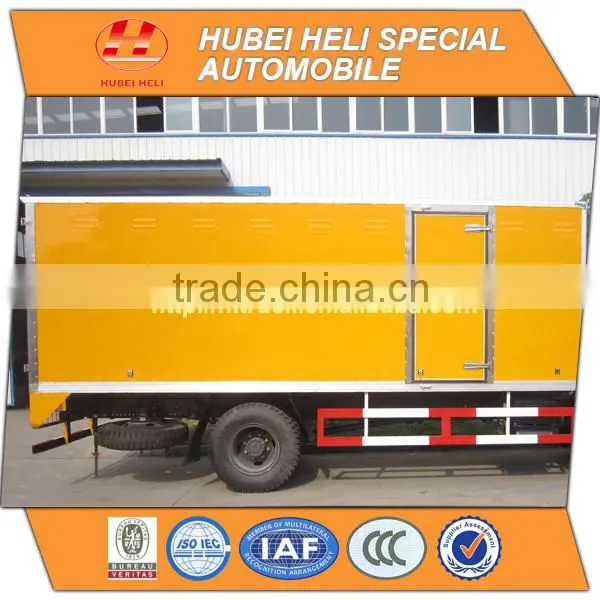

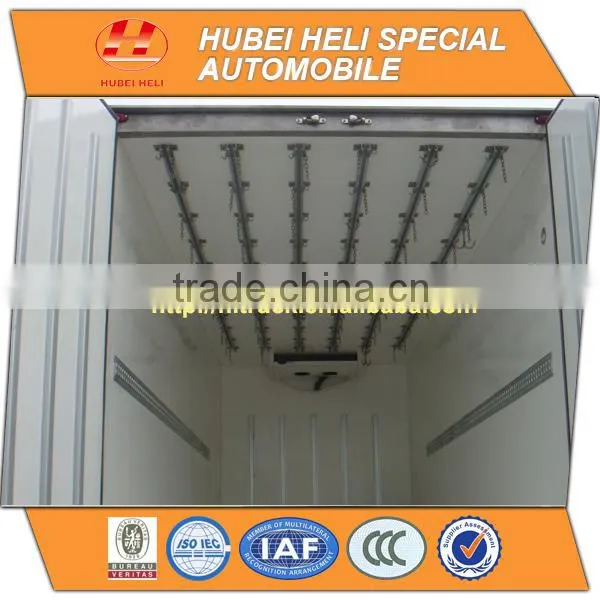

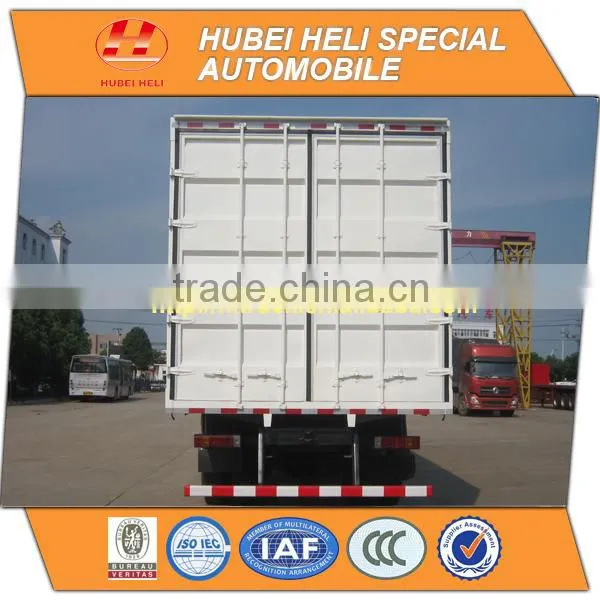

Van body structure parameters
Van dimensions		5800X2400X2500mm	Loading capacity	10000kg
Van material		Corrugated iron tile	Color and Logo	Optional
Standard configuration	Chassis,sub frame,corrugated iron tile van body.

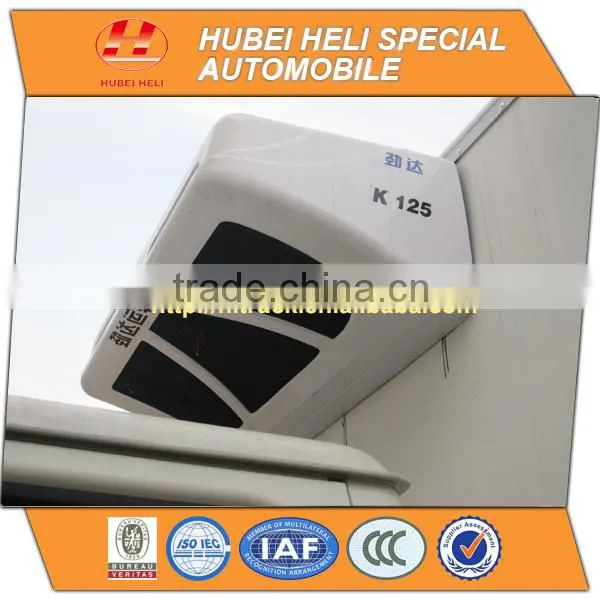

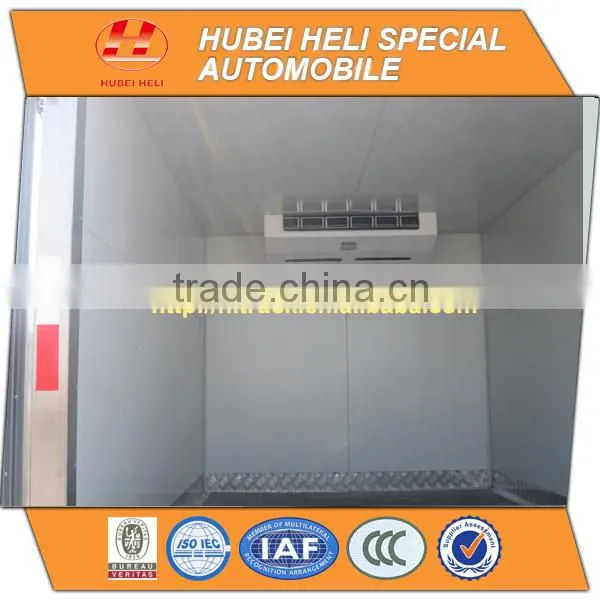

Selective configuration	Van body material(color steel plate, aluminum alloy,stainless steel),single door, double door, polyurethane insulation layer,refrigeration unit.

MOQ,payment terms,delivery terms,price
MOQ	One unit
Payment terms	T/T 30% down payment, 70% balance after inspection before delivery
	L/C is optional
Inspection	Buyer's agent or third party inspection agency,the cost is paid by the buyer
Delivery term	20 days from down payment
Documentation	Maintenance manual
	User manual
	Packing list
	Commercial invoice
	Certificate of origin is optional
	Spare parts list for purchase is optional
Standard tools	With standard tools for chassis and van body structure
Packing	The main vehicle nude and covered with wax, attached parts and tools put into standard export box
Other requirements		Please fill in here
FOB			USD
CNF/CIF			USD	Shipment
Because exchange rate and ocean freight may be changed in near future,so the price is only valid for 15 days. Please confirm the price again with our company before placing the order,thanks.
