Home > Transportation > Truck > General Cargo Truck > FAW J6 Cab 8x4 40M3 Vans Trucker 310hp Good Quality

FAW J6 Cab 8x4 40M3 Vans Trucker 310hp Good Quality

US$ 45,000 - 50,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Capacity (Load):

31 - 40t

Drive Wheel:

8x4

Hubei Heli Special Automobile Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Capacity (Load) 31 - 40t

Drive Wheel 8x4

Horsepower 251 - 350hp

Transmission Type Manual

Emission Standard Euro 3

Fuel Type Diesel

Engine Capacity 6 - 8L

Size 11995X2550X3720

Gross Vehicle Weight 53000

Place of Origin Hubei, China

Brand Name FAW

Model Number HLQ1310XXYC vans trucker

Product Description

Vehicle parameters
Vehicle Model		HLQ1310XXYC	Vehicle Brand	HELI
Overall dimensions		11995X2550X3720mm	Curb weight	12550kg
Van dimensions		9400X2400X2300mm	Loading capacity	40000kg
Manufacturer	Hubei Heli Special Automobile Manufacture Co.,Ltd

Chassis parameters
Chassis model		CA1310P63K2L6T4E	Chassis brand	FAW
Overall dimensions		11825x2495x2896mm	Wheel base	1950+4550+1350mm
Front/rear wheel track		1950/1950,1847/1847 mm	Front/rear suspension	1400/2575mm
Approach/departure angle		21/12°	Maximum speed	79km/h
Chassis Manufacturer		FAW Group Corporation
Cab	Configuration	J6M a row and a half deluxe cab(with sleeping berth), allowable 3 passengers, electric lift glass, manual mirrors, air damping seats, automatic air conditioner, high efficiency single air filter, electric hydraulic lifting device.
	Color	Red, other color is optional
Engine	Model	CA6DL1-31E3F
	Emission	Euro 3
	Type	6 cylinders, in-line, 4-stroke, turbo inter-cooling, direct injection diesel engine
	Rated power	310hp, rated power speed 2300rpm
	Displacement	7700ml
	Max.torque	1200N.m
	Bore x stroke	110x135mm
	Manufacturer	FAW Group Corporation
Tire	Size	11.00R20 steel wire tire
	Number	12+1 nos
Clutch	φ430 diaphragm clutch
Frame	270×75×(7+5)mm
Fuel tank	600L Aluminum alloy
Front axle	1950 front axle
Rear axle	Φ457 13T casting type, main reduction ratio 4.444
Drive form	8X4
Suspension	Multi leaf springs
Rated voltage	24V,DC
Transmissions	gearbox CA10TAX130M, 10 speed forward 2 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above, please take the actual product as the standard

Van body structure parameters
Van dimensions		9400X2400X2300mm	Loading capacity	40000kg
Van material		Corrugated iron tile	Color and Logo	Optional
Standard configuration	Chassis,sub frame,corrugated iron tile van body.

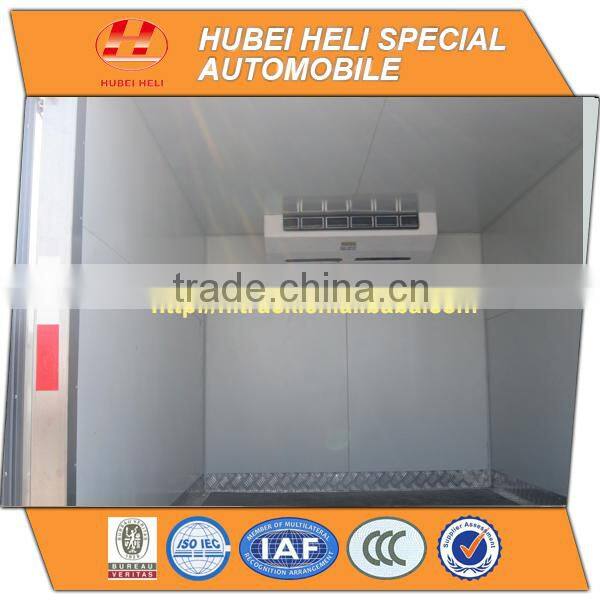

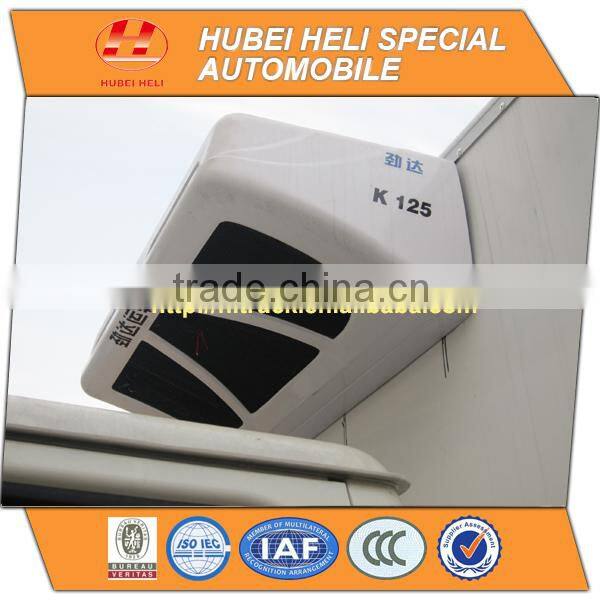

Selective configuration	Van body material(color steel plate, aluminum alloy,stainless steel),single door, double door, polyurethane insulation layer,refrigeration unit.

MOQ,payment terms,delivery terms,price
MOQ	One unit
Payment terms	T/T 30% down payment, 70% balance after inspection before delivery
	L/C is optional
Inspection	Buyer's agent or third party inspection agency,the cost is paid by the buyer
Delivery term	20 days from down payment
Documentation	Maintenance manual
	User manual
	Packing list
	Commercial invoice
	Certificate of origin is optional
	Spare parts list for purchase is optional
Standard tools	With standard tools for chassis and van body structure
Packing	The main vehicle nude and covered with wax, attached parts and tools put into standard export box
Other requirements		Please fill in here
FOB			USD
CNF/CIF			USD	Shipment
Because exchange rate and ocean freight may be changed in near future,so the price is only valid for 15 days. Please confirm the price again with our company before placing the order,thanks.
