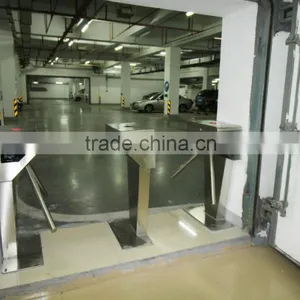

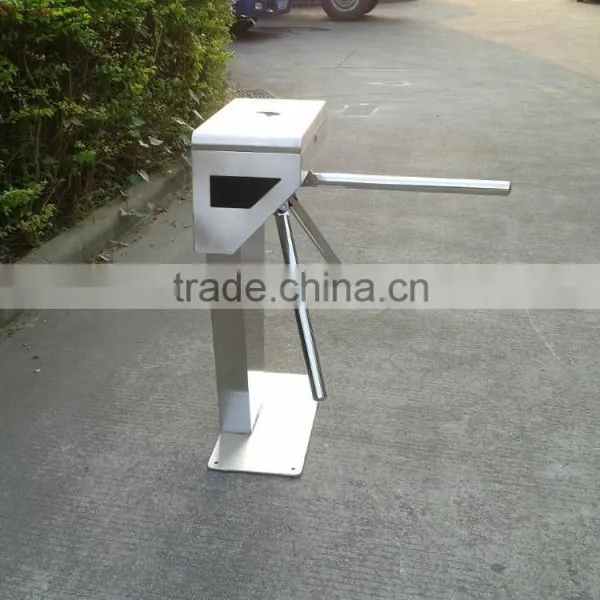

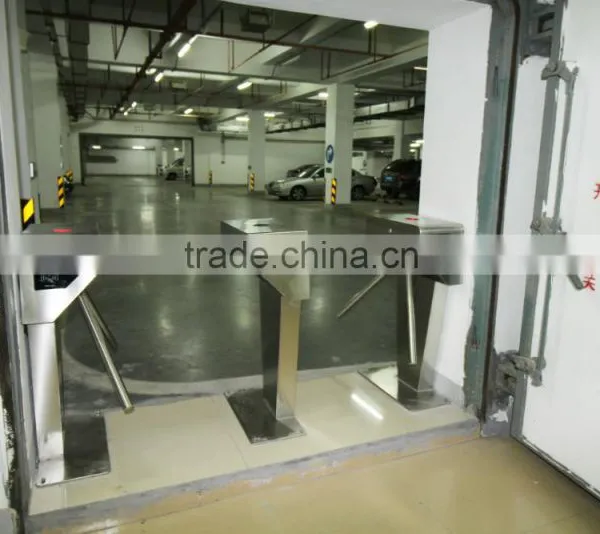

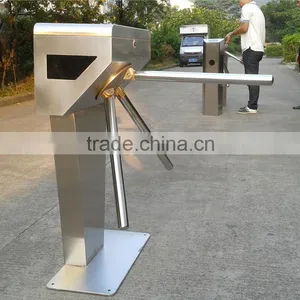

Tripod turnstile TR4 is suitable for areas where there is a large flow of people.

The Tripod Turnstile is a compact, cost-effective entrance solution with low power consumption and high reliability. Choose from standard versions or custom-design a solution. Suitable for internal or external use in areas where there is a large and constant flow of people.

Main Features

l  High flow rate – 40 people per minute

l  For internal or external use

l  Bi-directional passage

l  Choice of static fixed arm or drop arm when power off

l  Emergency setting to allow for safe evacuation

l  Stainless steel construction with a choice of finishes

Materials

l  Casework: Stainless steel 304# 1.5mm

l  Windows of Led and card reader: Acrylic 6mm thickness

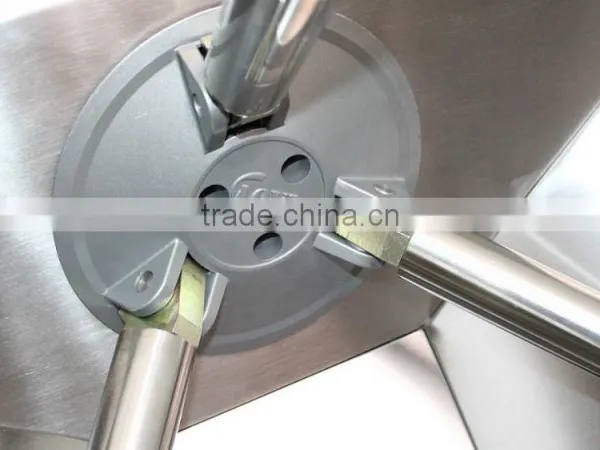

l  Tripod hub: Cast aluminum with painted grey finish

l  Tripod arms: Stainless steel Ø38mm tube with 1.5mm thickness

Mechanism

l  Positive locking action for one passage at a time

l  Self-centering mechanism to ensure complete rotation

l  Hydraulic damper to ensure smooth operation

l  Anti-backup device to prevent reverse rotation once the mechanism has moved 60° from home

Power Failure/Fire Alarm

l  Either one or both directions can be fail-safe (standard), i.e. rotates freely, or fail lock, i.e. locks in the home position.

l  Fire alarm – emergency input. Input facility available for free voltage contact to effect fail state.

l  Mechanism fail state will be the same as power failure choice.

l  Drop arm option: the horizontal arm drops to create a clear passage for evacuation.

Interface

l  microprocessor control logic

l  One input for opening/locking in each direction

l  Two protected outputs controlling opening/locking

l  Four protected outputs piloting way mode indicators

l  Two protected outputs counting passage in ether directions

l  Two 0V output relays indicating availability of use or counting passage in either direction

l  NPN Two open collector NPN outputs to count passage or to indicate availability of use in either direction or activate the optional drop arm feature

l  Serial Port – RS485

Power Supply/Power Rating

l  Transformer: 110-240VAC, 60Hz

l  Power Requirements: 75W

l  Operational Voltage: 24VDC

l  Flow Rates (approximate figures): 30/min

Options

l  Card reader mounting

l  Remote control

l  Push button control

l  1D/2D bar code scanner

l  Portable base plates

l  Configurate and administrate over TCP/IP network

l  110-240VAC input

l  Key resettable counters installed in lid

l  Serial communication interface

l  Colorful stainless steel

l  LCD counter

Applications

l  Government

l  Supermaket

l  Finance

l  Telecommunications

l  IT

l  Banking

l  Publishing

l  Leisure

l  Petrochemical

l  Education

Features

l  Suitable for indoor or outdoor use

l  Self-centering arm rotation

l  Easily integrates with any access control system

l  Adjustable duration auto relocking if no passage after activation

l  Red/green 3 LED activation lights

l  Drop arm when power failure of emergency

l  No exposed bolts or fasteners

l  Stainless steel internal components

l  Card reader integration / reader installed under lid

l  Manual key locks to lock or allow rotation for either rotation direction

l  Timed delay auto relock*

l  Turnstile rotation count output / feedback signal

Technical Specs

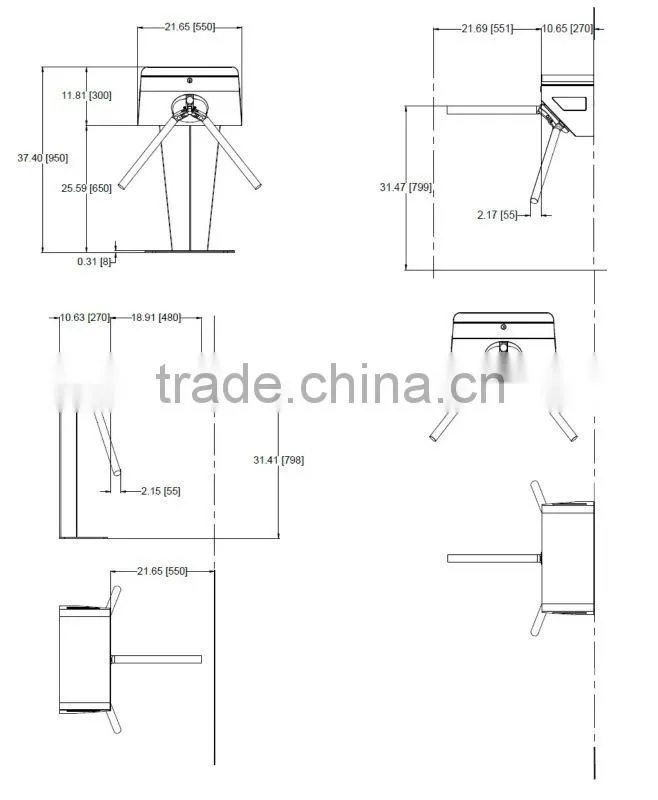

l  Size L800×W250×H1000mm

l  Product net Weight 90kg

l  Transformer: 220VAC, 60 Hz.

l  Power Requirements: Max power consumption is 75W.

l  Operational Voltage: 24VDC

l  Surge Protection: A 2.5 amp fuse is installed in each master cabinet.

l  Operating Temperature:-29°C to 66°C

l  Storage Temperature:-30°C to 71°C

l  Relative Humidity: 0-90% (non condensing)
