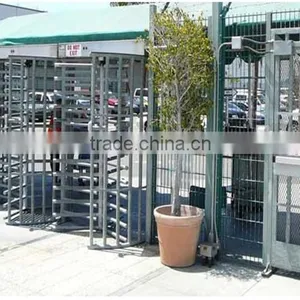

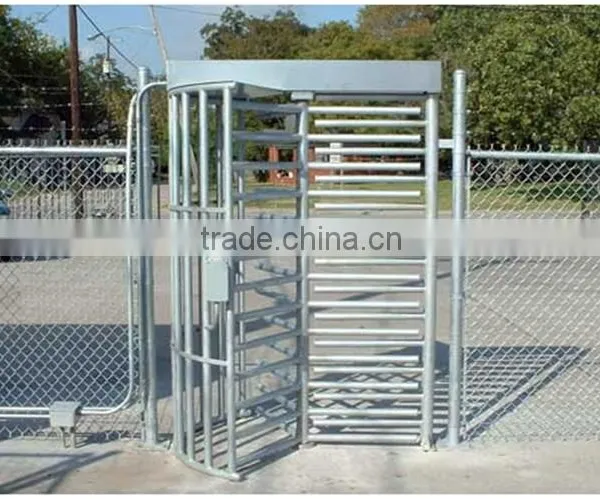

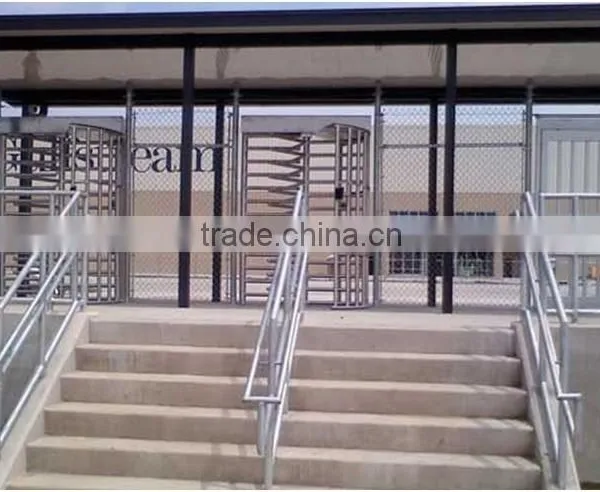

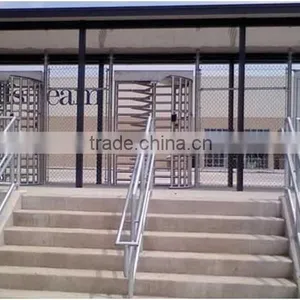

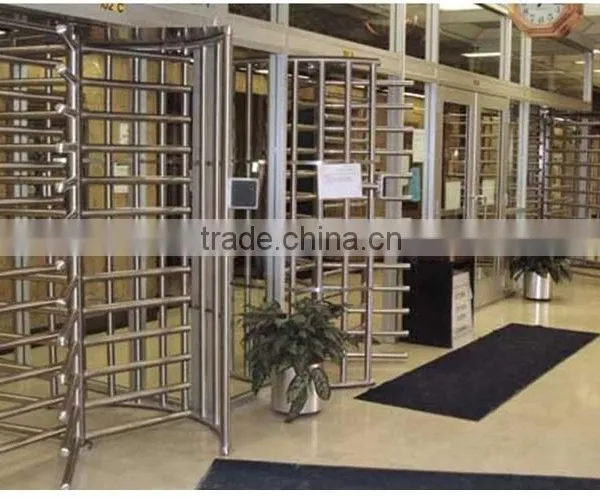

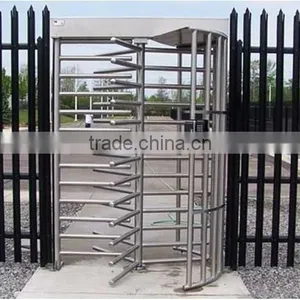

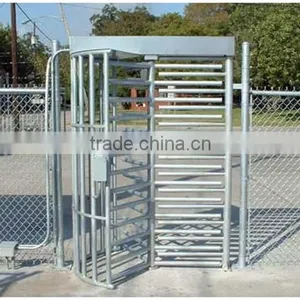

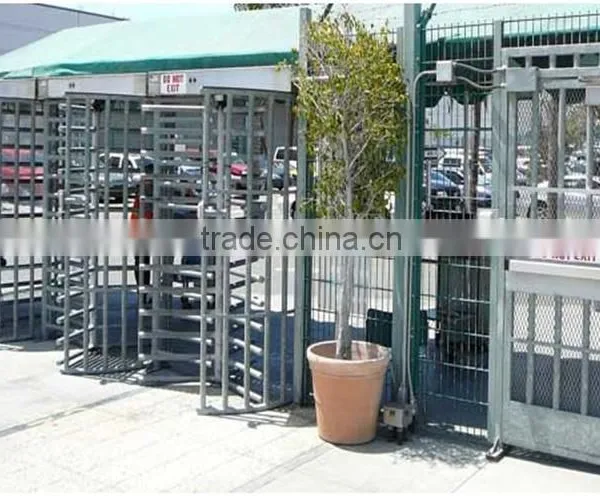

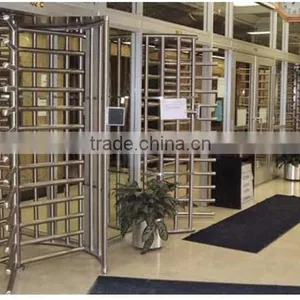

High quality security full height turnstile

The FH is Chinese most specified and purchased full height turnstile. The FH is suitable for indoor or outdoor use and easily integrates with virtually any access control system.

The FH turnstile is known for its superior strength and reliability. Our rotating section and barriers are single welded assemblies, not individual parts or assemblies that must be bolted together. The turnstile has a splined connection between the Top Channel and the rotating section, which provides a tight mechanically sound connection that minimizes "play". Our full height turnstiles also utilize high quality bearings, stainless steel internal components and industrial grade electronics to provide years of trouble free service.

Electrically controlled turnstile models integrate with any access control system.

Available finishes are stainless steel, galvanized, powder coated and powder coated over galvanized.

Features

• Suitable for indoor or outdoor use
• Rotating section smoothly self-centers to the home position after every rotation
• Turnstile is made from welded assemblies, not bolted together components
• Easy to assemble
• High quality bearings and internal stainless steel cast components
• Splined connection between Top Channel and rotating section
• Easily integrates with any access control system
• Adjustable duration auto relocking if no passage after activation
• Manual key locks to unlock one or both turnstile rotation directions
• All finish types have stainless steel Top Channel covers
• Bearing covers hide exposed bolts
• Fail-lock entry / fail-safe exit; alternate configurations available

Options

• Integration of any size card reader
• Padded arm/heel protective sleeves
• A red / green or yellow / green / red array (user selectable) provides visual notification of turnstile and access system status
• Turnstile status lights - visual notification whether turnstile is open or closed to users
• Galvanized, powder coat, stainless steel, or powder coat over galvanized or stainless steel finishes
• Battery backup
• Additional channel weatherization and / or control board encasing
• Lock arm monitor (provides signal when lock arm(s) engaged)
• Out of service lock bracket (capability to padlock turnstile if out of service)
• Channel cover monitor (provides signal when channel cover removed)
• Remote key override
• Activation signal via serial communication (serial communication interface)
• Modular Access Control Portal Integration

Technical Specs

• Height: 2324mm
• Width: 1582mm
• Depth: 1374 mm
• Product Weight: 250kg
• Shipping Weight: 330kg
• Transformer: 220/110VAC, 50-60Hz.
• Power Requirements: Max power consumption is 65W per turnstile with all available electrical options.
• Operational Voltage: 24VDC/5VDC operation.
• Power Receptacles: The power junction box inside the FH Top Channel includes two 220/110VAC power receptacles providing a convenient way for installers or technicians to power tools or equipment used during installation and maintenance.
• Surge Protection: The turnstile controller uses a ceramic varistor for transient voltage suppression up to 80amps for low voltage AC inputs. Control signal lines are protected by bi-directional transient voltage suppression diodes up to 600W per input. This combination provides superior lightning and surge protection.
• Bi-directional Solenoid Drivers: The turnstile controller provides one solenoid driver per rotation direction.
• Operation Temperature: -20F to 150F (-29C to 66C)
• Storage Temperature: -30F to 160F (-34C to 71C)
• Relative Humidity: 0-90% (non-condensing)
