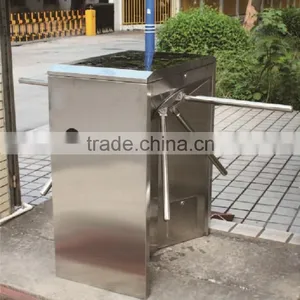

The Tripod Turnstile is a compact, cost-effective entrance solution with low power consumption and high reliability. Choose from standard versions or custom-design a solution. Suitable for internal or external use in areas where there is a large and constant flow of people.
Main Features
l High flow rate – 40 people per minute
l For internal or external use
l Bi-directional passage
l Choice of static fixed arm or drop arm when power off
l Emergency setting to allow for safe evacuation
l Stainless steel construction with a choice of finishes
Materials
l Casework: Stainless steel 304# 1.5mm
l Windows of Led and card reader: Acrylic 6mm thickness

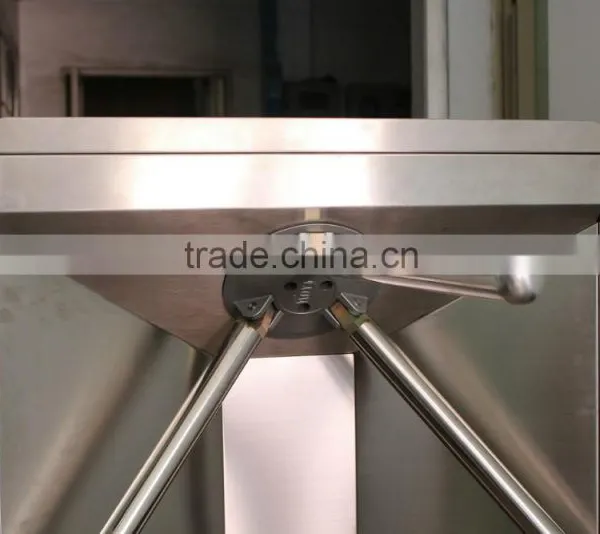

l Tripod hub: Cast aluminum with painted grey finish
l Tripod arms: Stainless steel Ø38mm tube with 1.5mm thickness
Mechanism
l Positive locking action for one passage at a time
l Self-centering mechanism to ensure complete rotation
l Hydraulic damper to ensure smooth operation
l Anti-backup device to prevent reverse rotation once the mechanism has moved 60° from home
Power Failure/Fire Alarm
l Either one or both directions can be fail-safe (standard), i.e. rotates freely, or fail lock, i.e. locks in the home position.
l Fire alarm – emergency input. Input facility available for free voltage contact to effect fail state.
l Mechanism fail state will be the same as power failure choice.
l Drop arm option: the horizontal arm drops to create a clear passage for evacuation.
Interface
l microprocessor control logic
l One input for opening/locking in each direction
l Two protected outputs controlling opening/locking
l Four protected outputs piloting way mode indicators
l Two protected outputs counting passage in ether directions
l Two 0V output relays indicating availability of use or counting passage in either direction
l NPN Two open collector NPN outputs to count passage or to indicate availability of use in either direction or activate the optional drop arm feature
l Serial Port – RS485
Power Supply/Power Rating
l Transformer: 110-240VAC, 60Hz
l Power Requirements: 75W
l Operational Voltage: 24VDC
l Flow Rates (approximate figures): 30/min
Options
l Card reader mounting
l Remote control
l Push button control
l 1D/2D bar code scanner
l Portable base plates
l Configurate and administrate over TCP/IP network
l 110-240VAC input
l Key resettable counters installed in lid
l Serial communication interface
l Colorful stainless steel
l LCD counter
Applications
l Government
l Supermaket
l Finance
l Telecommunications
l IT
l Banking
l Publishing
l Leisure
l Petrochemical
l Education
Features
l Suitable for indoor or outdoor use
l Self-centering arm rotation
l Easily integrates with any access control system
l Adjustable duration auto relocking if no passage after activation

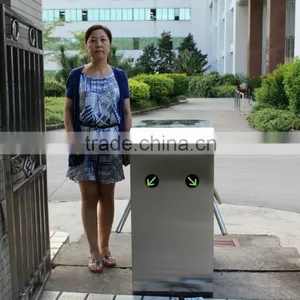

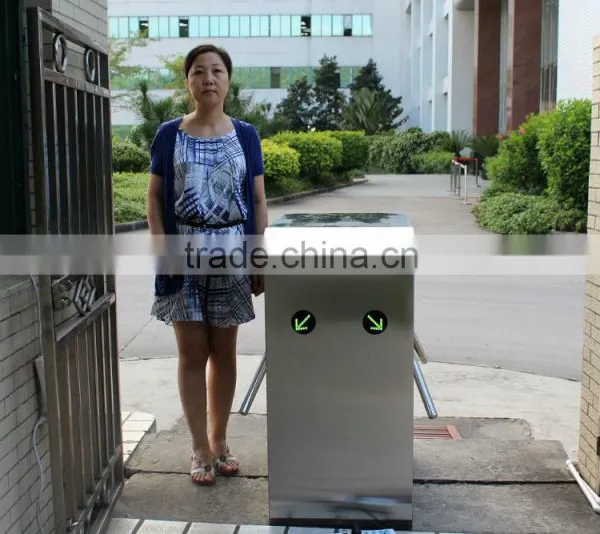

l Red/green 3 LED activation lights
l Drop arm when power failure of emergency
l No exposed bolts or fasteners
l Stainless steel internal components
l Card reader integration / reader installed under lid
l Manual key locks to lock or allow rotation for either rotation direction
l Timed delay auto relock*
l Turnstile rotation count output / feedback signal
Technical Specs
l Size L800×W250×H1000mm
l Product net Weight 90kg
l Transformer: 220VAC, 60 Hz.
l Power Requirements: Max power consumption is 75W.
l Operational Voltage: 24VDC
l Surge Protection: A 2.5 amp fuse is installed in each master cabinet.
l Operating Temperature:-29°C to 66°C
l Storage Temperature:-30°C to 71°C
l Relative Humidity: 0-90% (non condensing)
