Heating Cable mat, Snow melting, Anti freeze, Floor Heating SH KOREA SHM-2P-80

SH KOREA is the industry leader of eco-friendly and high efficiency heating system and is committed to manufacturing high efficiency heating films and heating cables. As the oil price is continuously rising and global warming is getting worse, the demand for eco-friendly and high efficient heating system has risen higher than ever. SH KOREA’s heating system is the key.  Our heating system is powered by electricity. Pollution and high heating cost is lower than any other heating system.

Our heating system, Hot Cable, is relatively new system to western world – floor heating. Unlike air heater, Hot Cable floor heating system heats up floor.  With radiated heat, the floor gets warm and eventually entire room gets warm.  The air doesn’t get dry.  Since heat tends to spread upward, with our system, entire room gets warmed up. Conventional air heating system will only heat up upper air.

Hot cable is developed with precisely calculated resistant value per cable length.  Three layer coating keeps the heating wire and safe and firm.  With superb and robust structure, Hot Cable can be installed at any places.  Safe and prolonged heating pleasure is guaranteed with our Hot Cable.

The Superiority of “HOT-CABLE” - Mat

 1.    “Hot-Cable” is with SAFE structure.

Covered with three layer top quality covering materials, “Hot-Cable” is safe from overheating and electromagnetic fields.

TEFLON which can withstand heat up to 200℃serves as the primary insulation, covering the heating wire.  Then, tin plated braided around TEFLON coating for electromagnetic field shielding.  The PVC sheath covers the braid shield.  The PVC is flame retardant and withstand heat up to 105℃.

  2.    “Hot Cable” is efficient and economic

“Hot-Cable” is easy to install.  “Hot Cable” is powered by electricity.  Such easy and convenient power source saves time and money. Hot Cable’s robust structure makes the Cable virtually semi-permanent.  Unless you decide to tear down the building, the Cable is there to heat up wherever you want.

Also, with “Hot-Cable”, partial and individual heating is possible.  You don’t have to heat up entire room to heat up the partial space you want.

Heat up only places that you want to heat up. With Hot Cable, it is possible.

Save Energy and Money.

  3.    “Hot-Cable” is eco-friendly

No dust.

No smoke.

No pollution.

“Hot-Cable” heating system is clean and eco-friendly heating system.  “Hot-Cable” is a wonderful replacement for conventional gas or oil operated heating system.

  4.    “Hot Cable” – Mat type is easy to Install

Just clean and flatten surfaces.

Install the insulation pad.

Unroll the Hot Cable on the insulation pad.

If you need to change direction, just cut the wire mesh and turn 180 degrees.

Finish with any finishing material you want and Done!

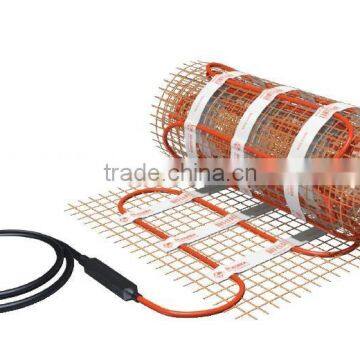

Hot Cable Mat type has fiber glass mat built in.  There is no need to install the mesh and fix the cable on the mesh.

Technological Advantage of “Hot-Cable”

  1.    “Hot-Cable” is with Robust Structure

Not many companies use TEFLON for initial insulation though it is safer.  Hot-Cable is with the industry’s top quality TEFLON for its primary insulation as SAFETY is our top concern, not profit.

      1)     Nichrome(Ni-Cr) alloy 2P heating element

      2)     Teflon primary insulation

      3)     Tinned copper braid

      4)     PVC out sheath(heat resistant 105℃)

  2.    “Hot-Cable” is Patented!

Specification - Various types to meet your needs!

“Hot-Cable” comes in various sizes and specifications to meet your needs.

* Width: 50cm, Maximum temperature: 75℃ (normal temperature), Maximum exposure temp.: 105℃, AC110V- OEM production

Developed and Made in Korea

We have dedicated teams for research, engineering and production.  Our government recognized lab never stops on developing better heating system.  Our engineers are always at our factory to produce state of the art heating materials.  From initial design to acquiring raw materials, from setting up production to shipping, every process is done in Korea - the home of floor heating system.

Packing

Hot Cable is packed as roll in a box per specified sizes.
