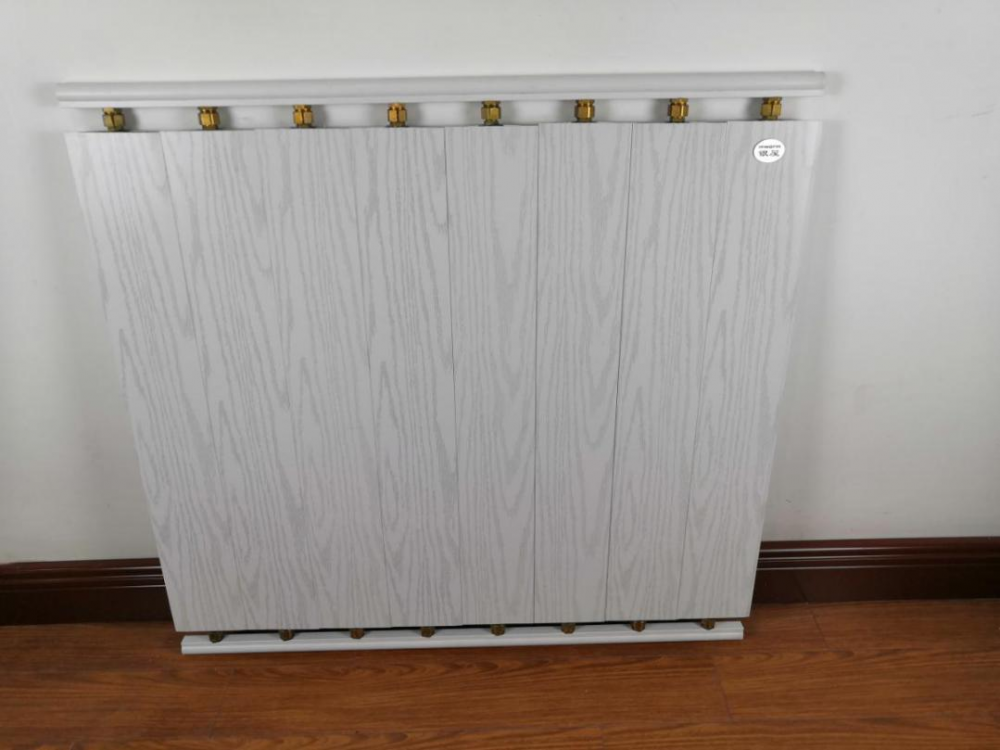

Ultra thin wall panel radiator with thermal radiation for non dust and non smoke wall aluminum alloy heating radiator

Ultra thin wall panel radiators have three major functions: heating, decoration, and wall protection, integrating heating, decoration, and wall protection into one.

Function 1: Heating. Ultra thin wall panel radiators are a new type of heating method that quickly heats up, saves energy, and is environmentally friendly. They almost eliminate all the shortcomings of traditional radiators and are an ideal heating method;

Function 2: Decoration, ultra-thin wall panel radiators are designed to be very thin, integrating heating into decoration, combining heating and decoration. If the color chosen is the same white as the wall, the appearance will look like the wall. If the color chosen is the same as the floor or furniture color, the appearance will look like a decorative wall panel, which has a good decorative effect while heating, solving the pain point of the contradiction between traditional radiator heating and decoration;

Function 3: Protect the wall. The ultra-thin wall panel radiator can be installed like a decorative wall panel to protect the wall. Its aluminum alloy material outer surface is treated with spray molding, which is not easily affected by moisture and deformation. It is also very clean and hygienic. If the outer surface is dirty, it can be wiped with a damp cloth.

The installation method of ultra-thin wall panel radiators is the same as traditional radiators. Generally, unfinished houses adopt an octopus style concealed installation system, with heating pipes embedded under the floor. Renovated houses adopt a double pipe parallel heating system, with heating pipes arranged on the wall. Therefore, as long as traditional radiators are installed, ultra-thin wall panel radiators will be installed.

Ultra thin wall panel radiators are another invention by Hefei Hengnuan HVAC Equipment Co., Ltd. that has revolutionized the heating industry after inventing baseboard radiators.

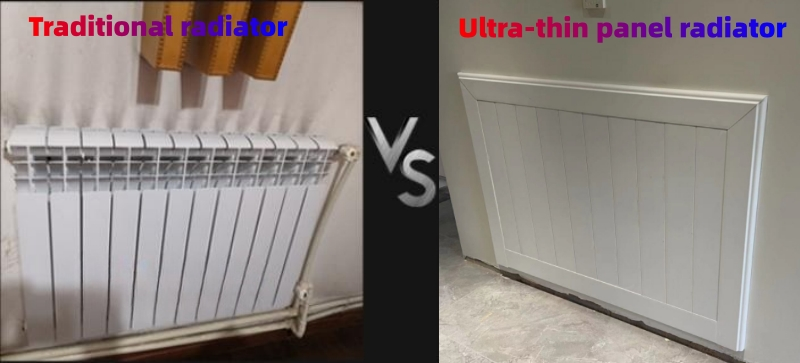

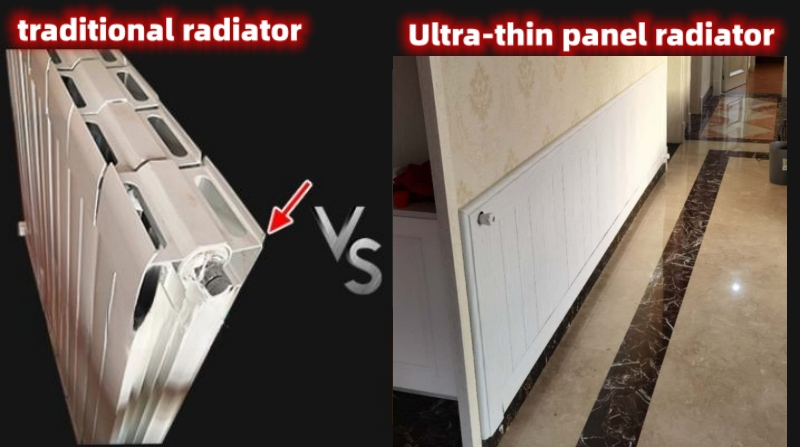

The invention of ultra-thin wall panel radiators has changed the defects of traditional radiators that occupy indoor space, are not beautiful, affect the overall effect of decoration, blacken walls and sharp edges and corners are easy to hurt children, and organically integrated the decorative functions of heating and wall panels, creating a new world of decorative heating!

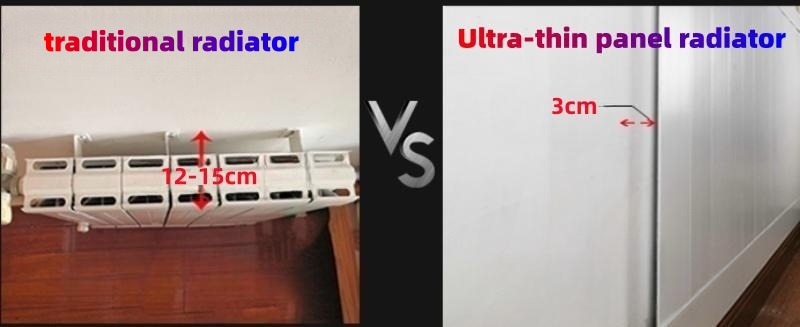

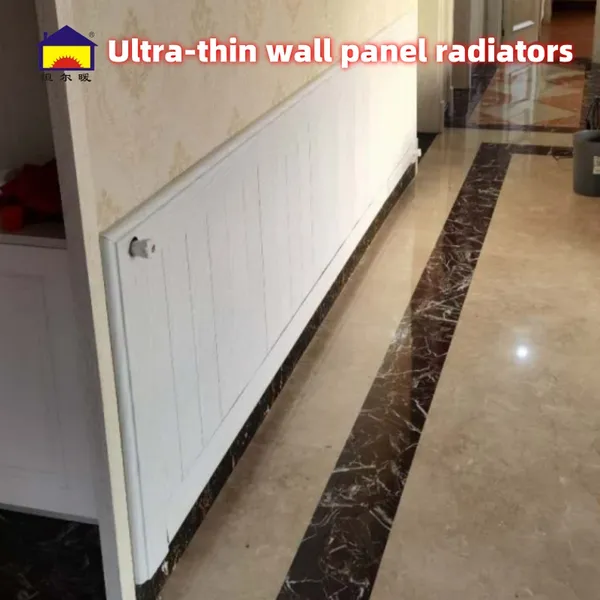

The thickness of the ultra-thin wall panel radiator is only 3cm, which does not protrude significantly from the wall, does not occupy indoor space, and does not hinder family activities.

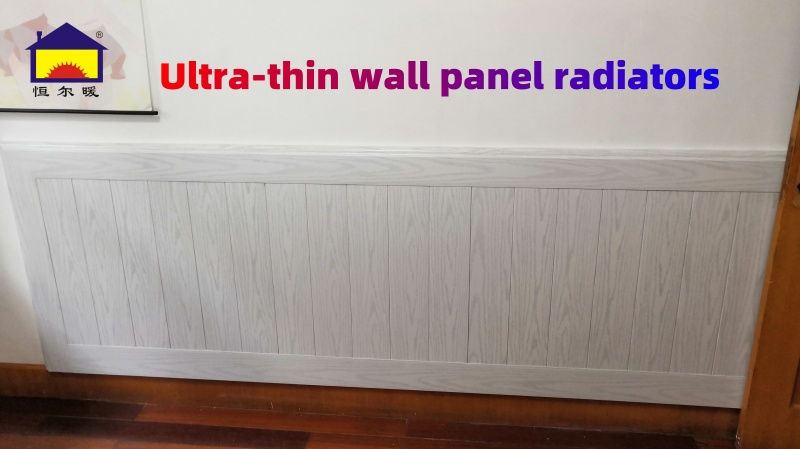

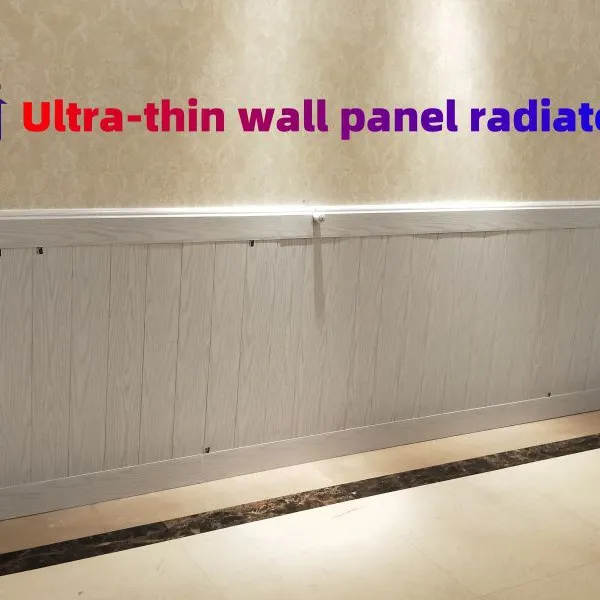

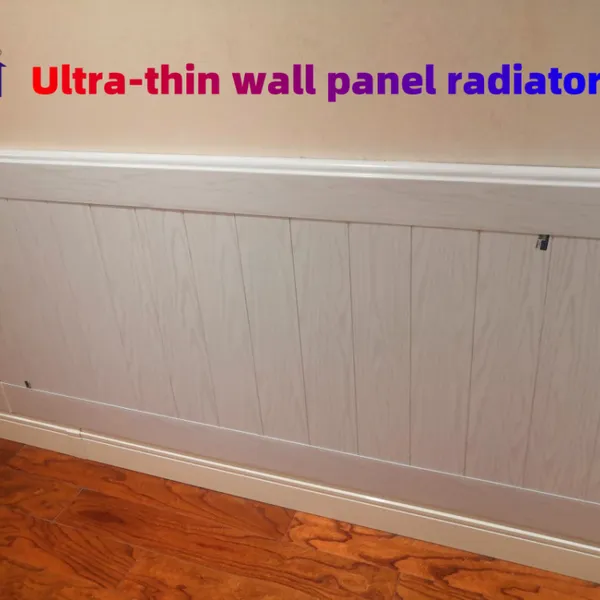

Ultra thin wall panel radiators are installed tightly against the wall, and if white is chosen, they blend seamlessly with the white wall; You can also choose solid wood grain colors. When used as wall decorative panels, heating is integrated into the wall decoration, making it impossible to see unsightly heating equipment in the home and protecting the wall from contamination.

The ultra-thin wall panel radiator is made of aluminum alloy material with extremely fast heat dissipation, which provides true thermal radiation heating. It heats up quickly and can be turned off when there is no one at home, which is significantly more energy-efficient than traditional radiators and underfloor heating.

The ultra-thin design of the wall panel radiator, installed closely against the wall, does not hinder children's activities, has no sharp edges on the surface, and will not harm children. It is an ideal heating method for families with children and kindergarten schools.

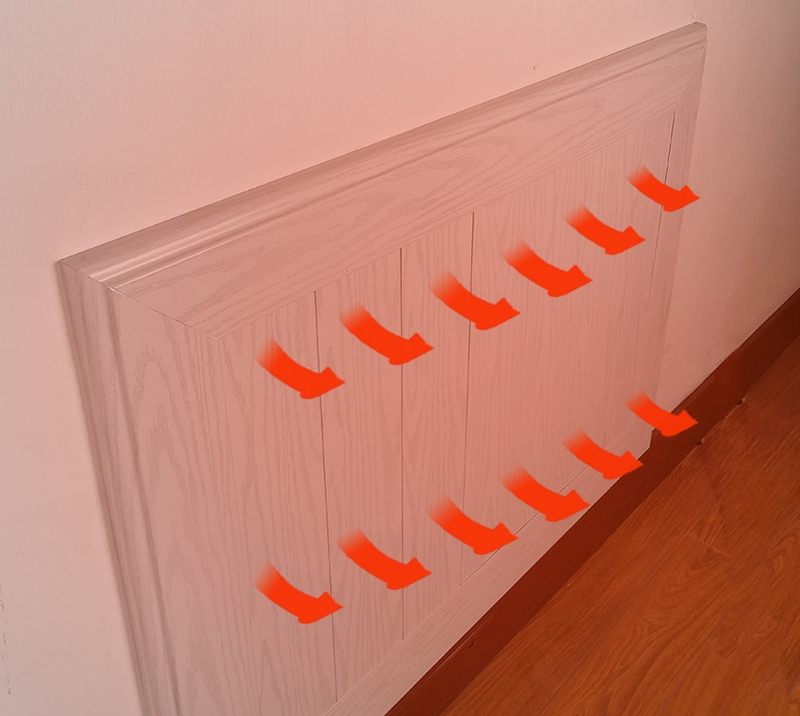

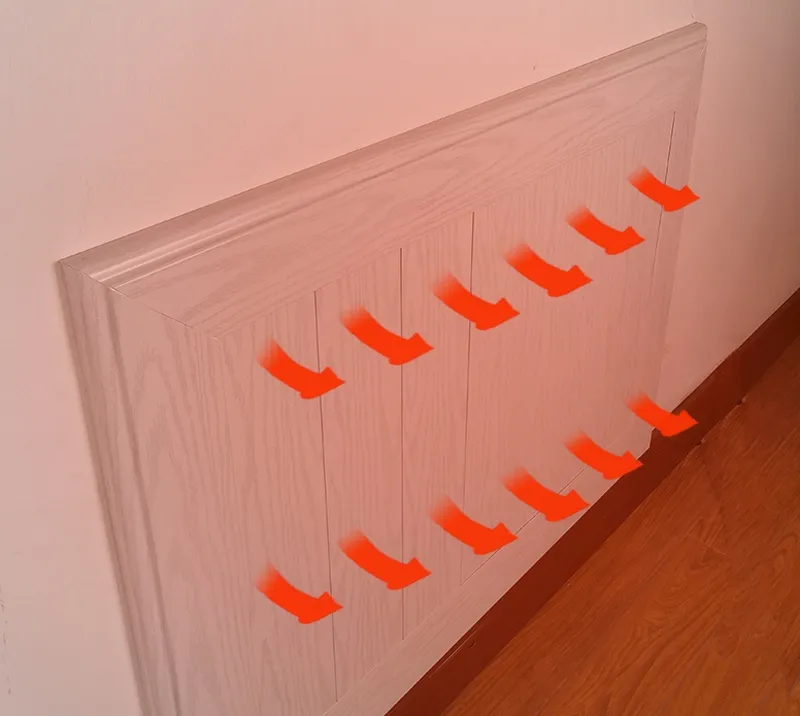

Ultra thin wall panel radiators are installed tightly against the wall, with no convection holes left at the top and bottom, providing forward heat radiation for heating. They do not produce chimney effects, do not raise dust, and do not darken the wall like traditional radiators.

Advantage 6: Durable and can have the same lifespan as buildings.

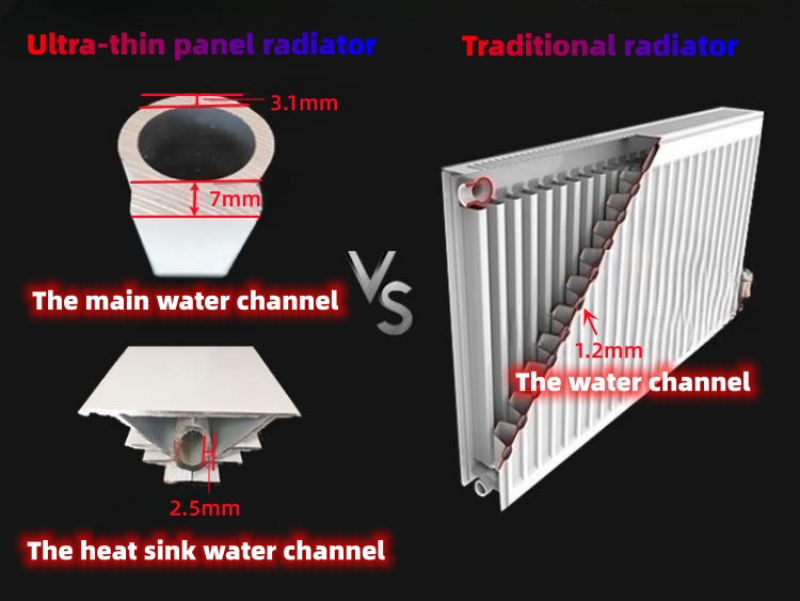

The main pipe wall thickness of ultra-thin wall panel radiators is 3.1-7mm, and the wall thickness of the heat sink water channel is 2.5mm, which is twice that of traditional radiators. In addition, HPB58-3 brass union connection is used between the main pipe and the heat sink pipe, without fragile welding points. As long as the system water quality meets the requirements of aluminum radiators, it can be used for a long time without worrying about water leakage.

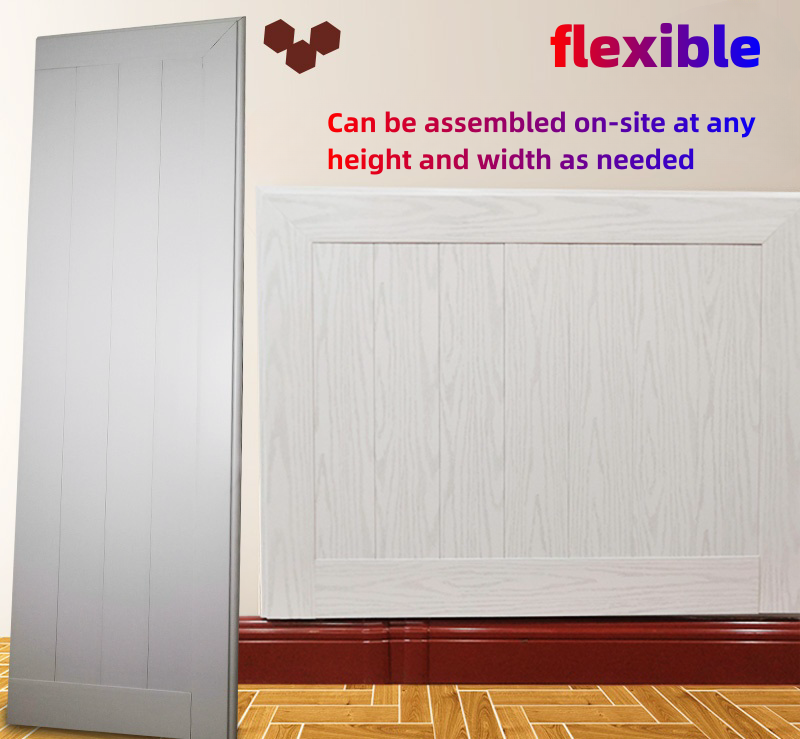

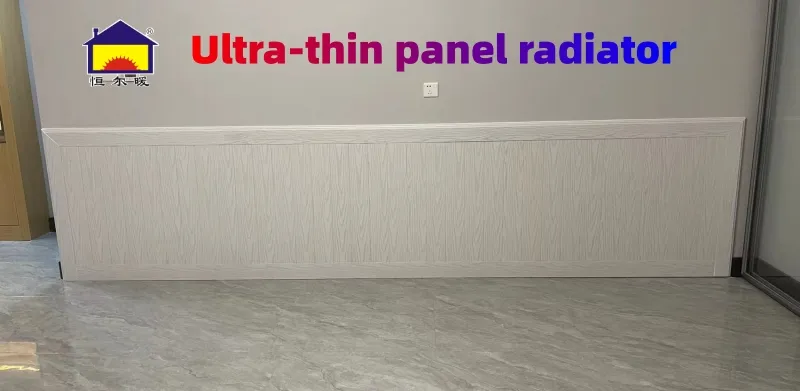

Traditional radiators are already formed before leaving the factory, and it is not possible to increase or decrease the number and height of radiators on site; Ultra thin wall panel radiators can be cut and assembled at any height and number of pieces on site as needed. They can be installed as needed, either locally or as a whole wall like solid wood wall panels.

When repairing ultra-thin wall panel radiators, simply use a wrench to loosen the copper union between the main pipe and the heat sink, remove the damaged heat sink, and replace it with a new one. Users can operate it themselves, avoiding the huge waste of replacing the entire set.

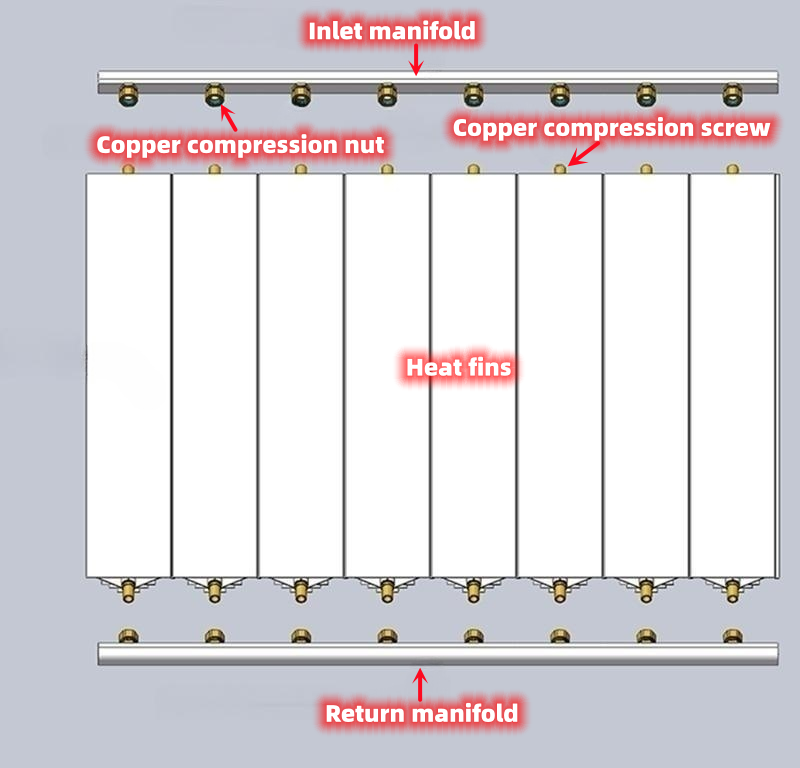

According to the customer's requirements, the factory first cuts the length and number of heat sinks, and pre assembles each heat sink and the copper accessories of the upper and lower main pipes. The loose pieces are packaged and transported to the site to avoid defects that are easily damaged during transportation due to large volume.

Users only need to insert the copper union screws on both ends of the heat sink into the copper union nuts of the upper and lower main pipes on site, and tighten them with a wrench to assemble them.

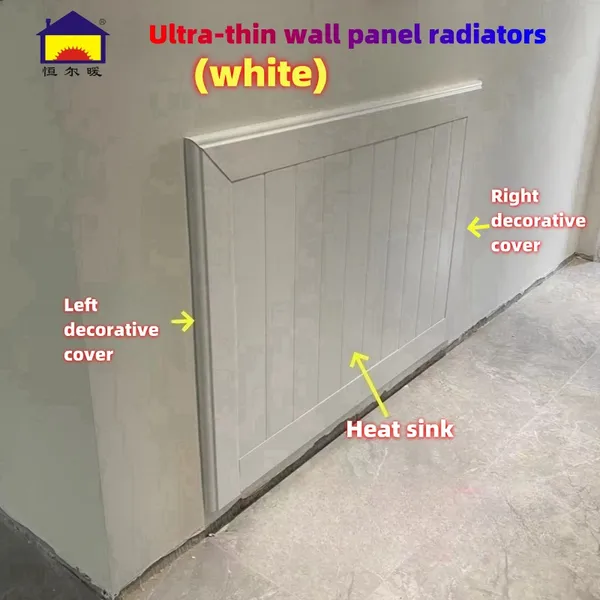

If the order quantity is large, the heat sink, main pipe, and side decorative cover can be shipped as a whole without cutting, and users can cut, tap, and assemble them on site according to their needs.
