Corrugated Double Wall Paper Cup Machine

Specifications

First Quality, Best Service.

We provide not only the products, but also the SOLUTION.

Corrugated sleeve Double Wall Paper Paper Cup Machine

Make a sleeve around the paper cup,  Speed 40~50 cups/minute.
Double wall paper cups prevent hand from scald by hot drinks.

Double Wall Paper Cup Machine Description:

• Double Wall Paper Cup Machine is a matching machine for paper cup machine,
• It makes a second wall/sleeve around paper cup/bowl (the finished products are named double wall paper cup, or sleeve paper cup).
• It makes double wall paper cup/bowl after running a whole procedure of :
• Automatic sleeve-paper (fan-sleeve) feeding,
• Sleeve-cone-body welding (by ultrasonic wave),
• Cone-sleeve bottom folding (for hollow-style sleeve cups only),
• Water-glue(POLYVINYL ACETATE EMULSION) spraying (spray glue inside the cone-sleeve),
• Cup/bowl feeding (absorb/suck white-cup into the cone-sleeve),
• Inserting and bonding sleeve to the cup,
• Collecting, and with the function of photo electric detection, fault alarm, and count.

Double Wall Paper Cup Machine Technical Specification:

• Paper Cup Size: 5oz~16oz cup; 20oz~50oz bowl (mold exchangeable)
• Raw Material: PE coated paper,
• Gloss printed paper (gray based paper with gloss printing),
• other film coated paper (can be welded by ultrasonic)
• Suitable paper weight: 170~450gsm
• Rated Speed: 40~50 cups/minute
• Power Source: 220V/380V 50Hz, (Better use 380V 3-phase), if your power is different, Please info us in advance.
• Total Power: 4KW
• Total Weight: 1000KG
• Pack Size (L*W*H) 2500 x 1250 x 2000 mm
• Working Air Source: Air pressure: 0.3 MPa ; Air Out-put: 0.6 m³/minute; Need to buy Air Compressor
• Sleeve Side Welding: Ultrasonic
• Sleeve and Cup bonding: Water-glue (POLYVINYL ACETATE EMULSION)

Supply Paper cup making line 1 :

• 1, PE film coated paper ;
• 2, Roll Flexo Printing Machine, Offset paper cup blank printing machine;
• 3, Roll Paper Cup Die Cutting Machine ;
• 4, Paper Cup Forming machine ;
• 5, Automatic Cup packing machine
• 6, Cup Plastic Lid Forming Machine

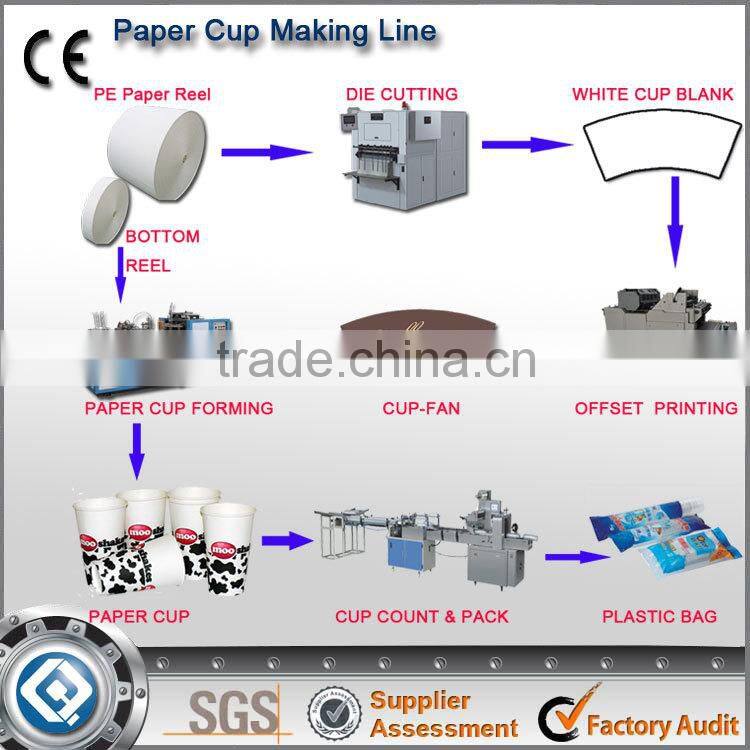

Paper cup making line

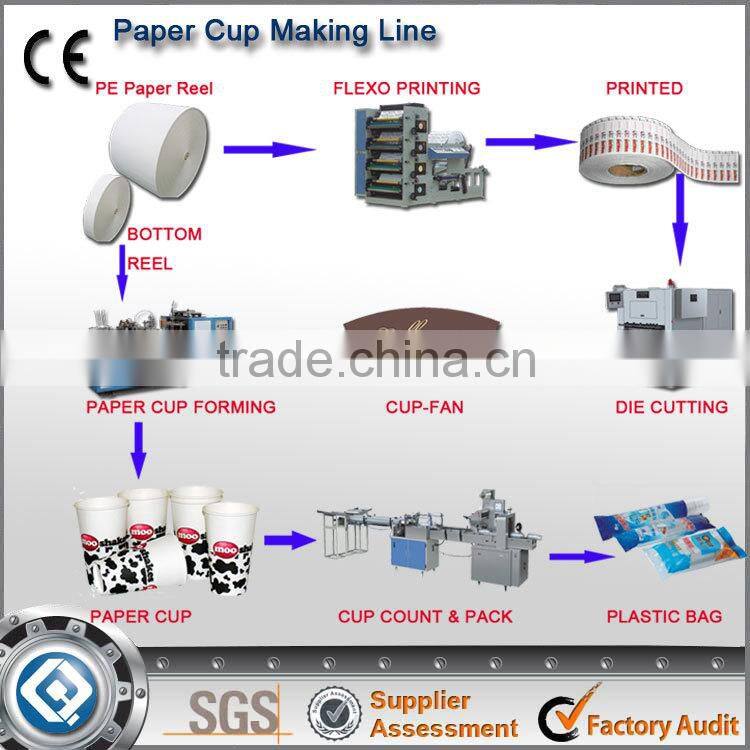

Paper cup making line 2
