WT-A30 paper coffee cup sleeve

Specifications

1:The paper coffee cup sleeve forming machine is automatic.
2:The paper coffee cup sleeve forming machine is of high speed.

Welcome to Wenzhou Qichen Industry & Trade Co.,Ltd. Hope the details can help you to know more about our pouch packing machine.



 Quality and the after sell service is our aim: we do not sell the prodcuts but solutions.We believe that you will be satisfied with both our products and service.



WT-A30 Ultrasonic Paper Cup Sleeve Ripple Forming Machine









WT-A30 Ultrasonic Paper Cup Sleeve Ripple Forming Machine is designed against the market requirement, it is a matching machine of paper cup machine and paper bowl machine. It is used to make a sleeve around the paper cup/ bowl. It produces double-wall paper cup/ bowl after running a whole procedure of automatic paper (fan-sleeve) feeding, sleeve cone body sealing (ultrasonic),glue spaying ( spay glue on the cone-sleeve), cup feeding  ( absorb cup into the cone-sleeve), inserting and bonding sleeve to the cup, auto discharging, with the functions of photo electric detection, fault alarm and count.



It is an ideal equipment of making double wall paper cups (sleeve paper cups), such as directly sleeve paper cup (ripple/ corrugated sleeve), hollow sleeve paper cup (sleeve bottom is folded),etc.



 Main technical parameters



product		WT-A30 Ultrasonic Paper Cup Sleeve Ripple Forming Machine
paper cup size		5-16oz cup, 20-50oz bowl(mould exchangeable)
raw material		170-450 g/m2 PE paper, varnishing printed paper
productivity		40-50 pieces per min
voltage		220V/380V/50HZ or other
total power		4KW
total weight		1000KG
package size		(L*W*H)2450*1200*2000mm
working air resource		air pressure:0.6Mpa
		air out-put:0.3m2/min
note		Available to make machine against your requirement



 The WT-A30 Ultrasonic Paper Cup Sleeve Ripple Forming Machine is used to make the sleeve around the paper cup and paper bowl. So when we put hot water in the paper cup and paper bowl, it will not be so hot to touch the paper cup/ bowl. So the sleeve can not only protect people from scalding, it also looks beautiful.

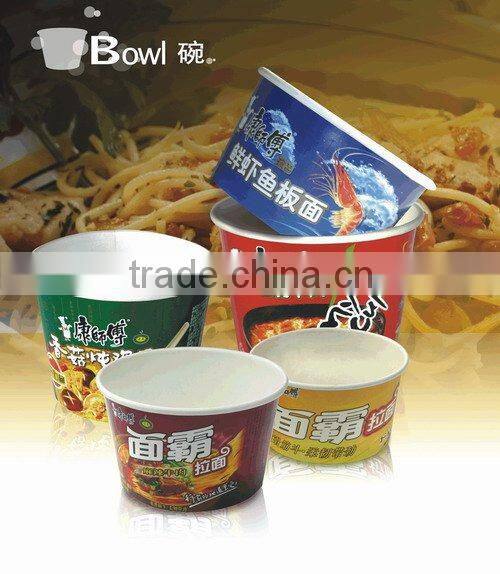

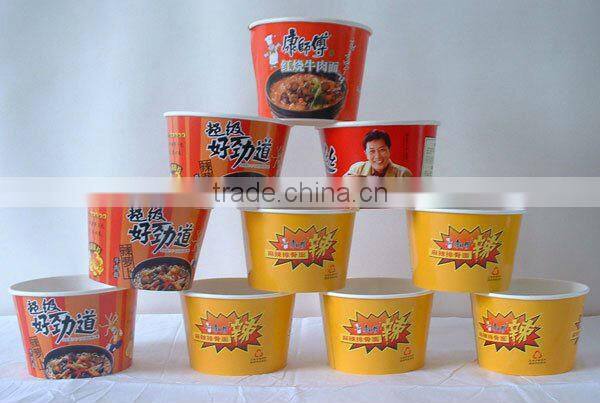

Samples produced by Ultrasonic Paper Cup Sleeve Ripple Forming Machine







 Our WT-A30 Ultrasonic Paper Cup Sleeve Ripple Forming Machine can make a sleeve around the paper cup/ bowl as the samples shown above. And the design can be different as you required.If you are interested in our machine, please do not hesitate to contact me.
