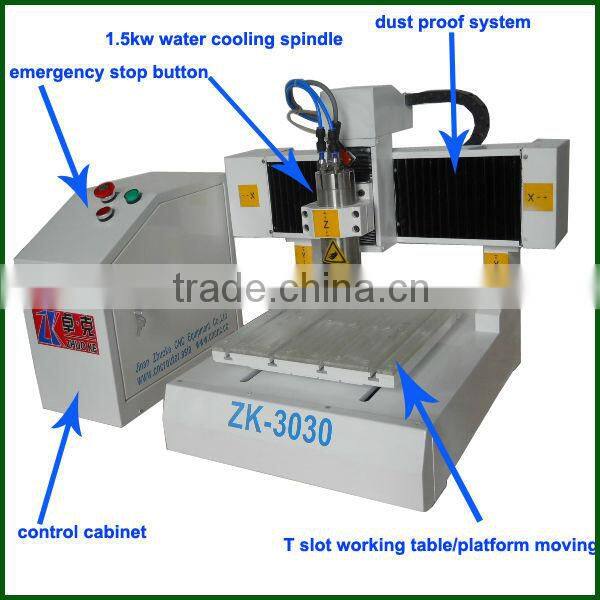

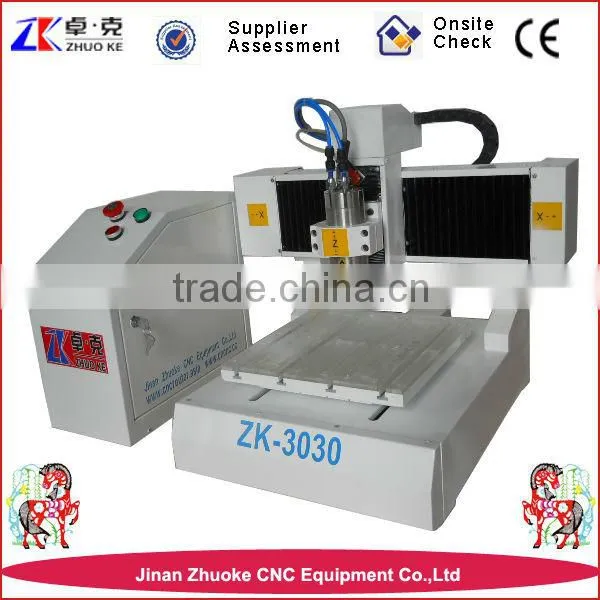

Mini PCB CNC Router ( Milling&Dring&Engraving) 300*300MM ZK-3030

 Hobby PCB Milling Machine Prototype Machine 300*300MM ZK-3030

Applicable Industries

To complete the production of single and double panel, to help students master the system board processes(cutting boards,carving,drilling,overhole plating). Provide a reliable platform for the training of the new technical

personnel according to factory.

Meet students’ electronic design, EDA practice, electronic design contest, course design, graduation design, innovative

 practices, such as integrated design, innovative experimental requirements.

Provide the necessary conditions for students independent learning, cooperative learning, research study. Strengthen

students’ practical and creative ability. To culture from students to train engineers via electronic products from the principles of

design,process design, prototype production of the whole process,while learning and master the mechanical process plate process.

Technical advantages

In order to shorten the research and design time and see results as soon as possible, research institutions, universities, electronics

companies can adopt Zhuoke series PCB engraving machine.The time of product design developed is very long if sent to the printed

version of plant production, small trial is high cost and temporary modification of the printed version is also very troublesome.The

printed version of the production of other methods are very cumbersome and the printed version is not standardized.

Zhuoke series highprecision circuit board engraving machine with drilling, carving, line isolation, width setting, the whole map

and designated areas engraving, milling and shaped holes and other functions, you can also use multiple combination of

carving knives way to prevent a board spending a few hours, it has high performance. It takes just 12 minutes to make a simple circuit board and also just about 20 minutes to produce a very complex circuit board. With environmental performance, using physical engraving, free corrosion, avoid environment pollution, it is the most powerful, cost-effective CNC engraving machine in the PCB engraving machine industry.

PCB single panel making process

Cut the circuit board into the desired size, or the size of the board has been cut well-- designed in accordance with the engraving machine circuit diagram punch--hole of the device will be used to lay the hole plated circuit board on the wall of the hole copper--plated finish vias on the circuit board for carving, create a route--complete good soldered directly to the circuit board components.

Technical parameters

Other models

ZK-4040, 400*400mm ,   ZK-6060, 600*600mm   ZK-6090, 600*900mm....

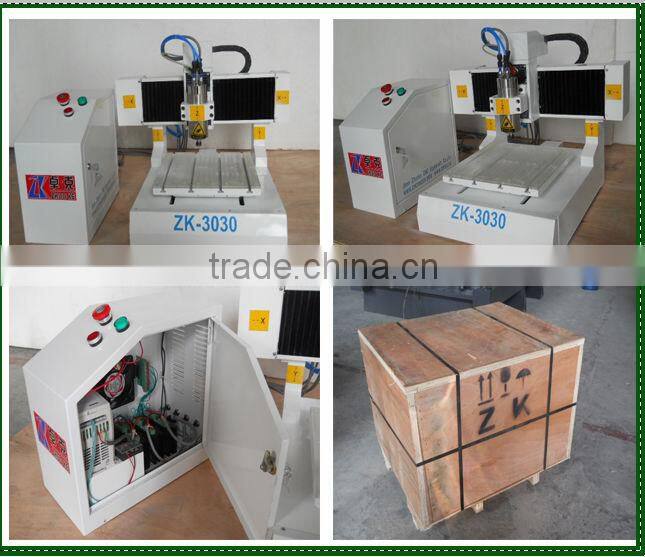

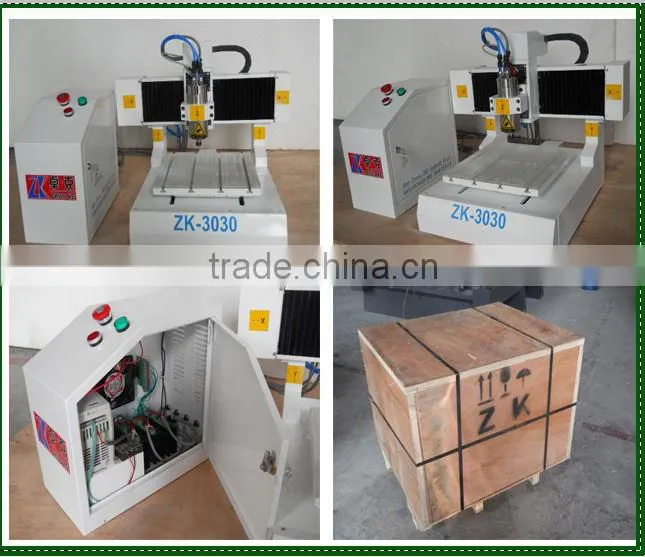

Packing: 0.6CBM, 96KG, one plywood case

Shipping: EXW/FOB/CIF/DDP/DDU... or according to your need

For a formal quotation, pls let us know:

You will use the cnc router for what kind of materials?

Engraving or cutting?

What size working area you need?

Main procedure for ordering the cnc router

1. Confirm the machine suitable configuration for you

2. We send you the proforma invoice with the final price, our bank information

3.You take the bank slip  to bank  to make the deposit

4. We start to produce the machine for you,  about 3-10 working days, after finished, will send you pictures and videos for checking

5. The ship departure, we send you the copy of bill of lading and other documents, if no problem, you pay us balance, we will send you all the documents.

Just feel free to contact us, I would like to send you more information& working videos ( Miss.Amiee Zhang)
