PCB CNC Milling Machine / PCB CNC Router ZK-4040
Main technical parameters:
Model |
ZK-4040 |
Model |
ZK-4040 |
XY-axis working size |
400*400mm |
Repeat accuracy |
0.025mm |
Z-axis working size |
40mm |
Drilling holes |
40-100/min |
Driving way |
Ball screw |
Command |
G code,u00,mmg,plt,HPGL |
Working panel |
Single/double-side board |
Compatible software |
PowerPCB, Protel99 |
Least step distance |
0.003125mm |
Software running environment |
WindowsXP |
Max. speed |
5000mm/min |
Spindle power |
1.5KW variable speed, water-cooled motor |
Working speed |
0-3000mm/min |
Spindle speed |
0-24000rpm/min |
Working accuracy |
6-8mil |
Driving mode |
Stepper motor |
Least line diameter and least line spacing : |
6-8mil |
Control system |
NCstudio/DSP |
Drilling depth |
0.02-3mm |
Power source |
AC220V 50Hz orAC110V 60HZ |
Available sizes ( or design according to your need)
Model |
Working area |
ZK-3030 |
300*300mm (800W/1.5KW spindle) |
ZK-4040 |
400*400mm (1.5KW spindle) |
ZK-5060 |
500*600mm (1.5KW spindle) |
ZK-6060 |
600*600mm (1.5KW spindel) |
Applicable Materials :
Maily used for PCB( printed circuit board) engraving,cutting,,illing and drilling
It also can work on the material as below:
1. Acrylic, organic glass, double color board, PVC, ABS, aluminum composite plate…
2. Wood, MDF…
3. Copper, aluminum, iron, steel, stainless steel, alloy, metal…
4. Stone, marble, granite, tombstone, jade engraving

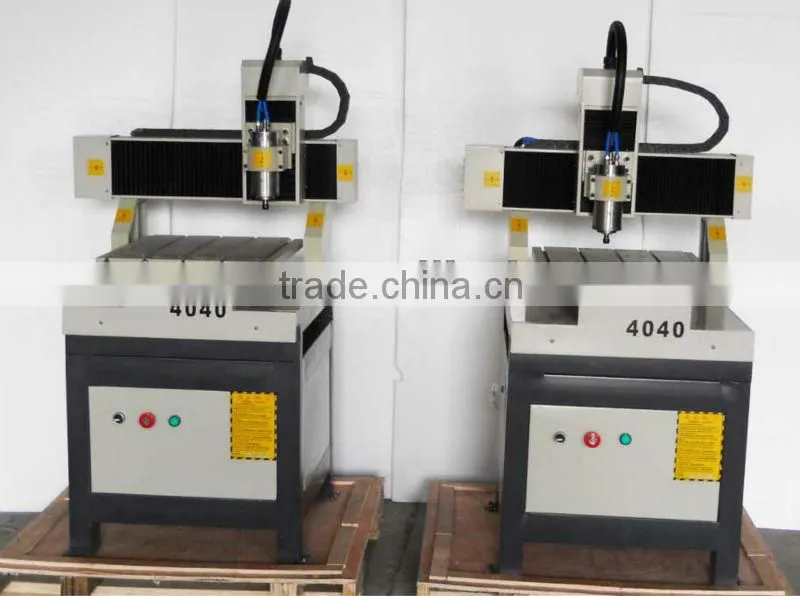

Reference machine pictures
ZK-4040 PCB CNC Router Machine Bed structure
1.5KW spindle power (water cooled )
cylinder guideway , ballscrew and PCB tools
step motor , and T slot working table
Protel 99 and CopperCAM
If you have any questions about our machine , just feel free to contact our company !
(Jinan ZhuoKe CNC Equipment Co.,LTD)
