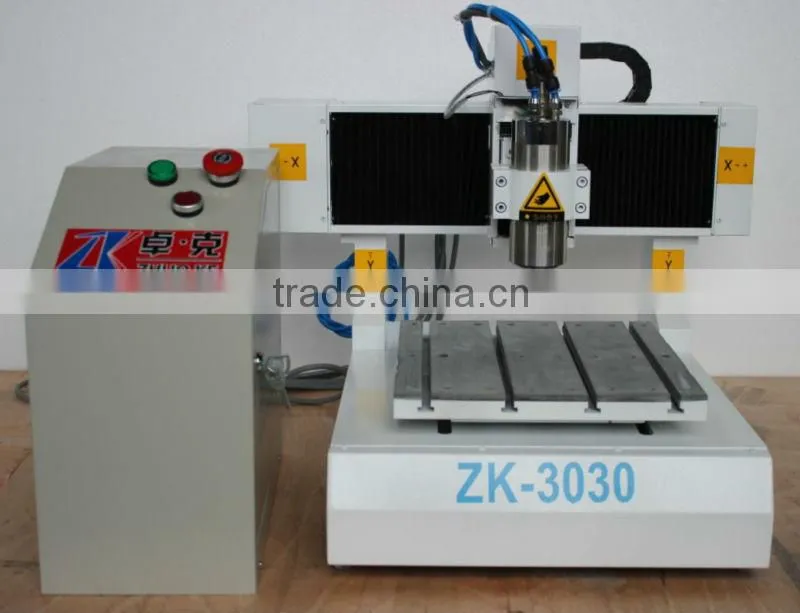

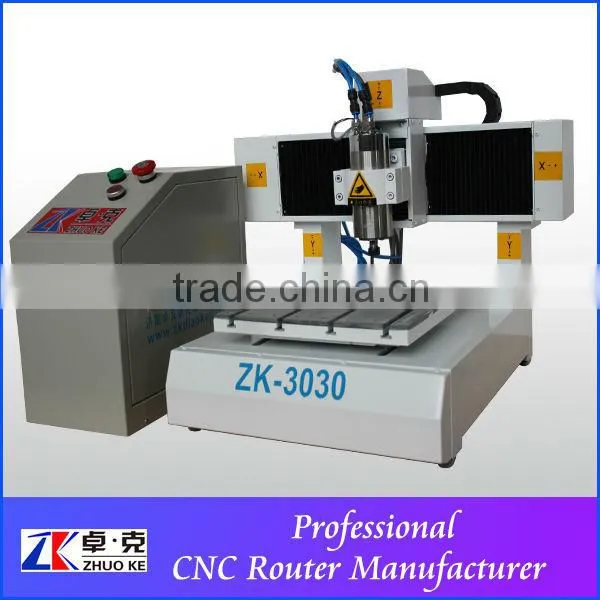

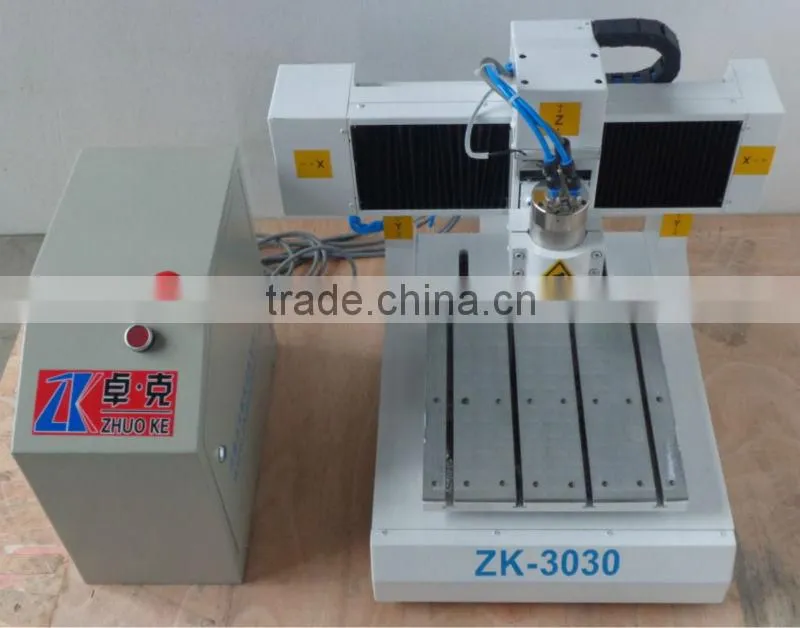

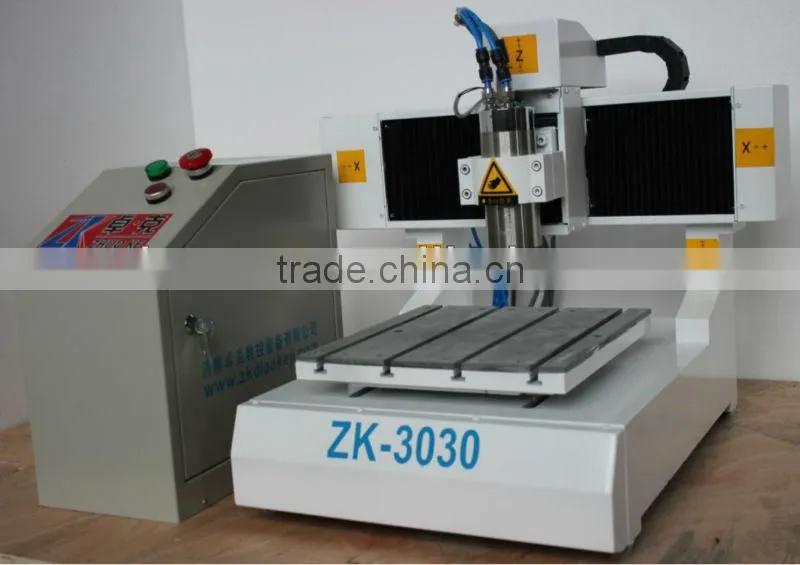

Mini CNC PCB Router ZK-3030 300*300MM
This ZK-3030 PCB CNC Router can also used for wood, advertising, metal!
PCB CNC Router machine introduction

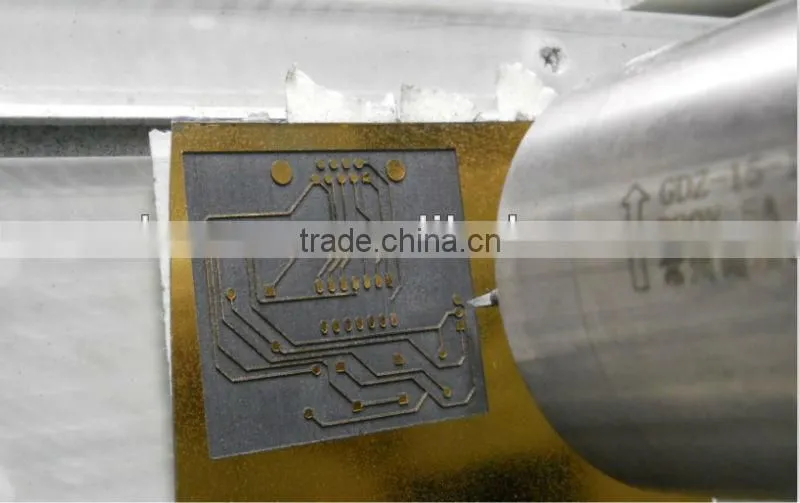

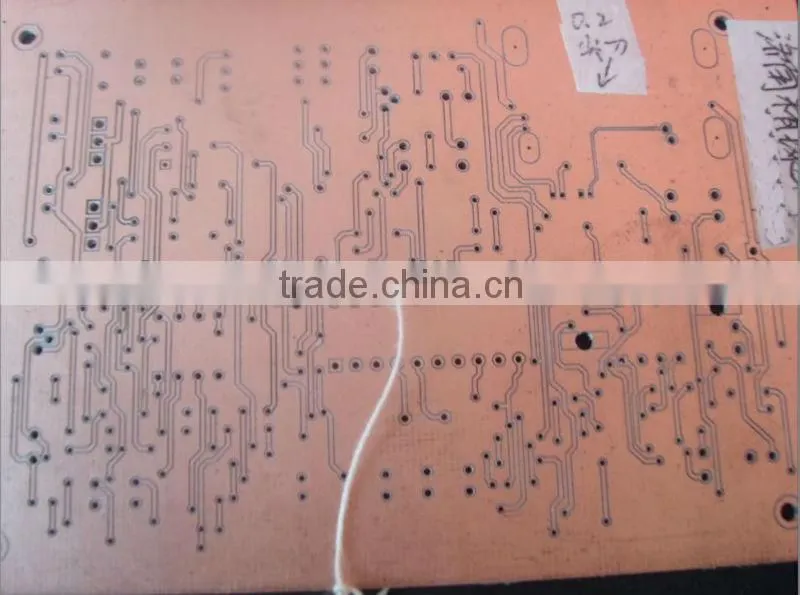

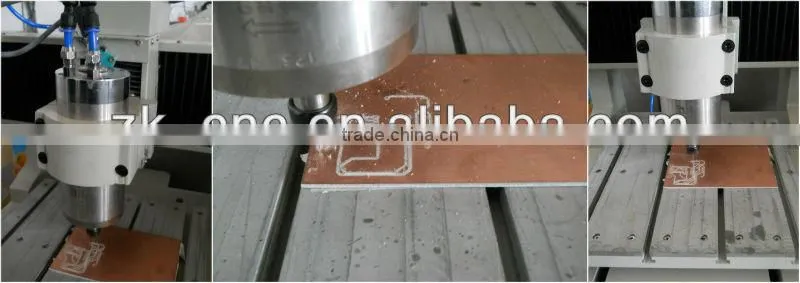

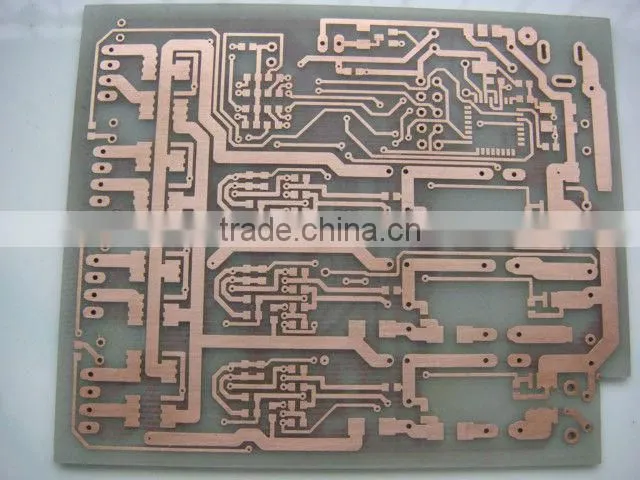

PCB cnc machines can quickly manufacture Printed circuit board samples, shorten the development time, and save the development cost, during the experiment, it has great security finishing the PCB samples .Our pcb cnc machine is portable , with small size , has all the function of PCB drilling, PCB milling ,the line sculpture, appearance cutting, the line width isolation set, engraving and cutting , breakpoint continuingly, edge milling and different hole drilling , and other functions. It is your best chose to make PCB samples. During the engraving process, the processing depth and speed is controlled by computer, no need by the manual adjustment and try again and again. Our PCB cnc machine is widely used in the colleges and universities electronic related, electronic development companies, military industry, office, government, and other fields
Machine advantage
1. The PCB machine can drill and mill double pcb panel, and drilling process is quite simple.
2. Drilling and milling speed can be adjustable, can engrave a relatively thin lines, and carving process can temporarily stop.
3. Has the breakpoint renewal carving and regional sculpture features.
4. During the carving process ,you can adjust the Z axis altitude, which can avoid not carving the circuit board because of substrate gravamen.
5. Has the function of milling plane, substrates in after many drilling and milling plane after carving can through to adjust the level of the substrate, and still can put the substrate to get rid of the holes, facilitate double panel orientation.
6. Spindle motor for 1.5KW high power water-cooled , long service life, work and more relaxed
7. Application software, machine adopted international general G code processing file so that many such as PowerPCB, such as Protel software, all can be used in the circuit design, more strong adaptability.
8. Our pcb machine can estimate the processing time, to avoid a long time of meaningless waiting
Technical parameters
Certificate |
CE |
|
Effective working area |
300(X)mm*300(Y)mm*80(Z)mm |
|
Max.thickness of the materials |
≤80mm(the distance between Z-axis and the bottom of the working station) |
|
Moving method |
Platform moving |
|
Material |
Whole cast aluminum |
|
Working table |
Aircraft aluminium T slot with PVC layer |
|
Guide rail |
Linear round guide rail |
|
Transmission |
Ball screw for X Y Z-axis (X Y Z-axis: #1605, TBI) |
|
Driving mode |
Stepper motor ( XYZ-axis: 57BYG-311) |
|
Spindle motor |
1.5KW water cooling |
|
Spindle collet type |
ER 11 |
|
Suitable cutter tools diameter |
3.175mm, 4mm, 6mm |
|
Voltage |
AC 220V 50/60Hz, single phase |
|
Spindle speed |
0-24000rpm/min |
|
Empty travelling speed |
0-8000mm/min |
|
Engraving speed |
0-6000mm/min |
|
Machine accuracy |
0.05mm |
|
Resetting accuracy |
0.05mm |
|
Diagonal error |
1mm |
|
Resolution ratio |
0.005mm |
|
Control system |

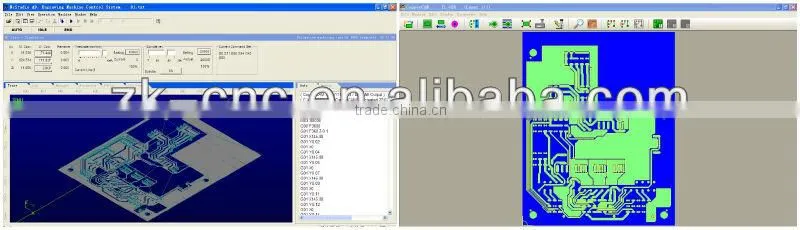

PCI NcStudio (for desktop computer, windows XP/2000) |
|
Designing software |
Protel 99, Copper CAM |
|
Minimum line diameter |
6-8mil |
|
Minimum line spacing |
8mil |
|
Minimum step distance |
0.003125mm |
|
Motor wire |
High soft specially for Numerical Control( 4*0.75) |
|
Spindle wire |
Shielding high soft (3*1.5) |
|
Carving Instructions |
G code *Uoo *mmg *plt HPGL |
|
Running environment temperature |
0-45 °C |
|
Relative humidity |
30%-75% |
|
Tools |
24 pieces, 10 pieces drilling tools, 10 pieces engraving tools, 3 pieces corn milling tools, 1 piece bottom clearance tools |
|
Accessories |

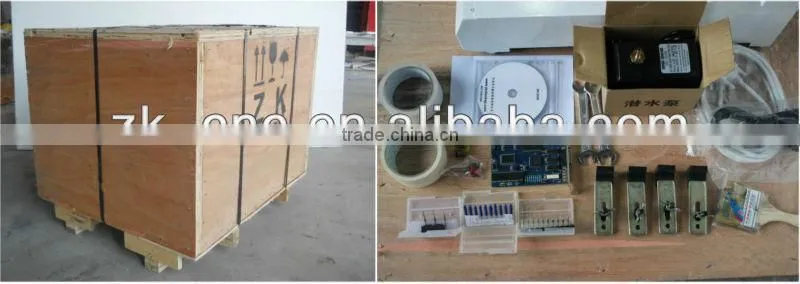

Water pump(1), tools (24), power line, USB line, fixtures(4), user manual, software CDs, Ncstudio card(1), spanners(2), brush,collets(3), double faced adhesive tapes (2), water tank(1),etc. |
|

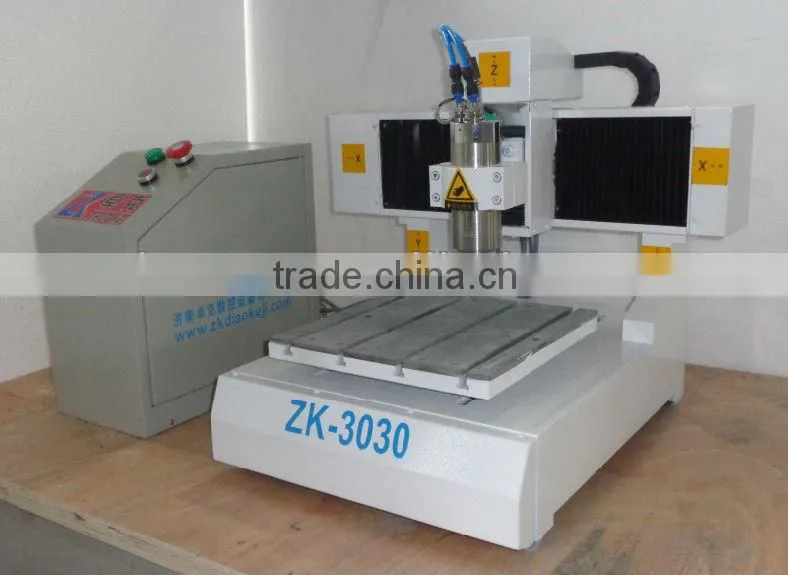

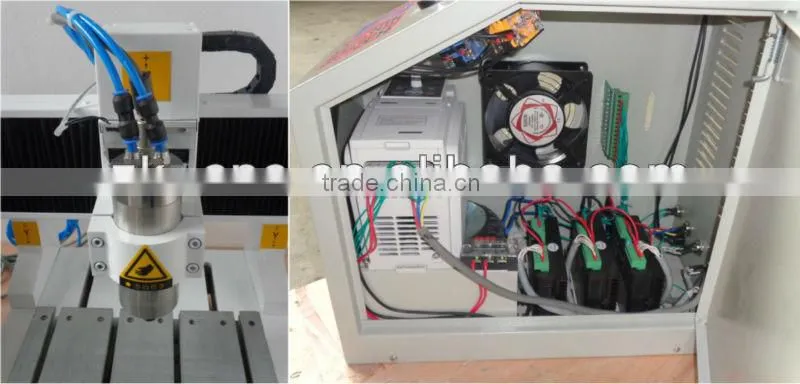

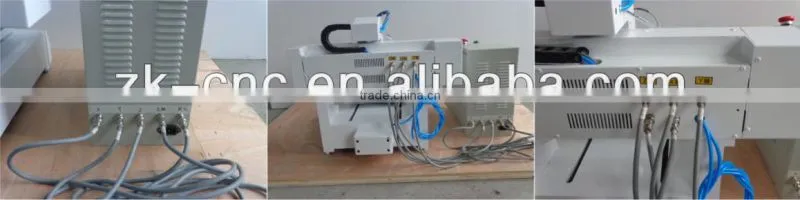

Reference machine pictures
Other models
ZK-4040, 400*400mm , ZK-6060, 600*600mm ZK-6090, 600*900mm....
Our CNC Router's Configuration/Working Area/ Color Can Be Changed Just
According To Your Need!
We Provide 24H Online Service For you! Pls Feel Free To Contact Us!
