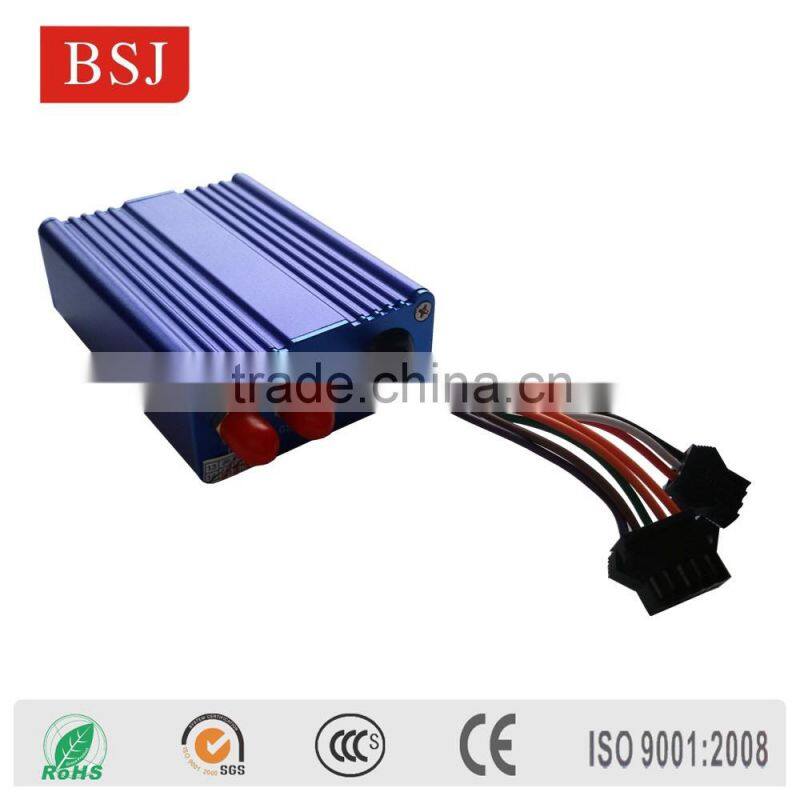

GPS GSM GPRS vehicle GPS tracker mini gps tracker with fuel monitoring BSJ-M10
Main functions:
1.Real time tracking
2.SOS
3.Remote controlling oil&circuit
4.blackout&car burglar alarm.
5. ACC checking
6.Movement alarm,over-speed alarm ,parking overtime alarm,GPS antenna short circuit alarm,main power off alarm
7.Geo-fence,Mileage statistics
8.ARM solution(Stable solution)
Characteristics of automobile GPS terminal (advantages):
1. Small size: Difficult to find and easy to install,
2. Low power consumption: Nearly have no infection to the vehicle battery.
3. Excellent Stability: Industrial grade of chip, professional anti-interference process, multilevel battery protection and reliable equipment operation
Characteristics of tracking software:
1. Excellent interface and convenient operation,
2. Efficient dispatching system and support of more online vehicle,
3. Two version of software(C/S and B/S version), especially B/S version of software is very convenient for customer to examine vehicle and check historical track.
4. Software interface of monitoring and control centre can be customized according to customers requirement and habit of usa
Technical Parameters:
| No. | ||
| 1 | GSM module | 850/900/1,800/1,900Mhz (optional) or GPRS/CDMA TCP/UDP |
| 2 | GPS module | U-BLOX 5-generation module (other module is considered) |
| 3 | GPS sensitivity | 160dbm |
| 4 | GPS frequency | L1, 1,575.42 MHz |
| 5 | Channel | 16-channel checking and tracking |
| 6 | Position precision | Less than 10m |
| 7 | Time precision | Global synchronous GPS time |
| 8 | Cold start | 45s |
| 9 | Warm start | 38s |
| 10 | Hot start | Less than 5s |
| 11 | Speed limit | Max 515m/s (1,000knots) |
| 12 | Acceleration limit | Less than 4g |
| 13 | Working temperature | -40 +85 |
| 14 | Storage temperature | -20 +70 |
| 15 | Dimension | 65mm(L) 45mm(W) 25mm(H) |
| 16 | Working voltage | 9V-36V |
| 17 | Working current |
80mA@DC12V |

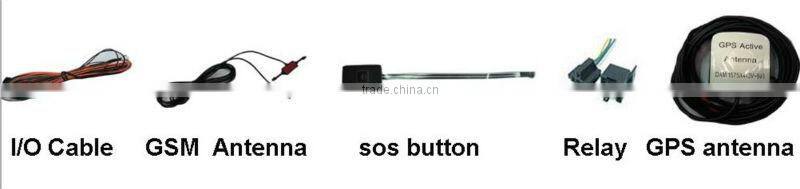

ACCESSORIES

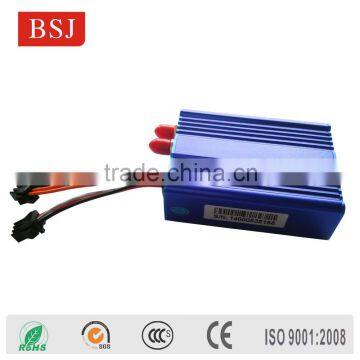

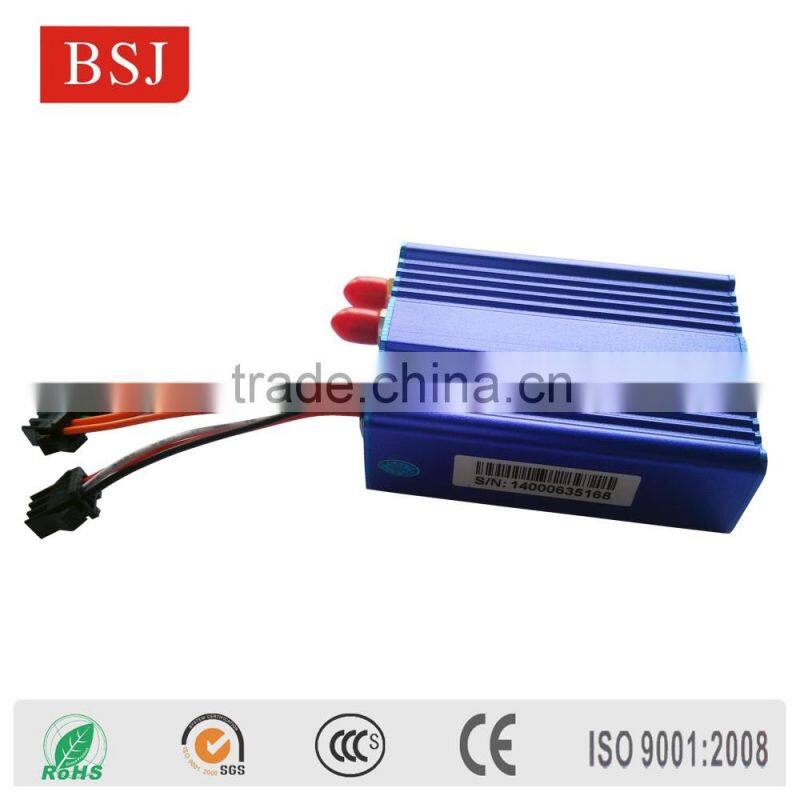

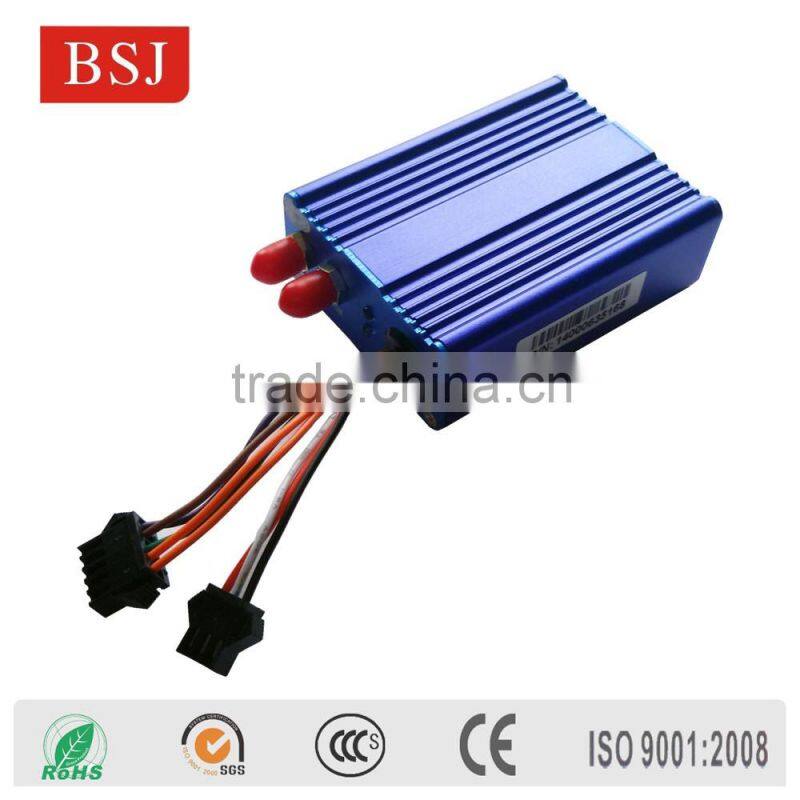

Detail Pictures
CERTIFICATE

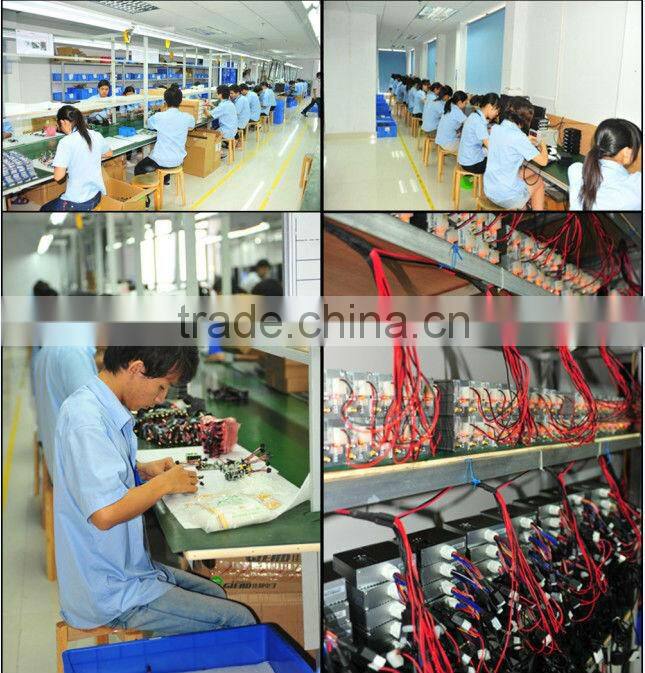

More picture about us :
