vehicle GPS Tracker mini GPS tracker with engine shut off
Mini gps tracking device, Cheap & smart gps tracking device M11 is a mini gps tracker and car alarm system for car. It only have 4 wires, 2 for power, 1 for relay and 1 for ACC detect. Easy installation and usage. What's more, free online tracking and free Android APP is offered for a lifetime.
Mini GPS Tracker BSJ-M11
1. Locating and Tracking.Information, such as speed, location, moving direction and elevation above sea-level of vehicle, can be tracked by monitoring center anytime.
2. Over-speed Alarm.If the speed of vehicle is over the preset speed, GPS terminal will warn the driver and send over-speed alarm to monitoring centre.
3. check location and other related status by sms.
4. Cut-off of Oil and Electricity. Safely cut-off oil and electrical supply of vehicle in long-range.
5. Main power disconenct alert.
6. Playback of Track.Make query of historical tracks of vehicle.
7. Communication Monitoring
8. Message Scheduling
9. sleeping mode for power saving.
Advantages of Mini GPS Tracker BSJ-M11
1. Small size: Difficult to find and easy to install,
2. Low power consumption: Nearly have no infection to the vehicle battery.
3. High integrity: Adopt ARM chip with superior processing
4. Excellent Stability: Industrial grade of chip, professional anti-interference process, multilevel battery protection and reliable equipment operation
Characteristics of Mini GPS Tracker BSJ-M11
1. Excellent interface and convenient operation,
2. Efficient dispatching system and support of more online vehicle,
3. Two version of software(C/S and B/S version), especially B/S version of software is very convenient for customer to examine vehicle and check historical track.
4. ftware interface of monitoring and control centre can be customized according to customers requirement and habit of usage.
Technical Parameters of Mini GPS Tracker BSJ-M11
GSM module |
850/900/1,800/1,900Mhz (optional) or GPRS TCP/UDP |
GPS module |
U-BLOX 5-generation module (other module is considered) |
GPS sensitivity |
160dbm |
GPS frequency |
L1, 1,575.42 MHz |
C/A code |
1.023 MHz chip rate |
Channel |
16-channel checking and tracking |
Position precision |
Less than 15m |
Speed precision |
Less than 0.1m/s |
Time precision |
Global synchronous GPS time |
Cold start |
45s |
Warm start |
38s |
Hot start |
Less than 5s |
Working temperature |
-20 +70 |
Storage temperature |
-40 +85 |
Dimension |
65mm × 45mm × 25 mm |
Working voltage |
9V-36V |
Power |
1W1.5W |
Working current |
0.1A12V; 0.06A24V |
Configuration List of Mini GPS Tracker BSJ-M11
Standard | ||
1 |
Host of vehicle GPS terminal |
1 |
2 |
Owners Manual |
1 |
3 |
Warranty Card |
1 |
4 |
Certificate of Conformity |
1 |
5 |
Power cord |
1 turns |
6 |
GPS antenna |
1 |
7 |
GPRS/CDMA antenna |
1 |
8 |
Installation fittings |
Several |

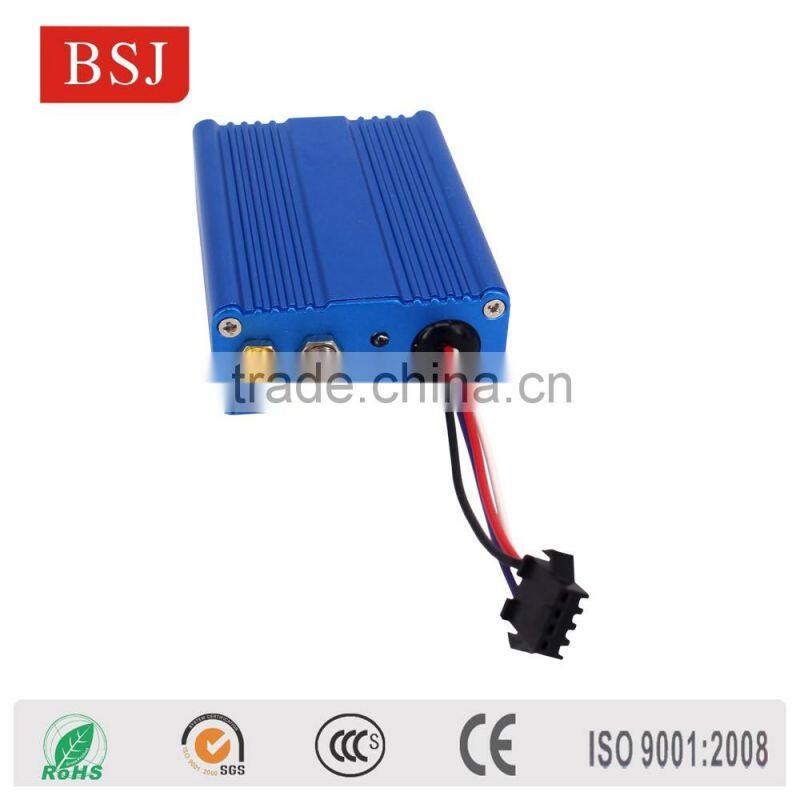

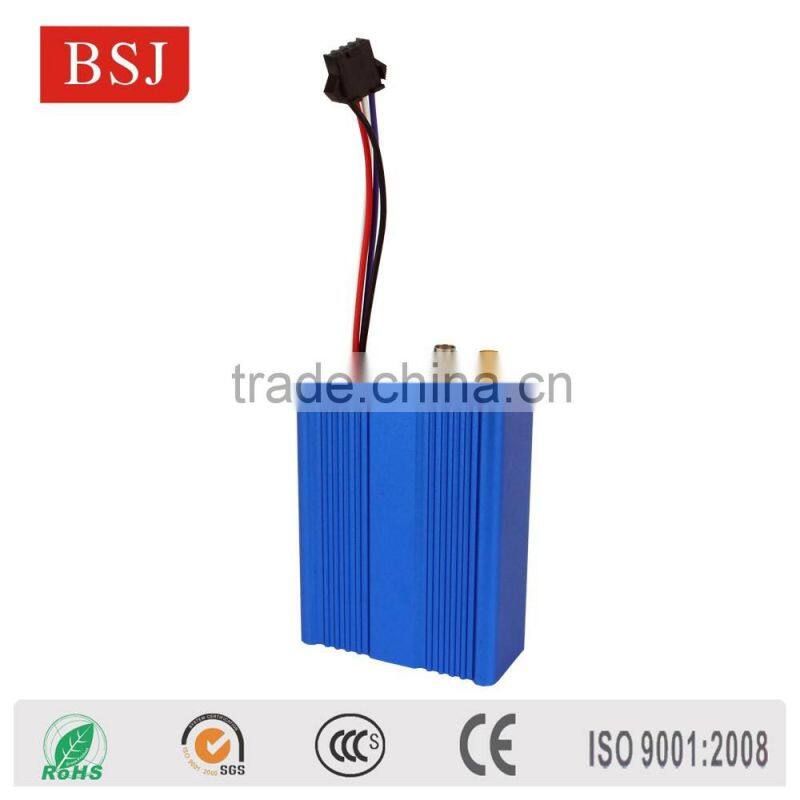

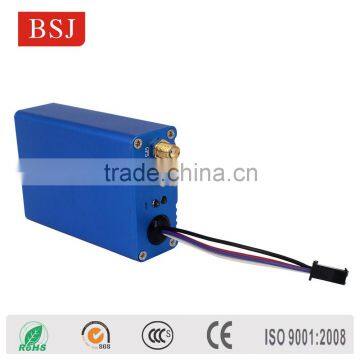

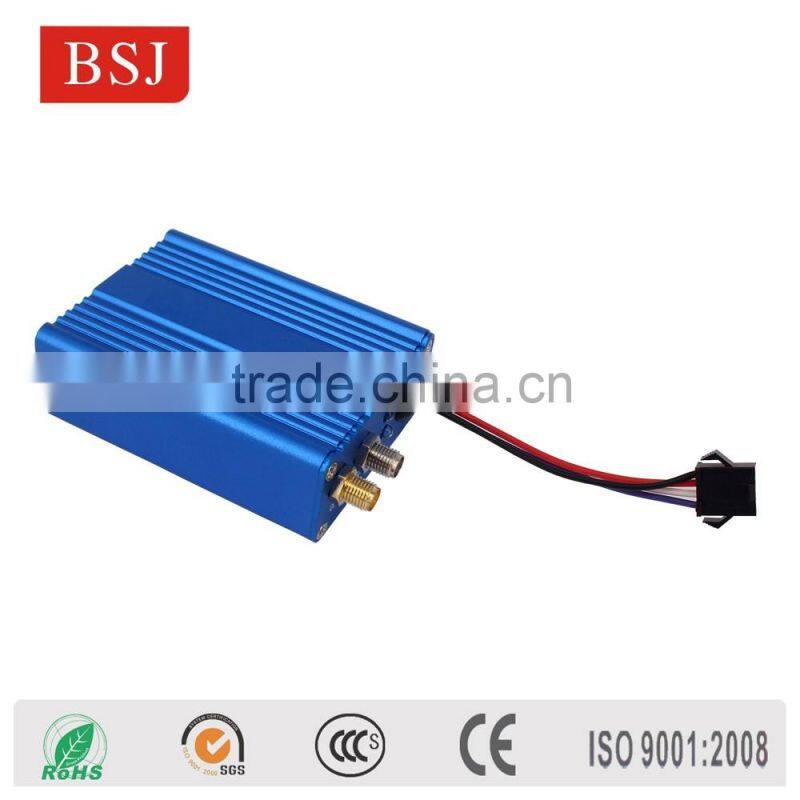

Detail Pictures of Mini GPS tracker BSJ-M11
