vehicle GPS Tracker with camera&RFID&fuel sensor&temperature sensor
Features of GPS Tracker with camera BSJ-A08
1.Real-time GPS tracking
2.Real-time vehicle status monitoring
3.Vehicle Immobilization Control
4.GPS mileage report and mileage pulse report(Traffic black box)
5.Blind area data storage, up to 50, 000 data log capacity
6.Geo-Fence with 108 rectangle area
7.Fleet management, 8 routes of vehicle tracking
9.Two audio interfaces for microphone and handset
10.Two RS232 interfaces for camera monitoring and information screen
11.More I/O interfaces for 19 User-Defined Report Alarm
12.Fuel and temperature monitoring via 2 analog inputs
13.Overspeed alerts
15.Smart power protection
16.Remote firmware upgrade via GPRS
18.Dual data communication capability through GPRS.
19.TCP/UDP dual mode communication
Special Function of GPS Tracker with camera BSJ-A08
1.Built-in 4 way relays and the antenna port from the internal device, make this device have great anti-broken function:A)If the antenna broken, it will control the machine arm or cut off oil&circuit function;B)If the SIM card out, it will control the machine arm or stop oil&circuit function;C)Main power off, control the machine arm or stop oil&circuit;
2.Record the machine vehicle's total working time and the longest working time;
3.Can connect with the original Canbus;
4.This is the customization products.
Technical Parameter of GPS Tracker with camera BSJ-A08
Items |
Parameter |
|
Dimension |
76mm*66mm*43mm |
|
Weight |
200g |
|
Input Voltage |
DC 9V~32V |
|
Operation current |
80mAh/12V |
|
Operating temperature |
-20℃~70℃ |
|
Humidity |
5%~95% |
|
Work Time |
2 hours in normal mode |
|
LED |
2 LED lights to show GPS, GSM |
|
Microphone |
1 |
|
GSM frequency |
GSM 850/900/1800/1900MHz |
|
GPS chip |
U-blox |
|
GPS sensitivity |
-159dB |
|
Positioning accuracy |
10 meters |
|
Configuration List of GPS Tracker with camera BSJ-A08
Standard | ||
1. |
Host of vehicle GPS terminal |
1 |
2. |
Owners Manual |
1 |
3. |
Warranty Card |
1 |
4. |
Certificate of Conformity |
1 |
5. |
Power cord |
1 turns |
6. |
GPS antenna |
1 |
7. |
GPRS/CDMA antenna |
1 |
8. |
Installation fittings |
Several |

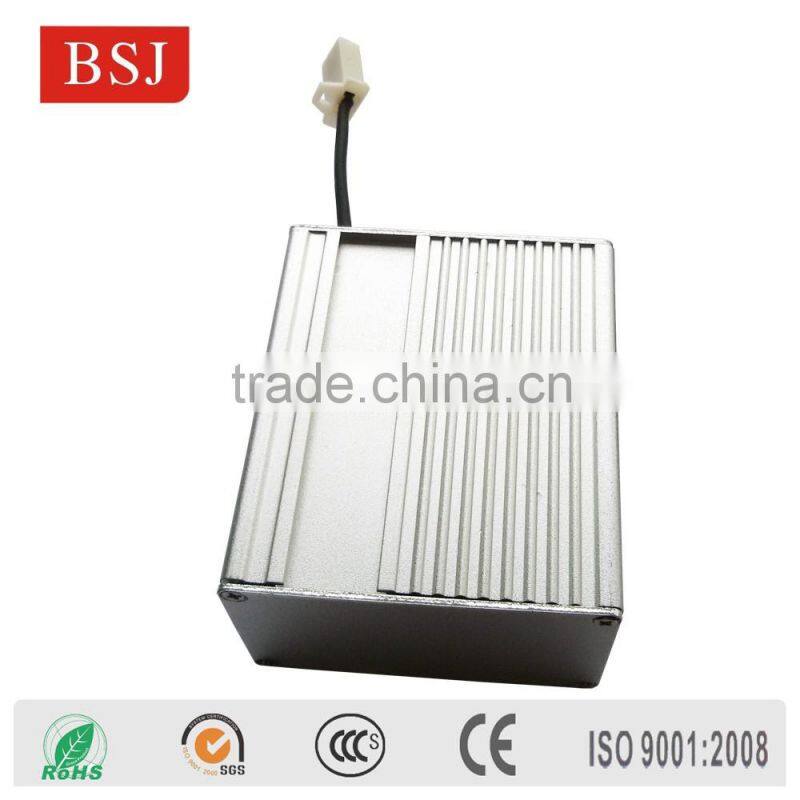

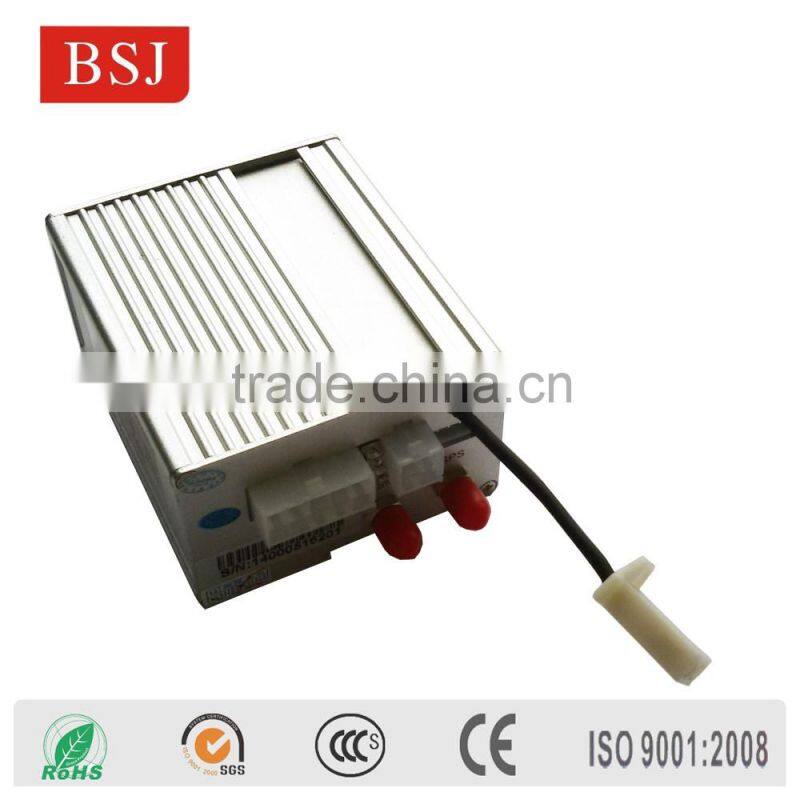

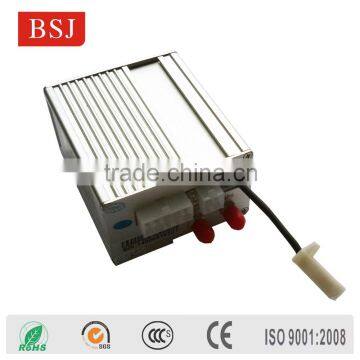

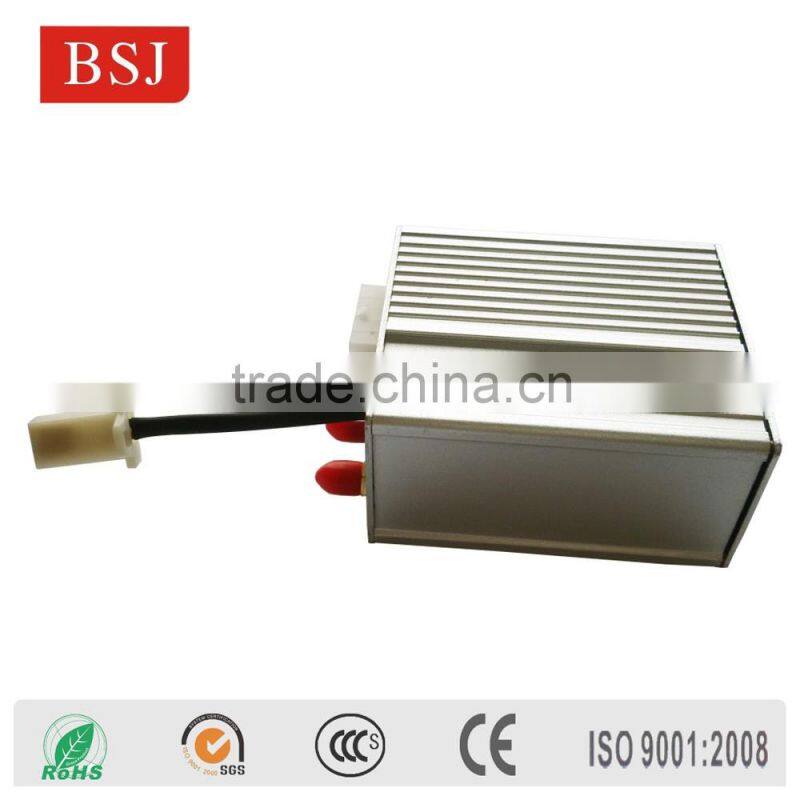

Detail Pictures about the GPS tracker with camera BSJ-A08
