Motorcycle GPS Tracker GPS Tracking Device for Electric Bike and Vehicle BSJ-K9

Motorcycle GPS Tracker GPS Tracking Device for Electric Bike and Vehicle BSJ-K9 thumbnail-1
Motorcycle GPS Tracker GPS Tracking Device for Electric Bike and Vehicle BSJ-K9 thumbnail-2
Motorcycle GPS Tracker GPS Tracking Device for Electric Bike and Vehicle BSJ-K9 thumbnail-3
Motorcycle GPS Tracker GPS Tracking Device for Electric Bike and Vehicle BSJ-K9 photo-1
Motorcycle GPS Tracker GPS Tracking Device for Electric Bike and Vehicle BSJ-K9 photo-2
Motorcycle GPS Tracker GPS Tracking Device for Electric Bike and Vehicle BSJ-K9 photo-3
US$ 10 - 50 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Type:
Gps Tracker
Use:
Automotive
Screen Size:
Other, No screen
Contact Supplier Request Quote Chat Now
Shenzhen Boshijie Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Gps Tracker
Use Automotive
Screen Size Other, No screen
Function Other, Tracking
Place of Origin Guangdong, China
Brand Name BSJ
Model Number BSJ-K9 motorcycle GPS tracker
Warranty 12 Months

Motorcycle GPS Tracker GPS Tracking device for electric bike and vehicle BSJ-K9







  Specfication of Motorcycle GPS Tracker

Item

Specifications

Dimension

L78 mm xW53mm x H18.3mm

Weight

72g

Input voltage

DC 9 V to 100V/30m A

Standby battery

600 mAh/3.7 V

Power consumption

10mA standby current

Operating temperature

-25°C to 75°C

Humidity

5% to 95%

Standby battery working hour

12hours in power-saving mode and 5hours in normal mode

Indicator

2 indicators showing GSM and GPS status

Button/Switch

No

Memory

128K byte

GSM frequency band

GSM 850/900/1800/1900 MHz

GPS sensitivity

-159dB

Positioning accuracy

10m

I/O port

no





Application



1.Vehical Tracking

2.Fleet management



Function of Motorcycle GPS Tracker

Function

Function Details

Function Description

Vehicle Monitoring Function

Real time tracking

Check real time vehicle data with setted time interval

Timing Monitor

Set time interval for monitor

Blind area data upload

Memory 200pcs blind area data and upload it to online tracking platform when the signal is back

Version Checking

Check version via online tracking platform

Mileage setup

Set initial value of mileage

Upgrade firmware in air

Need cooperation of customer and supplier.

Vehicle Alarm Function

Main Power Disconnect Alert

Triggered when main power voltage is lower than 5V

Send alarm via GPRS or SMS

GEO-Fence Function

Max. Set 10 fences and trigger alert when it enter or exit the fence send alarm to tracking platform

Over-speed alert

Set over-speed alert data and when the speed is over this data, alert will triggered.Send alarm to tracking platform

Low Voltage Alert

Triggered when main power voltage is lower than 10V

Others

Vibration Alert

When the vibrated accelerate speed is more than set data, vibration alert will triggered and upload a location information to online tracking platform or send SMS to cellphone

Inflection point

Upload location online when the turning angle is bigger than set

Illegal moning alarm

When ACC off and the speed is more then 10km/h the device will send alarm via GPRS or SMS

Real time positioning checking via SMS

Send SMS”map” or “position” to check the real time positioning

Low Power Consumption Mode

Turn to low power consumption mode after 10 second

If there are no SMS,Call,GPRS data,vibration,etc.







 Motorcycle GPS Tracker GPS Tracking device for electric bike and vehicle BSJ-K9

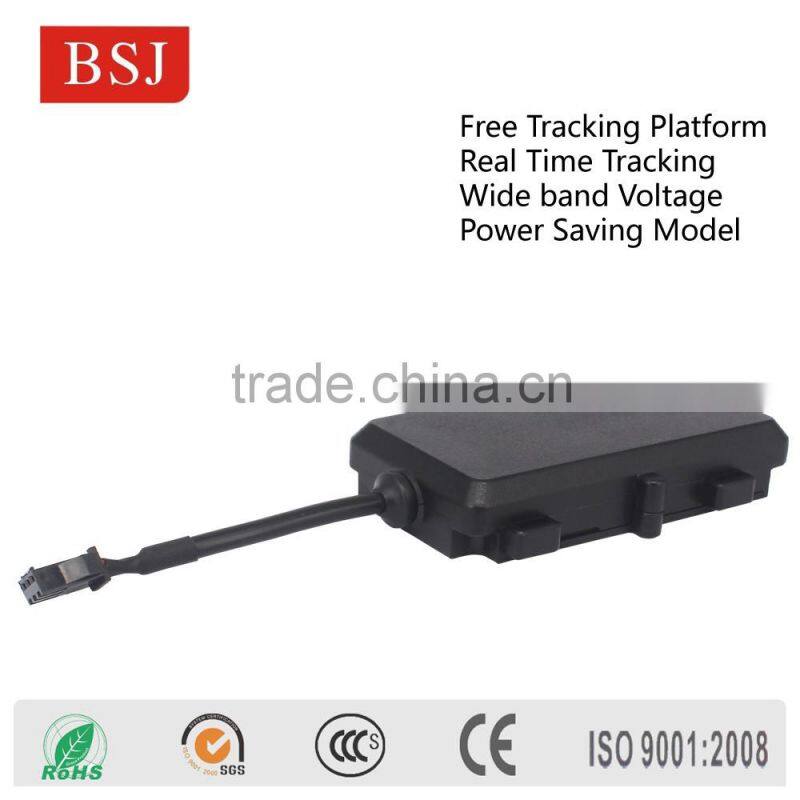

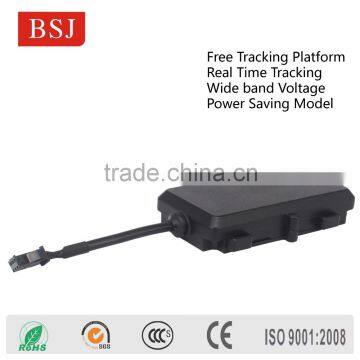

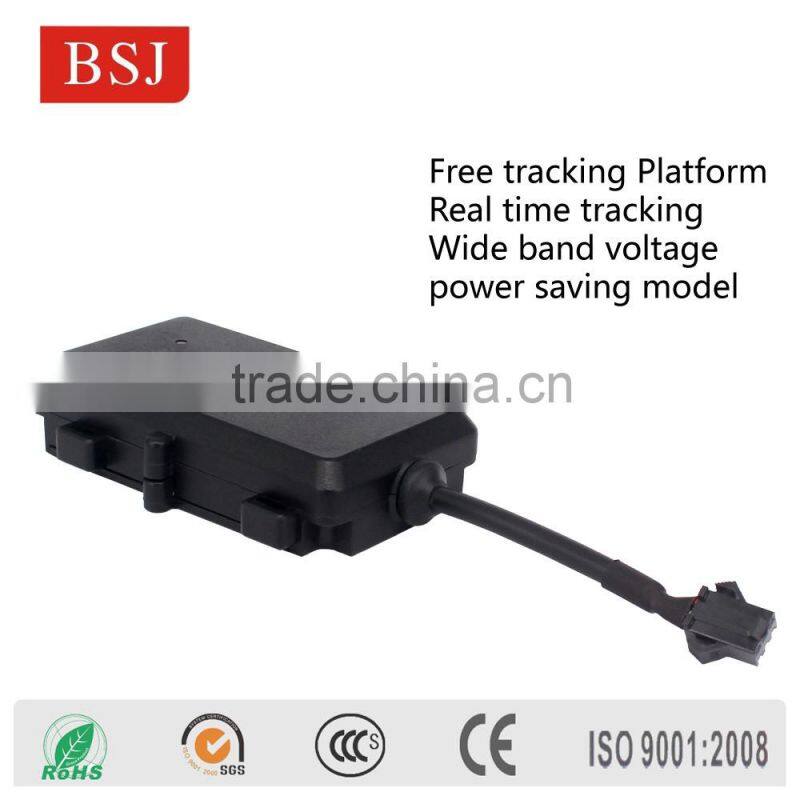

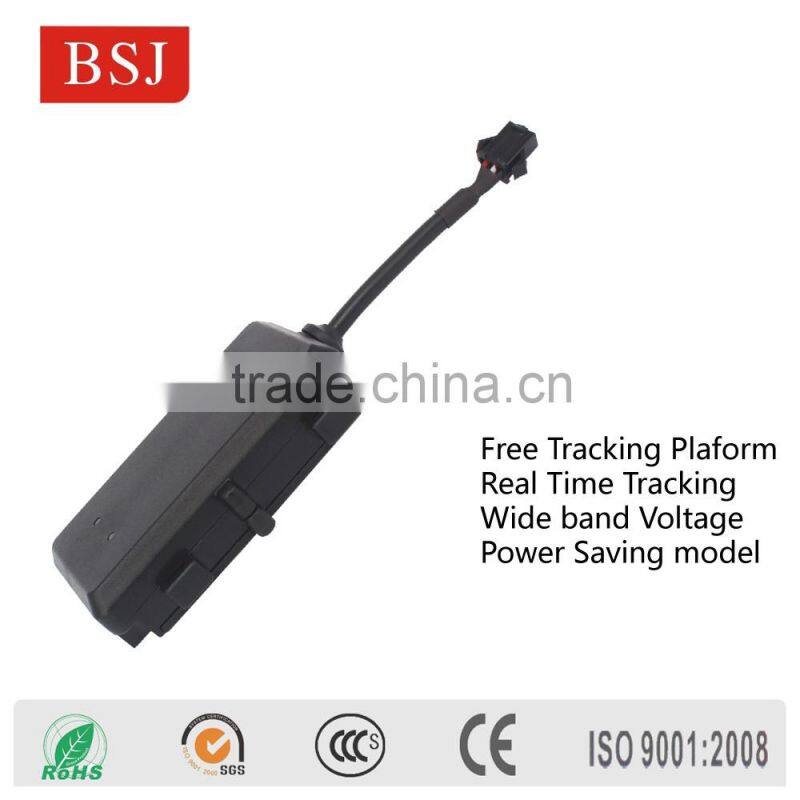

 Detail Pictures of Motorcycle GPSTracker

Motorcycle GPS Tracker GPS Tracking device for electric bike and vehicle BSJ-K9Motorcycle GPS Tracker GPS Tracking device for electric bike and vehicle BSJ-K9



Certification

Factory

Motorcycle GPS Tracker GPS Tracking device for electric bike and vehicle BSJ-K9
