Help CenterCheap Antenna 12dBi Gsm 900 Yagi Antenna (806-960 MHz)
Related Products
-
1800MHZ 15dBi Base Panel Directional Antenna 1710-1990MHz, Base Panel Directional AntennaUS$ 1 - 199MOQ: 1 Piece -
Mag Mounted Dual Band Car Antenna BNC Male Connector AntennaUS$ 1 - 16MOQ: 10 Sets
-
Hot Seller ! 3dBi Indoor Omni Celling Antenna Omni 360 Antenna Omni Direction AntennaUS$ 1 - 5MOQ: 100 Pieces
-
GSM Antenna ,Yagi Antenna ,890-960MHz 850mhz 900mhz Gsm Yagi AntennaUS$ 1 - 20MOQ: 10 Pieces
-
Long Range 4g Lte Antennas Directional 2g 3g 4g 800-2700mhz Outdoor Log Periodic AntennasNegotiableMOQ: 1 Piece
Model |
KT-12/11/9-08/09V |
Frequency Range |
806-960(MHz) |
Input Impedance |
50(Ω) |
VSWR |
<1.5 |
Gain |
12/11/9(dBi) |
(3dB)HPBW |
50°/60°/75°H-plane 45°/50°/55°E-plane |
F/B |
>15 |
Maximum Power |
200(W) |
Polarization |
Vertical Polarization |
Connector Type |
N-K |
Lighting Protection |
Direct Ground |
Ambient temperature |
-40°C— +60°C |
|
Mechanical specifications | |
Length |
820/650/490(mm) |
Structure |
9/7/5 unit |
Wind Velocity |
200(km/h) |
Weight |
0.7/0.65/0.6(kg) |
Hold Pole Diameter |
Φ40-Φ60(mm) |

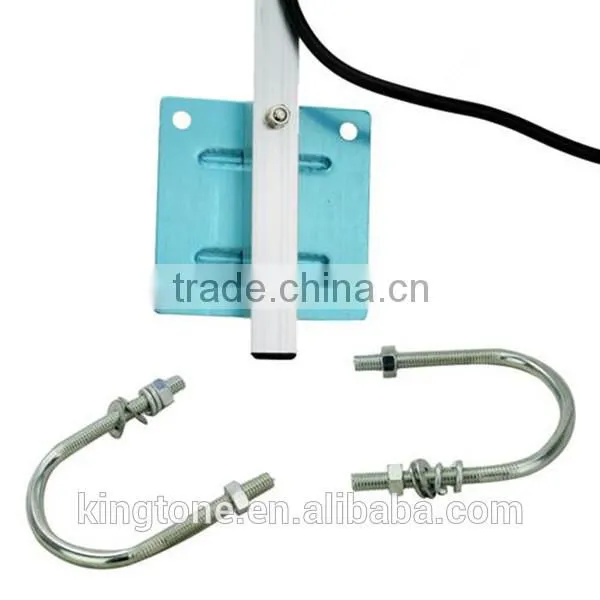

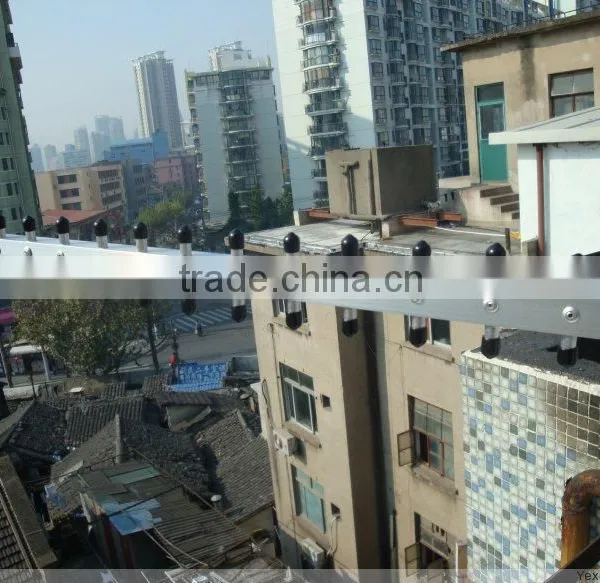

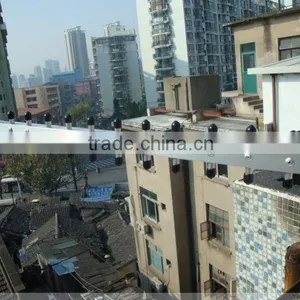

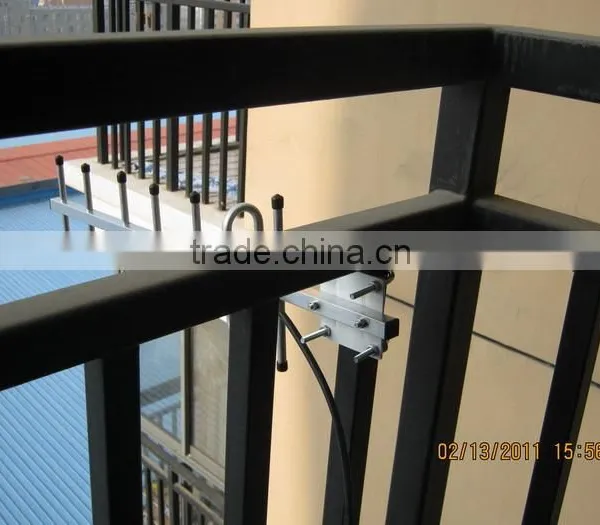

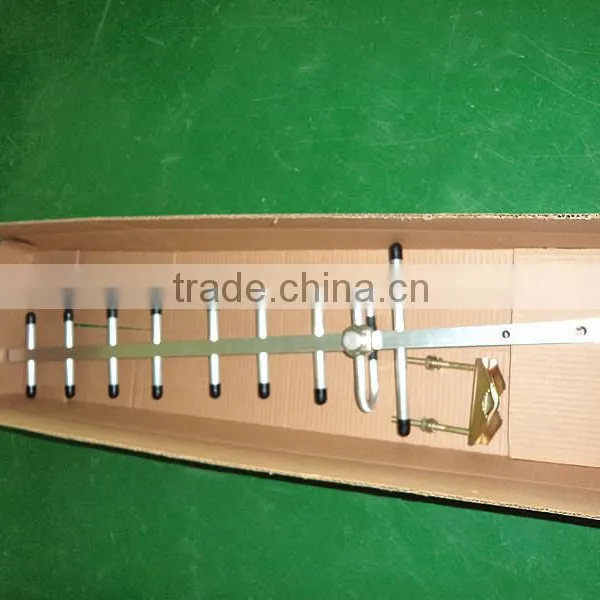

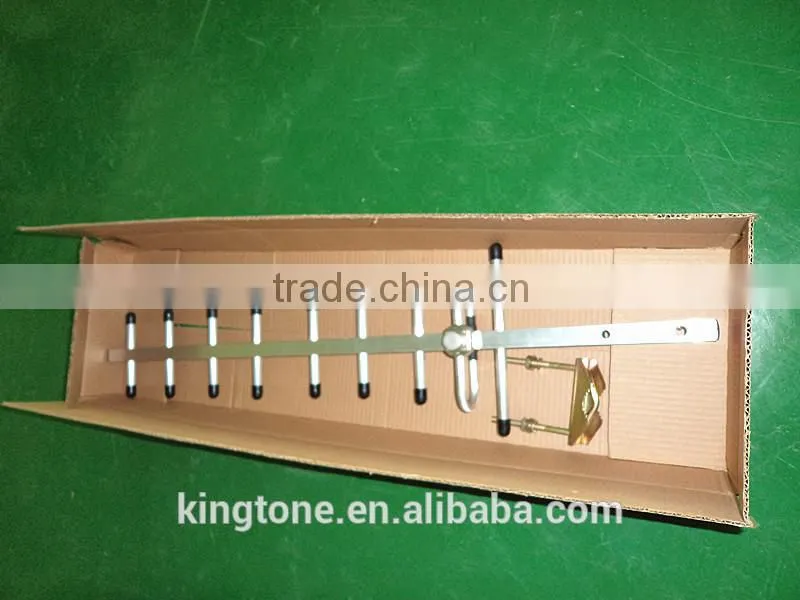

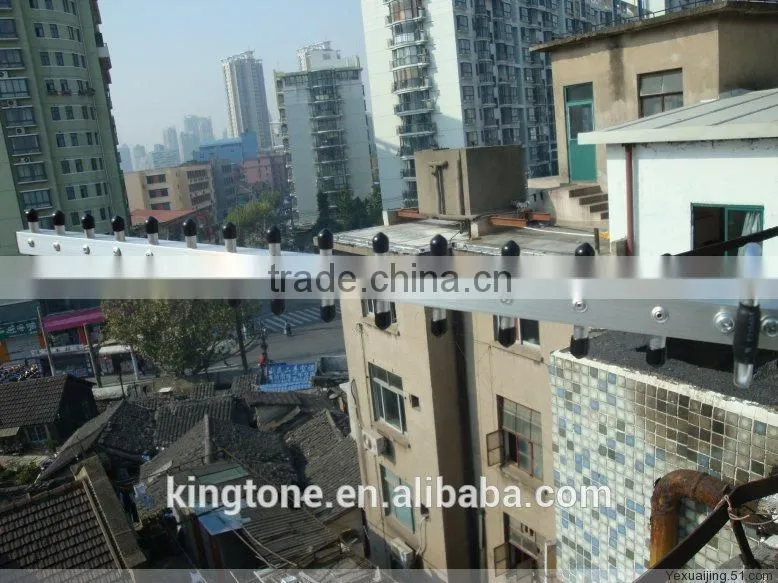

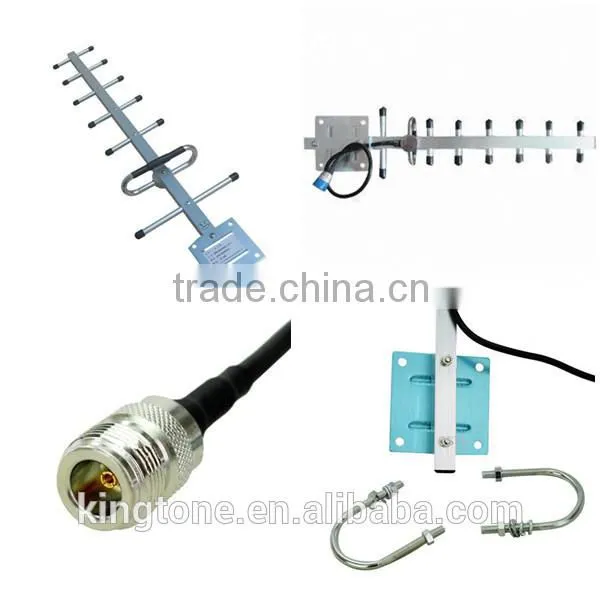

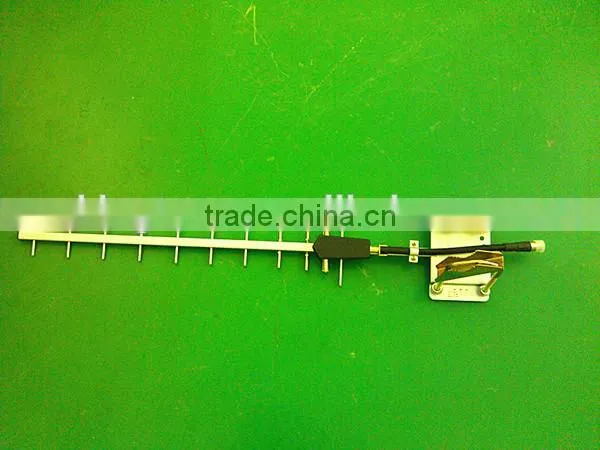

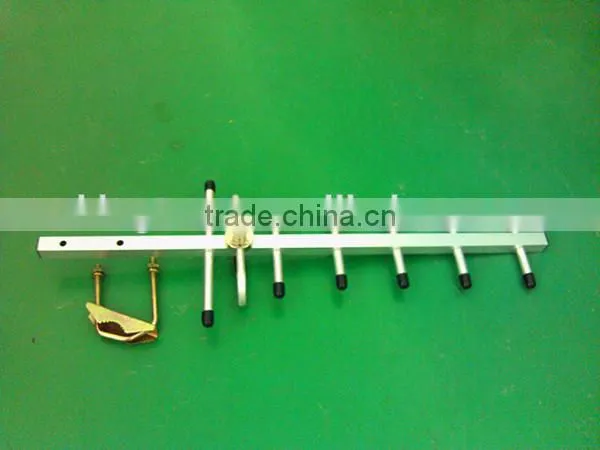

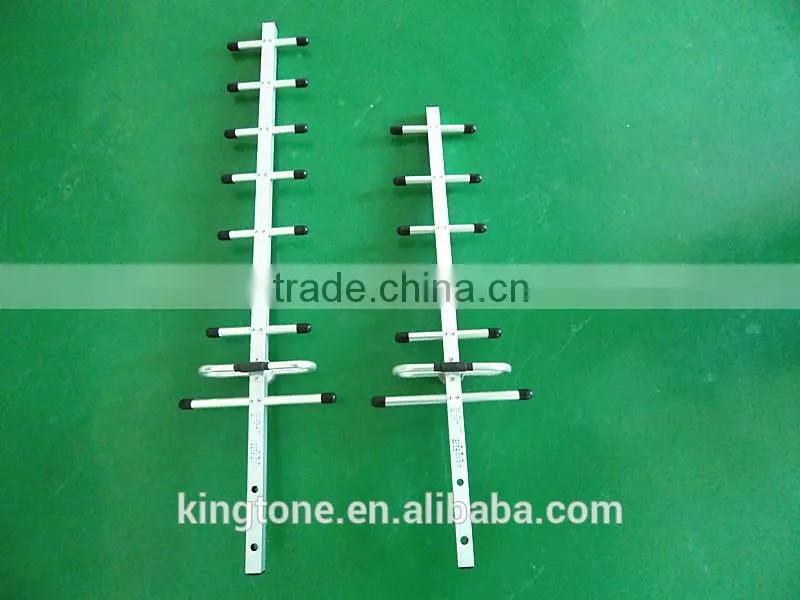

Photos of 12dBi gsm 900 Yagi Antenna
12dBi gsm 900 Yagi Antenna
12dBi gsm 900 Yagi Antenna
12dBi gsm 900 Yagi Antenna
12dBi gsm 900 Yagi Antenna
12dBi gsm 900 Yagi Antenna
12dBi gsm 900 Yagi Antenna
12dBi gsm 900 Yagi Antenna
12dBi gsm 900 Yagi Antenna
12dBi gsm 900 Yagi Antenna
