| Product Category | Telecommunications>> Antenna>> Antennas for Communications | ||||||
|---|---|---|---|---|---|---|---|
| Product Details |
|
||||||
| Product Name | Yagi antenna ,890-960MHz ,10dBd Gain PCTELBLUEWAVE ANTENANS | ||||||
| Product Keyword | Yagi antenna | ||||||

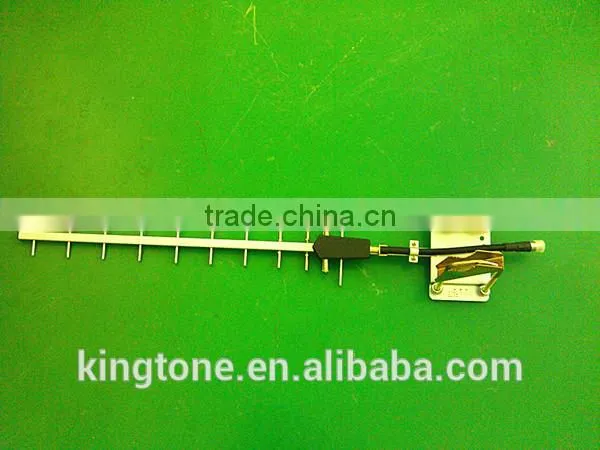

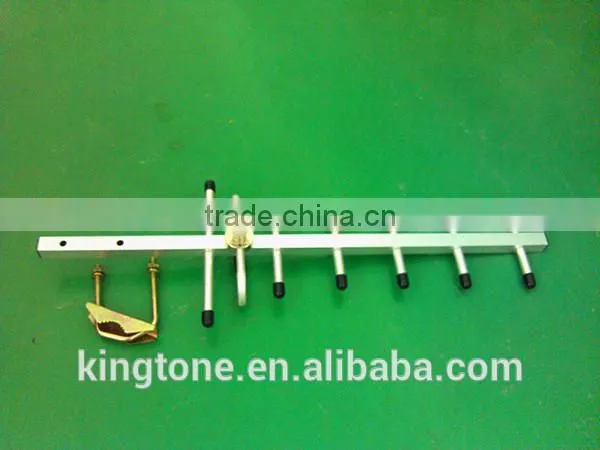

| Product Photo | |||||||
| Listing Description | Yagi Antennas ,890-960MHz,10dBd gain The BGYD890K has been engineered to provide high gain broadband performance |
||||||

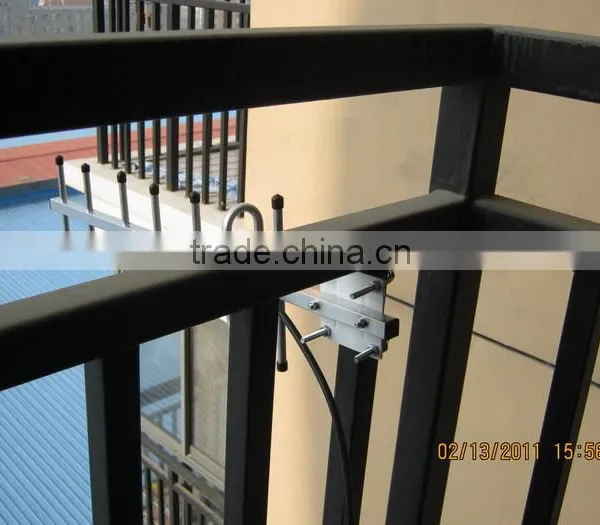

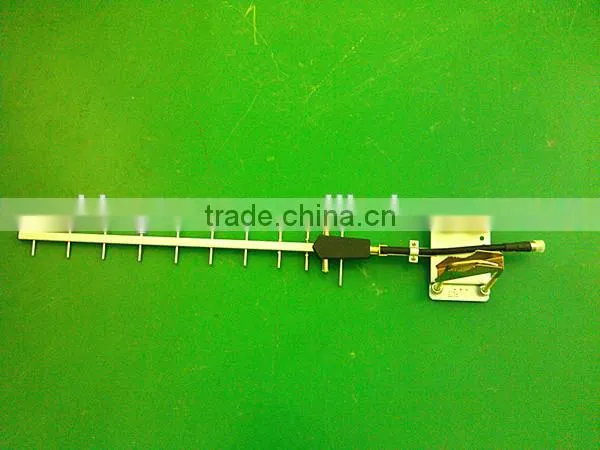

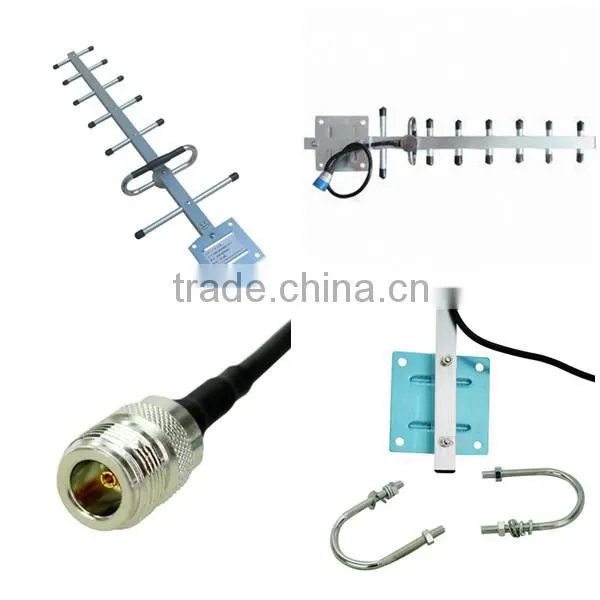

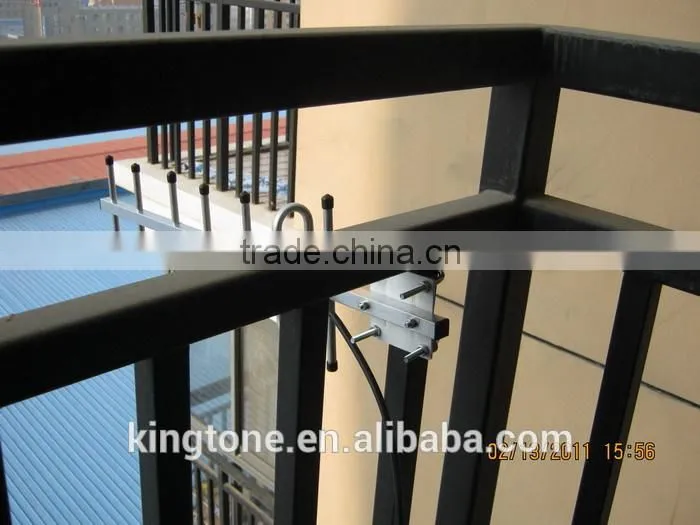

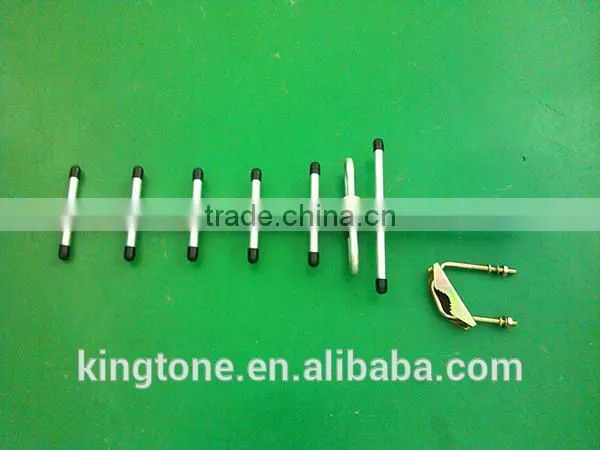

| Detailed Description | Yagi Antennas ,890-960MHz,10dBd gain The BGYD890K has been engineered to provide high gain broadband performance between the frequencies of 890-960MHz solid3/8'' aluminum elements complement the fully welded dipole on the boom. The black powder caot BGYD890K comes with an integral low loss 2' RG213 feed line with a standard N-Female connector.High strength mounting clamp is supplied for vertical or horizontal polarization. Features Dipole fully-welded to boom Through -Boom elements fixed with stainless steel antenna screws Mounting clamp included Antenna is supplied with a 2' Pigtail (RG213 ) and N female connector
Technical Data Maximum power: 200 watts Nominal Impedance:50 ohms VSWR:<1.5:1 Nominal <1.7:1 mAXIMUM Radiator material: Aluminum 6061-T6 Mounting method:includes mounting hardware BWC1022 Antenna Electrical Specifications Model Frequency range -3db Horizonal Beamwidth -3db Vertical Beamwidth Front to back Ratio Nominal Gain BGYD890K 890-960MHz 56 46 20db 10dbd
Mechanical Speifications Model Dimensions Weight Cross sectional area Lateral thrust 100mph Rated wind velocity BGYD890K 24X6.8 2lbs 0.24ft 6lbs 125mph Model Elements Cable type Cable length Connector type BGYD890K 7 RG213 2ft N FEMALE |
||||||
| Min. Order Quantity | 2 Piece/Pieces | ||||||
| FOB Price | USD 1~29 / Piece | ||||||
| Port | HK | ||||||
| Payment Terms | T/T Western Union MoneyGram | ||||||
| Payment Terms, Others | Paypal | ||||||
| Production Capacity | 10,000 Piece/Pieces / Month | ||||||

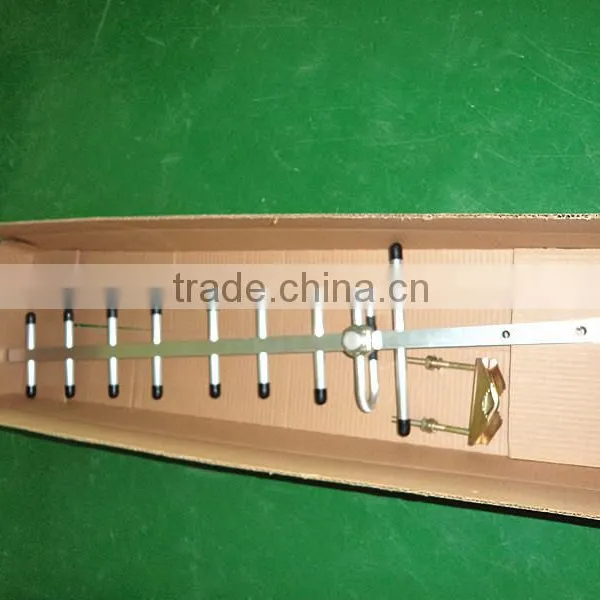

| Packaging Details | Each packed in foam then into box | ||||||
| Delivery Time | Within 2 days after received deposit |
