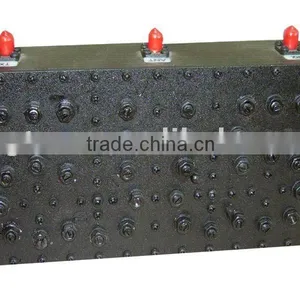

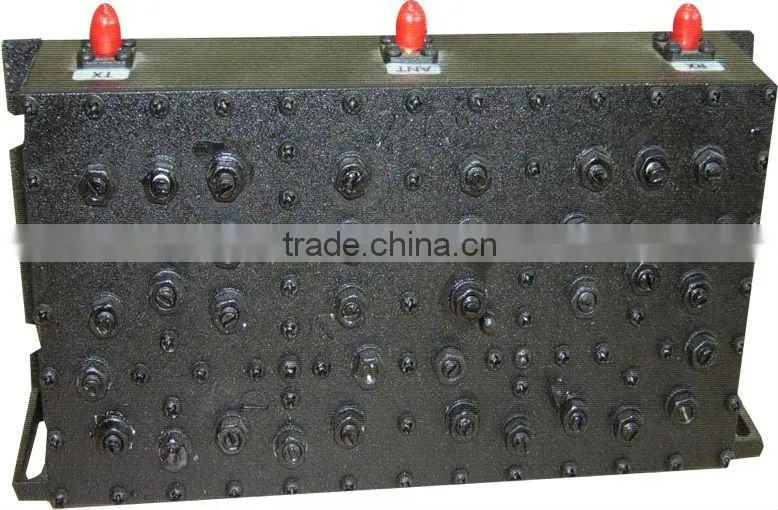

GSM 900MHz Repeater Duplexer, RF GSM Duplexer, GSM Cavity Duplexer
1.High Q cavity design
2. High Power Handling
3.Low passive IMD
GSM Duplexer
Detailed Product Specification Model |
KT-GSM-B |
memo |
|
Frequency |
885-909MHz |
930-954MHz |
Can design according customer specification |
Insertion Loss |
1.2dB typical 1.5dB max |
|
|
Ripple in Bang |
0.6dB p-p max |
|
|
VSWR |
1.3 Min |
|
|
Return Loss |
≥20dB at BWo±5MHz |
|
|
Isolation |
≥90dB |
|
|
Coupling |
25dB±2dB |
|
|
Power Handling |
50W |
|
|
Operating Temperature |
-30 to +55 degree |
|
|
Storage Temperature |
-55 to +85 degree |
|
|
Operating Humidity |
0 to 90%, relative |
|
|
Port Connectors |
SMA-Female |
|
|
Surface Color |
Black or Gray |
Can design according customer specification |
|
|
Anna Yao
|
|
Quanzhou Kingtone Optics & Electronics Technology Co., Ltd
Add:3th Floor,Bld B,Yucheng Base, Keji Road,Fengze district ,Quanzhou ,Fujian,China.
|
|
Tell: +86 595 28857992 Fax: +86 595 22155502 Whatsapp: +86 13178207380 skype: anna.yao696 Web: |
For more details of GSM 900MHz Repeater Duplexer, RF GSM Duplexer, GSM Cavity Duplexer,welcome you to contact us now!
