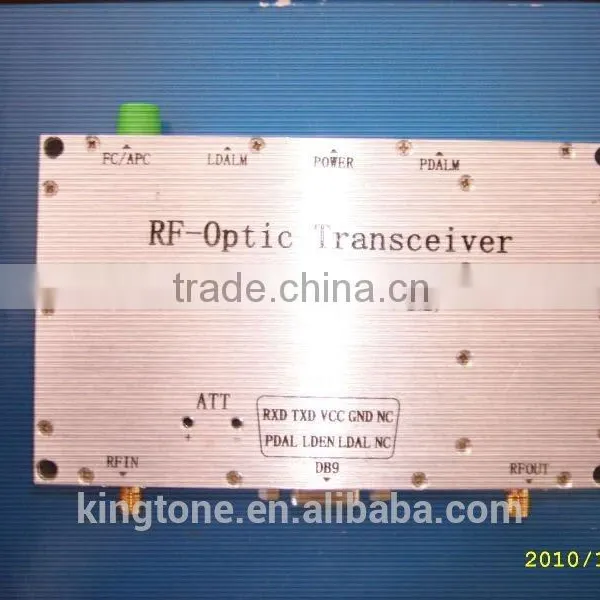

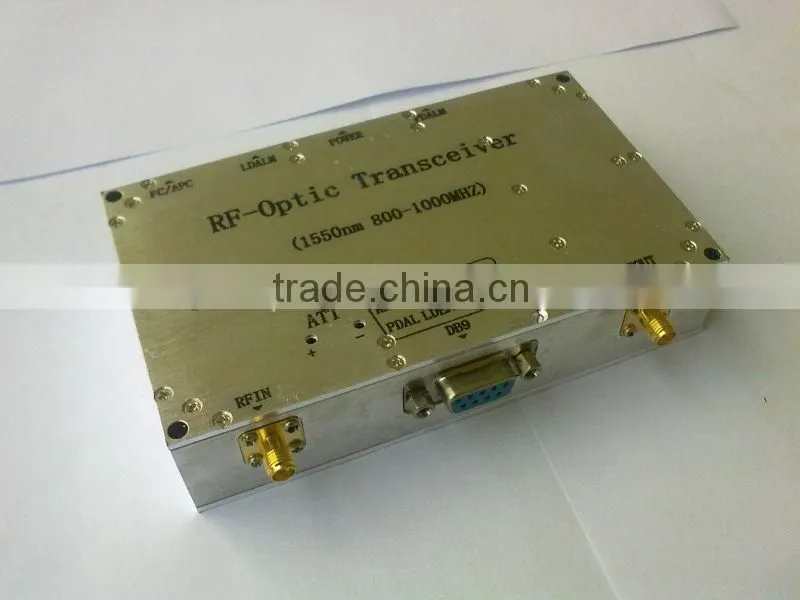

Help CenterKingtone Cheap GSM 3G Fiber Optic Repeater Receiver Module - RF-Optical Transceiver
Related Products
-
AC/DC Enclosed Standard Single OutputHF300-400W-S.pdfUS$ 1 - 2MOQ: 1 Set -
VHF Duplexer GSM/WCDMA/DCS/CDMA/TETRA RepeaterUS$ 400 - 800MOQ: 1 Set
-
GSM900MHz DuplexerUS$ 1 - 100MOQ: 1 Set
-
Cavity RF GSM900MHz Duplexer ,Passive Components for Gsm900 Cellular RepeaterUS$ 1 - 99MOQ: 10 Pieces
-
OEM RF Fiber Optic Transceiver 350MHz~470MHz GSM/TETRA/CDMA2000/WCDMA/TD-SCDMAUS$ 1 - 1,999MOQ: 1 Piece
Specifications
1.Perfect Electrical Performances
2.Excellent Monitoring Functions
3.AbunAbundant Application Experiences
Feature
1.High linear analog PD and 1310/1550 FP laser
2.With low noise and high linear gain power amplifier
3. With APC and protect circuit for laser
4. +12V Single power supply
5.RS232/RS485 control interface
6.Support 9600bps/19200bps data communication
6.–20°C~+70°C Operating Temperatur
Application
1.Optical Repeater for GSM/TETRA/CDMA2000/WCDMA/TD-SCDMA
2.Broadband RF Wireless
Testing Item |
Specification |
Testing Datas |
Remark |
||
Optical Wavelength |
1310/1550nm |
1330nm |
1550nm |
|
|
Frequency Range |
350MHz~470MHz |
|
|
|
|
Optical Output Power |
3dbm±1db |
|
|
|
|
Max. Link Gain |
≥10dB |
|
|
|
|
Pass Band Ripple |
Gp≤1.0db |
|
|
|
|
IMD3 |
≤-60dbc(Po=-3dbm) |
|
|
|
|
ATT Range |
≥30dB |
|
|
|
|
|
ATT Attenuation Linear |
-10 dB |
±1.0dB |
|
|
|
-20 dB |
±1.0dB |
|
|
|
|
-30 dB |
±1.5dB |
|
|
|
|
Gain Adjustable Step |
1 dB |
|
|
|
|
VSWR |
Input Port≤1.4 |
|
|
|
|
Output Port≤1.4 |
|
|
|
||
Spurious Emission |
≤-60dBc/30 kHz(9KHz~8GHz) |
|
|
|
|
Max. Input Level |
+10dbm |
|
|
|
|
Output Low Noise |
≤-133dbm |
|
|
|
|
Launching Alarm |
≤-3dbm |
|
|
|
|
Receiving Alarm |
≤-15dbm |
|
|
|
|
RF Isolation |
≥60 |
|
|
|
|
FSK Communication |
Optical Attenuation 15db |
|
|
|
|
Connect Type |
FC/APC |
|
|
|
|
Working Voltage |
+9V~+28V |
|
|
|
|
Working Electricity |
+12V/0.15A |
|
|
|
|
Working Temperature |
-20~-55°C |
Storage Temperature |
-40~-75°C |
||
Monitoring DB Port |
DB9 Female Connector |
|
|
The five holes side is upward; |
|
Size |
|
127*76*28.5 mm |
Weight:320g |
||
