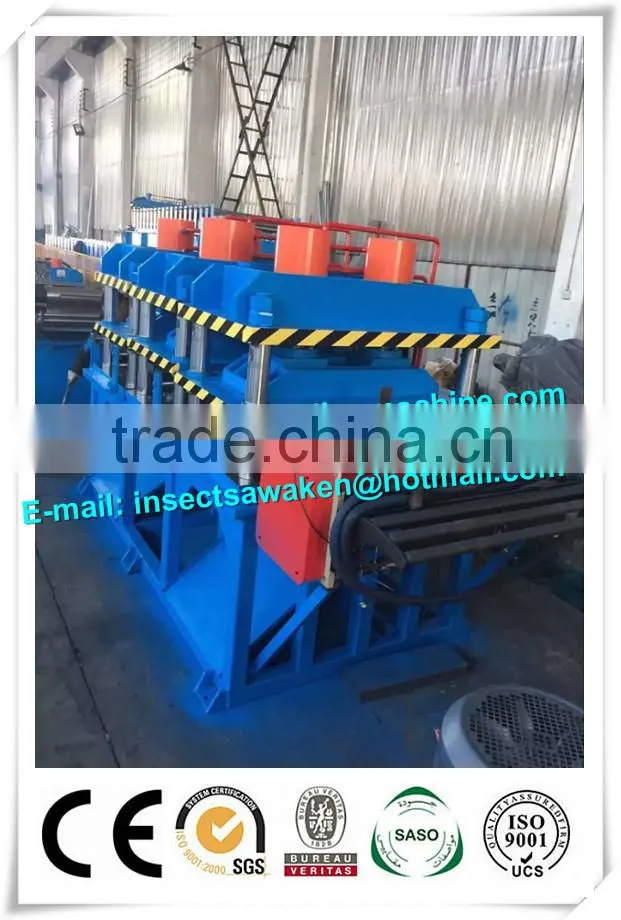

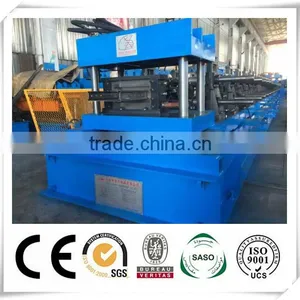

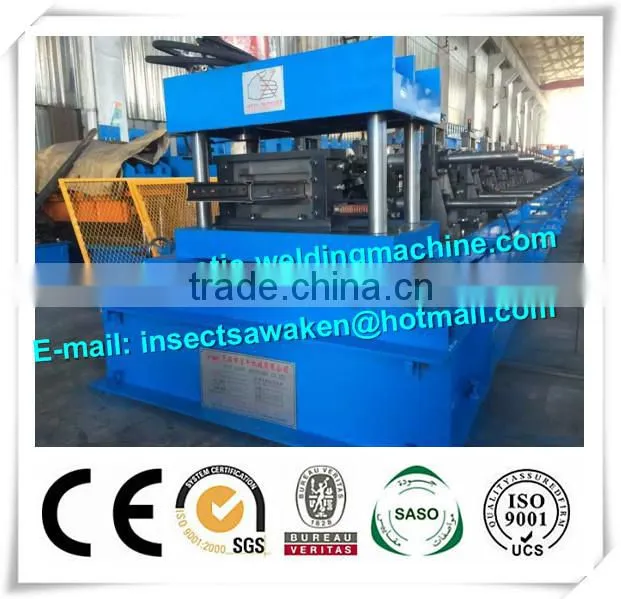

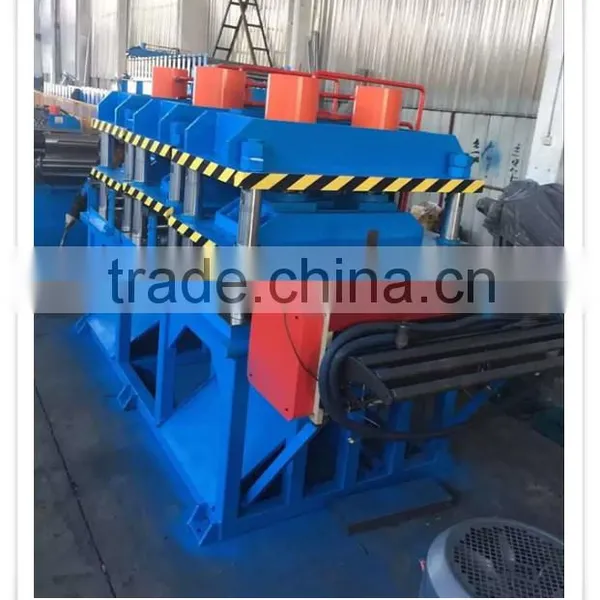

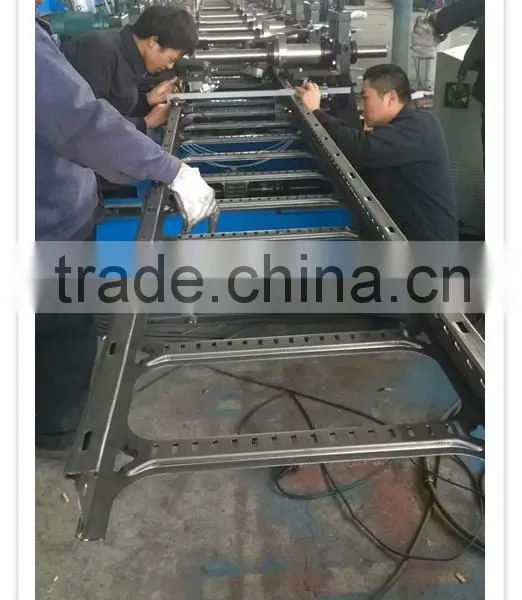

Help CenterCable Tray Roll Forming Machine, Ladder Bridge Cable Tray Forming Machine
Related Products
-
Solor Light Steet Pole Production Line, Steel Coil Slitting Machine, Cut to Length MachineNegotiableMOQ: 1 -
Automatic Light Pole Production Line, Steel Plates Diagonally Shearing MachineNegotiableMOQ: 1
-
Tandem Type Press Brake Machine, Light Street Poles Production Line Used Brake Press MachineNegotiableMOQ: 1
-
Automatic Light Street Pole Welding Machine, Steet Poles Welding MachineNegotiableMOQ: 1
-
Steel Tube Straightening Machine for Light Street Poles Production LineNegotiableMOQ: 1

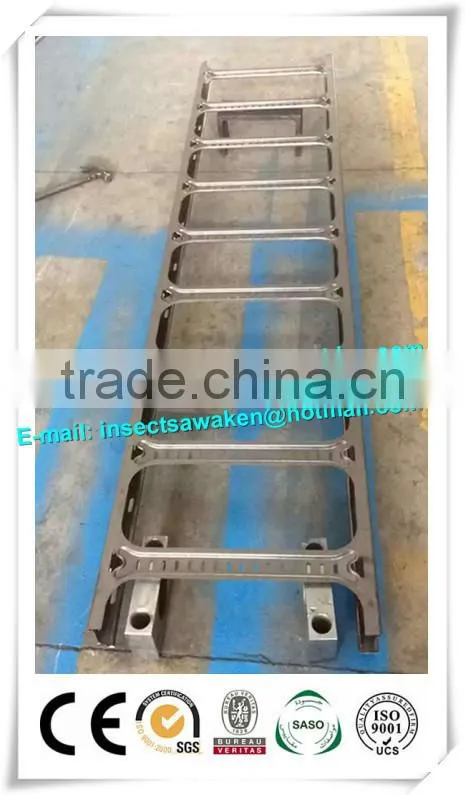

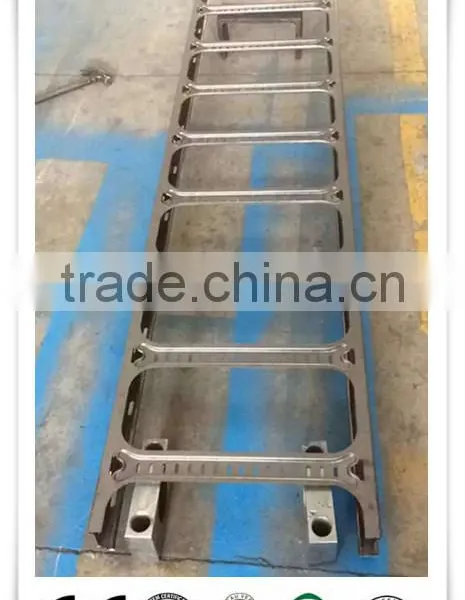

1. It can according to the need to produce the steel width (100mm ≤ § ≤300mm), many kinds of specification electric cable bridges and other structure product.
2. Product speed by punching: 2.55m/min
3. Continuous roll forming speed: 10-15m/min
4. Material thickness: 1-3mm
5. Material require: Q235 cold roll steel
6. Production line has automatic and manual two operating mode, may realize the linkage and the partition revolution work.
No. |
Item |
Unit |
Parameter |
|
1 |
Material |
Type |
|
galvanized sheet,strip steel,etc |
|
|
Strength of material sheet |
Map |
≥350 |
|
|
Thickness of material sheet |
mm |
1.2-1.8 |
2 |
Profile sizes |
mm |
As the profile pictures |
|
3 |
Production speed |
m/min |
Forming speed:about10m/min |
|
4 |
Material of roller |
|
GCr15 quenching treatment |
|
5 |
Drive type |
|
Wall Frame+Chain drive |
|
6 |
Motor Power |
kw |
About 22Kw |
|
7 |
Electric control system |
|
PLC variable frequency control |
|
8 |
Dimensions(Length*width*height) |
m |
25*4*3.9m |
|
