HVAC DAMPER ROLL FORMING MACHINE, AIR DUCT DAMPER ROLL FORMING MACHINE, DAMPER FRAME FORMING MACHINE, DUCT MANUFACTURE MACHINE fire damper actuator
- Fire Damper Frame Manufacture Auto Line
Basic configuration:
1, decoiler
2, straigtening, punching and cutting machine
3, roll forming machine
4, puching and cutting mould
5, working table
6, folding and cutting machine
7, control system
Model: FDFA-ZM
Thickness: 1.5-2.0mm
Coil Width: 276mm
Damper Body Width: 200mm
Speed: 12m/min
Minimum Damper Dimention: 80mmx80mm
Decoiler Capercity: 1.5ton
Space: 20000*1200*1300(L*W*H)

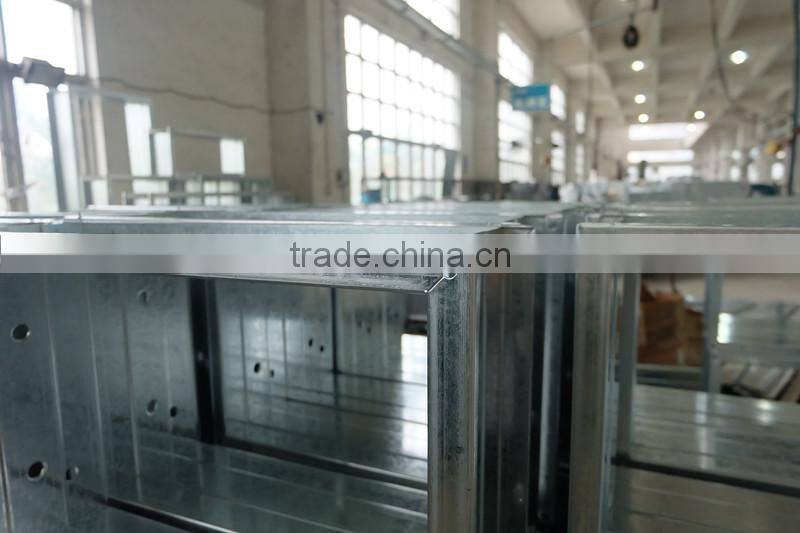

- Fire Damper Frame

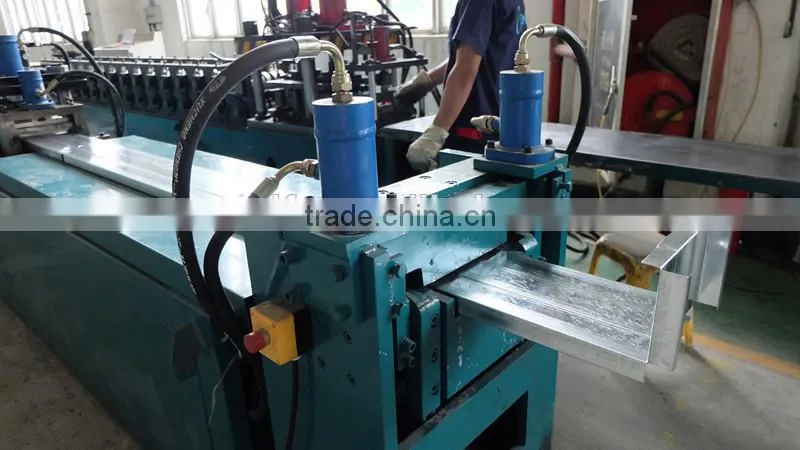

With many years of manufacturing experience, Comifo developed the first PLC-controlled auto line for fire damper frame. It consists of decoiler, straightening, grooving, notching, roll forming machine as well as folding machine. It is suitable for different size damper manufacture. Maximum speed is 13m/min. With this machine, you can have a fully automatic damper workshop, which reduces the labor cost greatly.

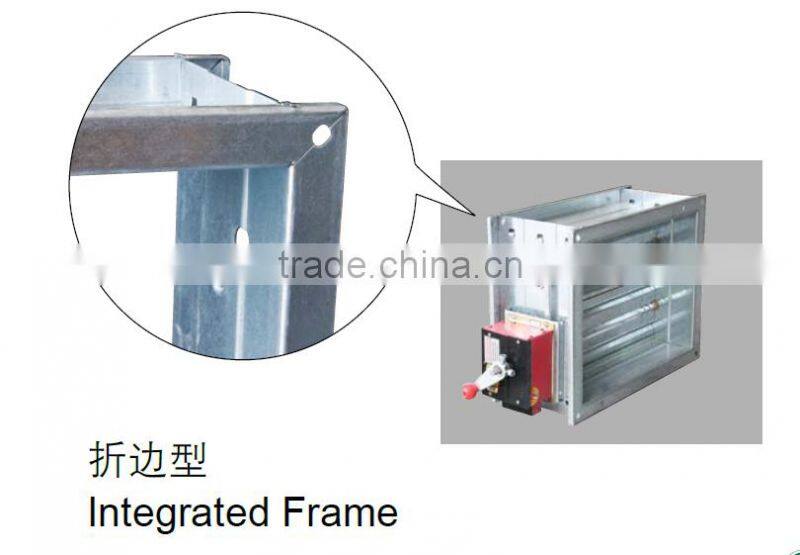

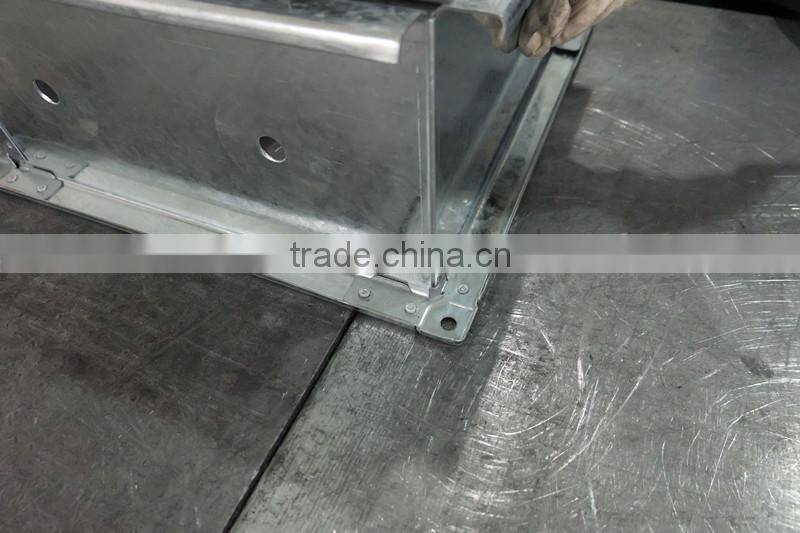

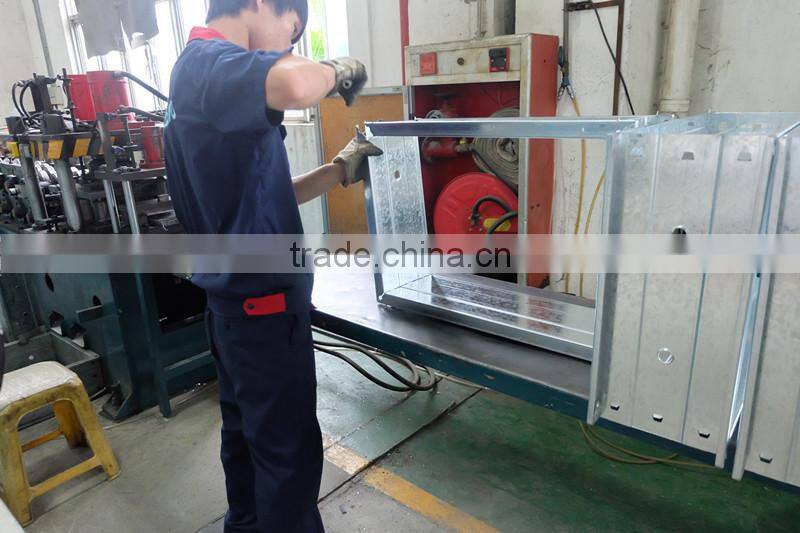

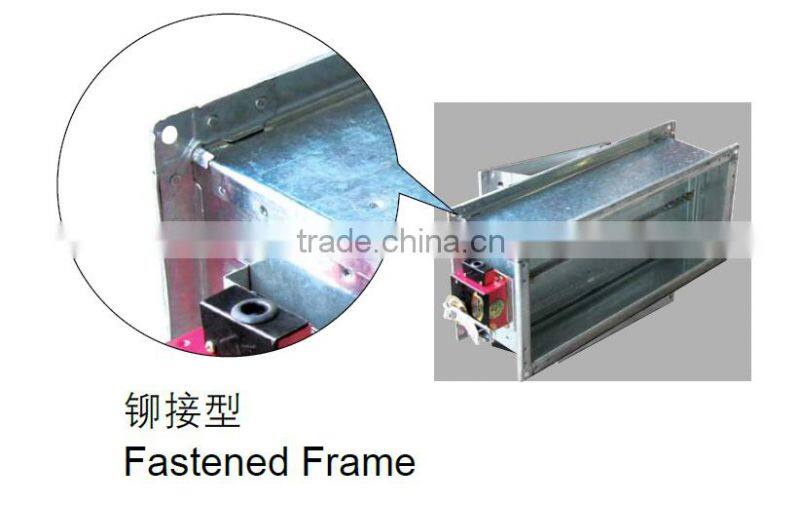

The Fire damper frame manufacture auto line can fabricate two kinds of frames, newlly designed hand fold integrated frame and TDF corner fastened frame. Two kinds of frames to be fabricated in one machine, reaching different requirements.
Configured with Comifo fire damper blade forming machine and Comifo fire damper fastening table, a full damper body can be manufactured with higher production and less labor.

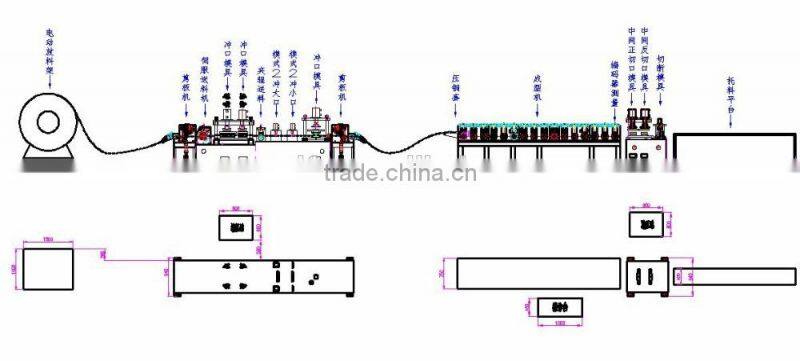

Station: decoiler-punching-forming-cutting-folding
- Profile
- Pictures
- Other

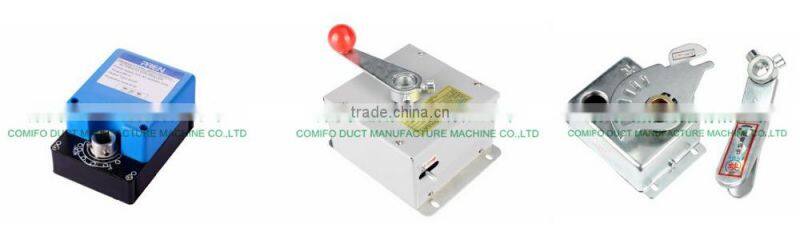

- DAMPER ATUATOR AND DAMPER ACCESSORIES:
Other accessories are available, such as copper bush, square shaft, linking piece, damper handle and linking rod. More over, Comifo also offer fire damper actuators( manual actuator, semi-auto actuator, semi-auto two-time movements smoke fire damper actuator, auto actuator, auto two-time movements smoke fire damper actuator, as well as actuator for air damper, motorized ball valve, etc.
MANUAL ACTUATOR:
Size: 111.6X67.6X75
Feature: 0~90° handle manual air regulate. Torque: 10Nm
temperature sensor moves to turns off and outputs signal
manual reset. Micro switch contact rating: AC220V.3A
SEMI-AUTO FIRE DAMPER ACTUATOR:
Size: 123x159
Feature: DC24V electromagnet turn off damper automatically. Torque: 10Nm
temperature sensor moves to turns off and outputs signal. Voltage DC24V
manual turn off damper, manual reset. manual reset. Micro switch contact rating: AC220V.3A
output turnoff signal and interlock control signal. electromagnet DC24V.0.8A
FULL-AUTOMATIC FIRE DAMPER ACTUATOR:
Size: 140x180.4
Feature: DC24V electromagnet turn off damper automatically. Torque: 10Nm
temperature sensor moves to turns off and outputs signal. Voltage DC24V
manual turn off damper, manual reset. manual reset. Micro switch contact rating: AC220V.3A
output turnoff signal and interlock control signal. electromagnet DC24V.0.8A
for more details, please contact us.
