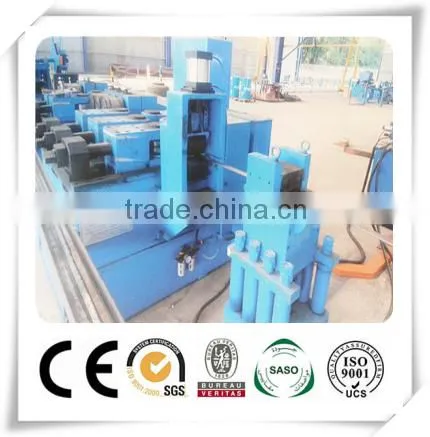

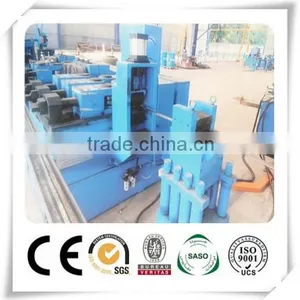

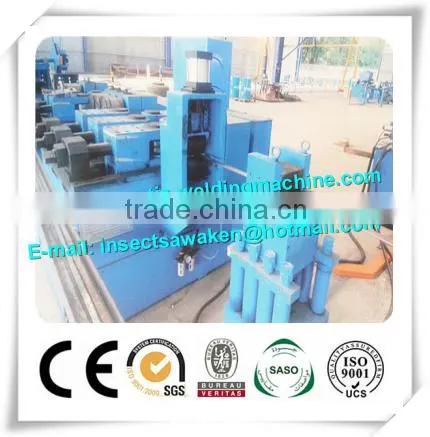

Fin-bar straightening & calibration machine
Fin-bar straightening & calibration production line consists of fin-steel calibration machine (including the horizontal correcting, bending straightening and fixed-length devices) cutting machine and force-feeding conveyors. This production line is one of the key equipment to ensure the welding quality of the membrane wall, mainly used in fin-steel’s pre-heater before welding membrane wall tube panel, to ensure the welding quality. Tempered discal-shaped fin-bar processed through this production line, according to the size of the tube to calibration the fin-steel, then horizontal correcting and bending straightening to meet the requirement of the front welding , and last according to the length of pipe to cut off.
In order to make the tempered fin-steel to calibration smoothly, pre-horizontal correcting device is equipped in the calibration wheel.
- Adopting secondary calibration.
- Using five roller leveling method, in which two rolls take the initiative to roll.
- Using five roller straightening ways, in which two rolls take the initiative to roll.
- The fixed-length fin-steel device equipped with pulse encoder, to scale the length of the Fin-steel.
- Force-feeding conveyors of Fin-steel, whose transmission speed <8m/min.
- Fixed-length fin-steel cutting off production line using imported PLC as a control unit, with strong anti-interference and stable performance.
1. Main performance
No. |
Name |
Specification |
|
1 |
Fin-bar specification |
Width |
8-140mm |
Thickness |
3-14mm |
||
2 |
Maximum calibration value |
2.5mm |
|
3 |
Calibration precision |
±0.1mm |
|
4 |
Calibration speed |
0-14m/min |
|
5 |
Pulse equivalent |
0.5mm/ pulse |
|
6 |
Steel material (annealed condition) |
Q235-A, 12Cr1MoV |
|
7 |
Fin bar calibration machine motor |
15KW |
|
8 |
Hardness of material |
≤280HB |
|
9 |
Note: Fin bar must be annealing |
||
2. Scope of supply
No. |
Name |
Model |
Manufacturer |
Quantity |
1 |

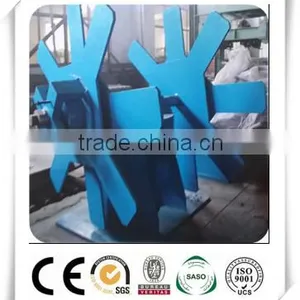

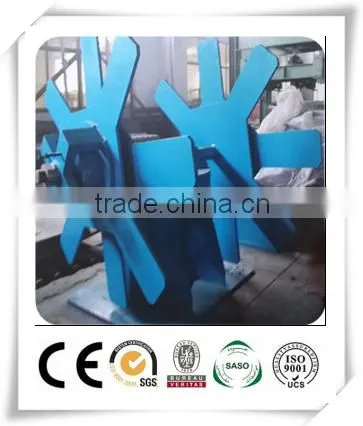

Manual uncoil |
5T |
Friendship Machinery |
1 |
2 |
Main machine |
BJ-120 |
Friendship Machinery |
1 |
3 |
Motor |
15KW |
Changzhou Guotai |
1 |
4 |
Control box |
|
Friendship Machinery |
1 |
5 |
calibration wheels |
|
Friendship Machinery |
4 |
6 |
Leveling wheels |
|
Friendship Machinery |
5 |
7 |
PLC |
|
Mitsubishi |
1 |
8 |
Button |
|
Omron |
1 |
9 |
Inverter |
|
Japan Fuji |
1 |
10 |
Hydraulic parts |
|
Germany or Italy |
1 |
3. Tools with machine
No. |
Name |
Specification |
Quantity |
1 |
Spanner |
For calibration wheel |
1 |
2 |
Spanner |
Leveling wheels |
1 |
3 |
Oiler |
|
1 |
4 |
Inner hexagon spanner |
9 pieces |
1 set |
5 |
Spanner |
8’’ |
1 |
6 |
Spanner |
10’’ |
1 |
7 |
Ruler |
150mm |
1 |
8 |
Plastic tool box |
200*200*400mm |
1 |
