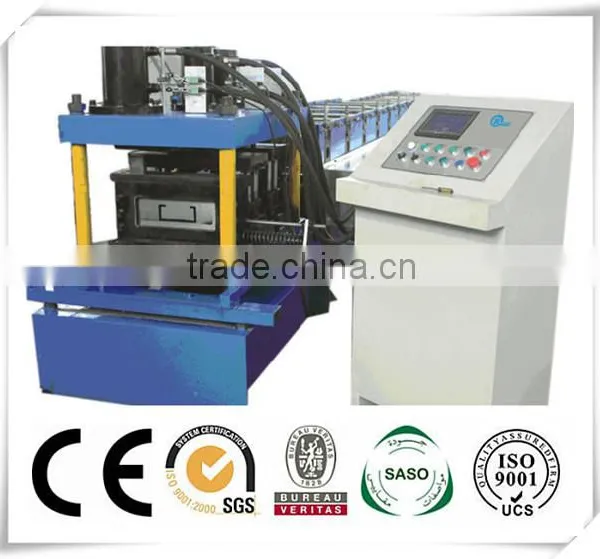

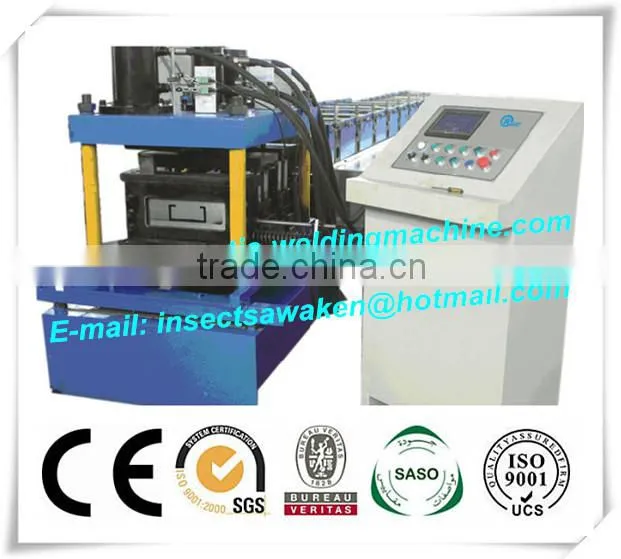

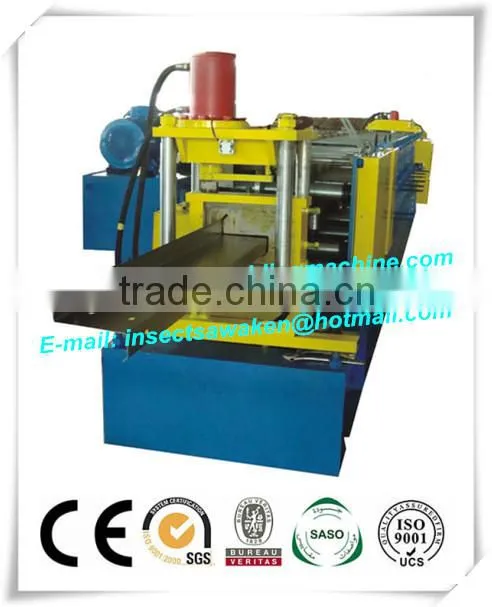

C Purlin Roll Forming Machine and Z Purlin Roll Forming Machine, C Section Profile Roll Forming Machine

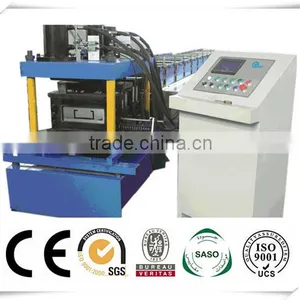

C Purlin Roll Forming Machine and Z Purlin Roll Forming Machine, C Section Profile Roll Forming Machine thumbnail-1
C Purlin Roll Forming Machine and Z Purlin Roll Forming Machine, C Section Profile Roll Forming Machine thumbnail-2
C Purlin Roll Forming Machine and Z Purlin Roll Forming Machine, C Section Profile Roll Forming Machine thumbnail-3
C Purlin Roll Forming Machine and Z Purlin Roll Forming Machine, C Section Profile Roll Forming Machine thumbnail-4
C Purlin Roll Forming Machine and Z Purlin Roll Forming Machine, C Section Profile Roll Forming Machine photo-1

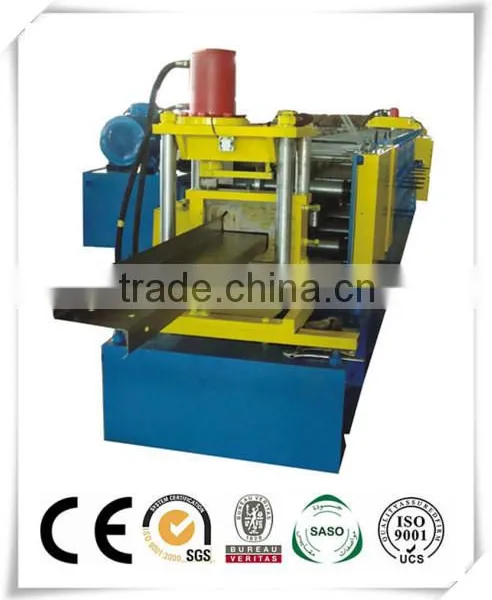

C Purlin Roll Forming Machine and Z Purlin Roll Forming Machine, C Section Profile Roll Forming Machine photo-2
C Purlin Roll Forming Machine and Z Purlin Roll Forming Machine, C Section Profile Roll Forming Machine photo-3
C Purlin Roll Forming Machine and Z Purlin Roll Forming Machine, C Section Profile Roll Forming Machine photo-4
US$ 30,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Business Type:
Manufacturer, Trading Company
Year Established:
2009
Factory Size:
3,000-5,000 square meters
Contact Supplier Request Quote Chat Now
Wuxi Friendship Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

1. Features
        Purlin is widely using in industry building. The line can forms C and Z shapes, just change the forming process within 15 minutes. And the machine capacity is much high than normal machine.

2. Line Specification
- Material: thickness from 1.5-3.0mm, width as design
- Decoiler: 3T/ 5T Decoiler
- Forming Station: 16 stations up to the profile
- Forming Speed: Maximum5 m/min
- Panel Run Out: Run Out Table/Auto Stacker
- Total Power: About 30 KW up to final design
- Total Installation Size: 25 * 3 m up to final design

3. Line Components
- 3T/ 5T Decoiler
- Guiding Device
- Leveling Device
- Forming System
- Punching Device
- Hydraulic Cutting Device
- Run Out Table/Auto Stacker
- Hydraulic Station
- PLC Control Box
- Movable Control Box
- Safety Cover (optional)





C purlin roll forming machine and Z purlin roll forming machine, C section profile roll forming machineC purlin roll forming machine and Z purlin roll forming machine, C section profile roll forming machineC purlin roll forming machine and Z purlin roll forming machine, C section profile roll forming machineC purlin roll forming machine and Z purlin roll forming machine, C section profile roll forming machineC purlin roll forming machine and Z purlin roll forming machine, C section profile roll forming machine
