1. Features:

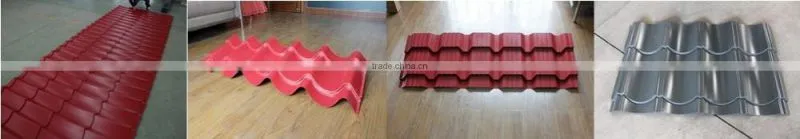

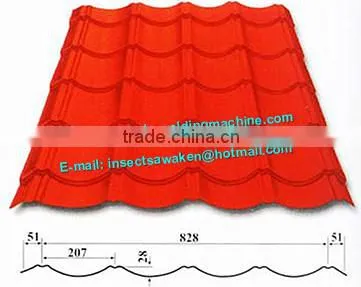

The roof tile panel is formed by roof tile forming machine from high quality coated sheet, which performs elegant style of traditional roof tile and suits for every architecture design. With light, strong strength and long lasting quality, also it is convenient and takes short time for installation.

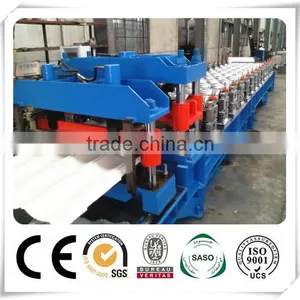

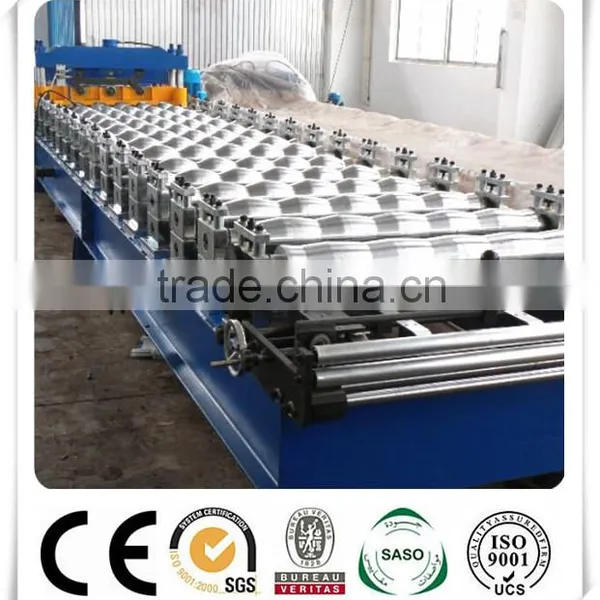

The line is for continuously roll forming and pressing step tile on series profile. The length is unlimited and step depth can be as customers’ requirement.
2. Line Specification:
- Suitable Material: thickness from 0.4-0.6mm PPGI/AL, width as the design
- Step Length: 100-400mm
- Decoiler: 5T/ 8T/ 10T
- Forming Station: 10-30 stations up to the profile
- Forming Speed: Maximum 30m/min
- Maximum Working Speed: 5.5m/min
- Panel Run Out: 12m Auto Stacker
- Total Power: About 30 KW up to final design
- Total Installation Size: (40-60) X 5 m up to final design

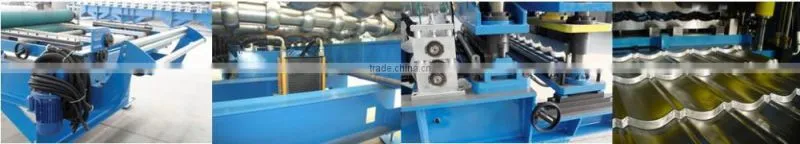

3. Line Components:
- 5T/ 8T/ 10T Decoiler
- Guiding Device
- Auto Pre-cutting Device
- Forming System
- Hydraulic Pressing Device
- Hydraulic Cutting Device
- Run Out Table/ Auto Stacker
- Hydraulic Station
- PLC Control Box
- Movable Control Box
- Safety Cover(optional)
