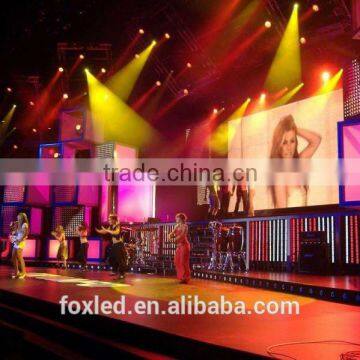

2015 New Production black beauty P5 LED Screen For Stage
- 3000 Square Meter / Square Meters per Month
- Shenzhen
- T/T Credit Card
- 60W UL CE LED Canopy Lamp with aluminum frame Ex-factory price from Shenzhen
- 80W Energy-Saving Gas Station LED Canopy Lamp hot sale from Shenzhen
- 60W UL CE Energy Saving LED Canopy Lamp with 3 years warranty from Shenzhen
- 2014 new design, led flood light, led Gas Station Lamp, LED canopy light 100w
- Led flood light, led Gas Station Lamp, LED canopy light 100w
- 120W High power cree led canopy lamp Wholesale from Shenzhen for gas staton
Product Details
Place of Origin: | Guangdong, China | Brand Name: | FOXGOLDEN | Model Number: | Black chip P5, P5 Black beauty LED display |
Usage: | Indoor | Tube Chip Color: | Full Color | Display Function: | Video |
Pixels: | Other, 5mm | Screen Dimension: | 6*4m |
Product Description
P5 Black Beauty LED screen
Specification:
Unit Module | Item | Parameter |
Model Number | P5 Black beauty LED display | |
Module size | 320mm*160mm | |
Pixel pitch | 5mm | |
Pixel configuration | 40000/Sqa | |
Pixel resolution | 64dots(W)*32dots(H) | |
Max Power consumption | 20W | |
Module thickness | 2CM | |
Weight | 0.2kg | |
Drive type | Constant drive | |
Scan mode | 1/16 scan | |
Port type | HUB75B | |
Brightness of white balance | ≥2000cd/Sqm | |

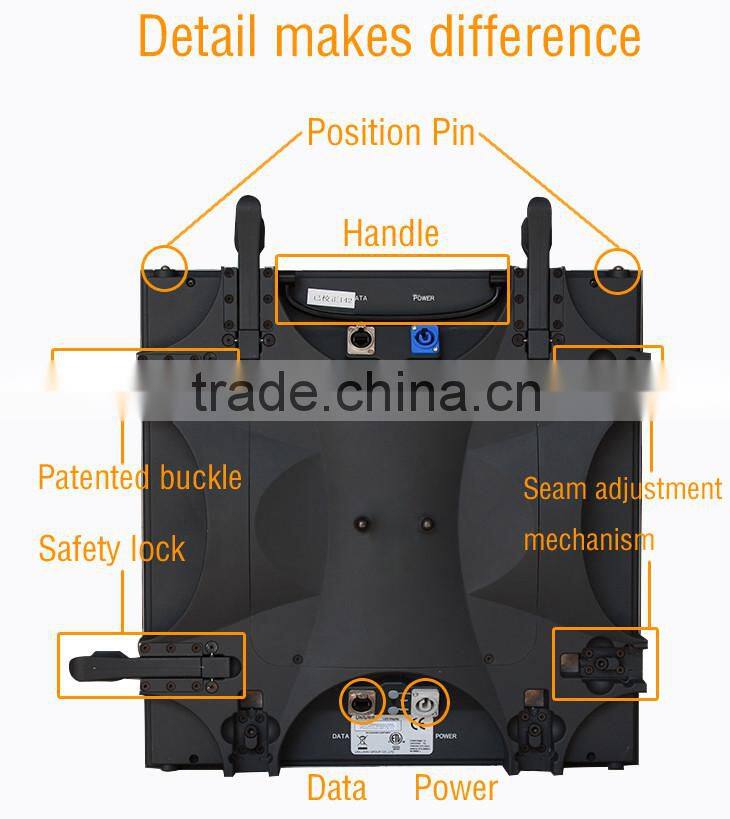

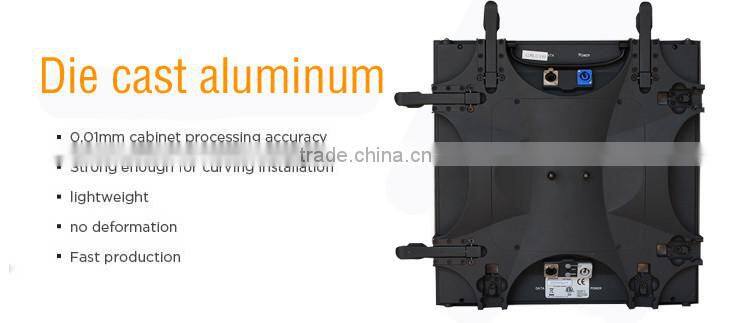

LED Cabinet | Dimension | 640mm*640mm |
Quantity of Module | 8 | |
Power supply | 5V/40A 5V/60A | |
Pixel per cabinet | 128*128 | |
Best viewing distance | 2M~5M | |
Best viewing distance | 160°(W) 120°(H) | |
Temperature | storage:-35℃~+85℃ working:-20℃~+50℃ | |
Operation humidity | 10%-95% | |
Power | Working voltage | AC220V±10% |
Average Power consumption | 220W/H | |
Max.Power consumption | ≤500W/sqm | |
Current | ≤15mA(single LED) | |
Control system | CPU | Pentium4 or above P4 |
Operation system | XP/WIN7/8 | |
Control method | Synchronization | |

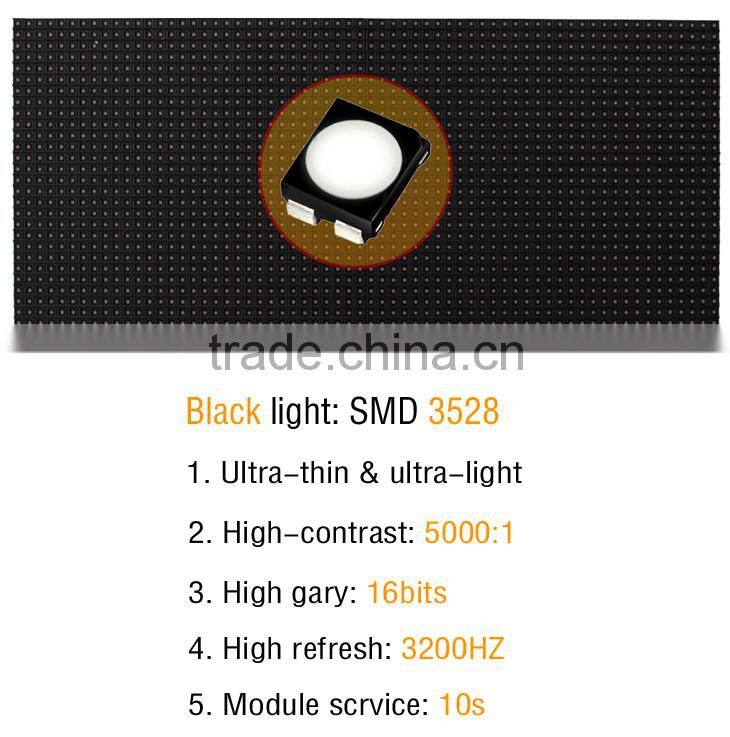

Main technical parameter | LAMP | black light SMD 3528 |
Driving device | MBI5020 | |
Refresh frequency | ≥3200HZ | |
Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
MTBF | ≥100000hours | |
Power switch | Automatic switch |
FOXGOLDEN GROUP LTD ()is a professional high quality LED display manufacturer.
Since 2004, we have been dedicating to the aim that producing high quality products, and now FOXGOLDEN has been well integrated in terms of R&D, produce, project, capital and marketing.
On October 13th, 2015, FOXGOLDEN became official listed company at Shenzhen equity trading Center in Shenzhen. equity code is 666153, which is another promising take-off of FOXGOLDEN .
On December, 2015, we introduce risky investment capital. From Feb to Oct , 2017, we will begin internal share reformation to realize new three-board listed into market.
On December, 2018, we transfer successful IPO board and realize the main board or created board listed on the market. FOXGOLDEN is 9th listed company in domestic LED display industry and ranked 9th from all aspects.
As one of the professional manufacturers of LED industry, FOXGOLDEN Group Limited has a high quality, professional and strong production team, market-oriented, constantly innovate based company not only manufacturing technology in traditional LED display screen, constantly improve product cost benefit and market competition,
but in the special use of the display technology has a breakthrough. The absolute performance and competitive price to the perfect combination, the LED display screen to every corner of the world,
the market at home and abroad to win wide reputation.
At present, Foxgolden Group Limited has formed a series of LED display products:
outdoor LED display, indoor LED display, portable LED screen, foldable LED screen, soft LED screen rental LED display, stadium LED display, small pitch pixel LED display etc..
We have 11-year production experience. We have 11-year design experience of offering solution, installation, and after-sales service, etc.
Faced with a variety of requirements, we offer flexible diverse solutions. We offer 24-hour all-direction online service.
We achieve customer complaint rate below 0.1% and win widespread high praise and good reputation from customers and public.
Payment terms: | 35% deposit before production, 65% balance before shipping -T/T: -Paypal -Western Union -Escrow |
Packing: | -Standard Export Carton with fully Polyfoam or Pearl Wool -Flight case; -Anti-shaking wooden case |
Shipping: | LED module: 3 to 5 working days upon receiving deposit payment LED display: 5 to 8 working days upon receiving deposit payment |
After-Sales-Service: | -Lifetime with professional engineer support. problem |
1. Guarantee
(1) We guarantee all our displays, modules, parts for two full year. During this time, we will replace or remand our goods for free if there is something wrong with them.
(2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call, MSN or other ways for free.
4. Documents and Certification
(1) We provide the operation manual, software, test report and so on.
(2) We can also provide all kinds of certification such as CE, UL and so on.
5. CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
(2) We will send our engineers to your place if we are expected after our negotiation.
6. Additional service
(1) We provide you the forwarding information, and some other information such as flight box, structure information for your reference for free.
FAQ:
Q1: When is the delivery time?
A1: we will accomplish manufacturing within 10 days after receiving the deposit.
Q2: What is the payment method?
A2: We support a variety of payment methods, the most common is the TT.
Q3: What's the pixel pitch for Outdoor LED Display Screen?
A3: Outdoor (P6mm / P8mm/P10mm)
Q4: Where is it used for?
A4: Outdoor & rental use. Widely used for backdrop of staging event, rental business, live show, concert, etc.
Q5: Can it play HD video?
A5: Yes, it can realize HD video function with Linsn controlling system.
Q6: What's the controlling system?
A6: Our standard controlling system for this model is Linsn, Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.
Q7: How about the size of project?
A7: Please offer the size with "width by height" of project. We will offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
Q8: How about your service?
A8:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
