Realiable Outdoor SMD Full Color LED Display Screen (P6)
Realiable Outdoor SMD Full Color LED Display Screen (P6)
1. Brightness: ≥6000cd/m2
2. Average power consumption: ≤450W/m2
3. Manufacturer: over 10 years
4. Quick response: replying inquiry within 12hrs
5. On time delivery + patient after-sales service
6. Quality guarantee: CE, RoHS, FCC, IP65, ISO9001 + 100% testing before shipping.
P10 outdoor SMD full color led display is popular for outdoor led screen.
We have series of SMD led module for outdoor using.
P5 SMD2727 Brightness: ≥6000cd/m2
P6 SMD3535 Brightness: ≥6000cd/m2
P8 SMD3535 Brightness: ≥6800cd/m2
P10 SMD3535 4S Brightness: ≥5500cd/m2
P10 SMD3535 2S Brightness: ≥7000cd/m2

BrilliantOpto Co.,Limited [JingCai (Fujian) Optoelectronics Co., LTD] specialized in the development and manufacture of LED display system products.Founded in 2005, with the registered capital 20.18 millionRMB, owns workshop area 40,000 m2. Branched offices and agents all over China, with about 400 employees, including 21 engineers and 5 of them are senior.
Main products:single & dual color LED display and full color LED display for indoor/outdoor use.The products can pass CE, RoHS, FCC, IP65, ISO9001 certifications, etc,.
Our technology strength is among the front row in this industries, with a professional team. Strictly quality control, good after sale service and quickly delivery.
Through our efforts, our products have been sold well in Europe, North/South America, Australia, the Middle East and Southeast Asia. Welcome to contact Brilliant Opto today!
2015 LED China Exhibition in Shanghai
Product specification:
Realiable Outdoor SMD Full Color LED Display Screen (P6)
|
Pixel Pitch |
6mm |

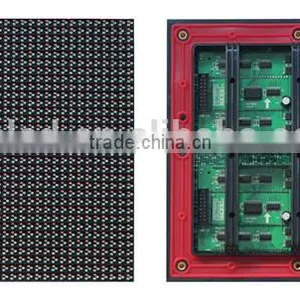

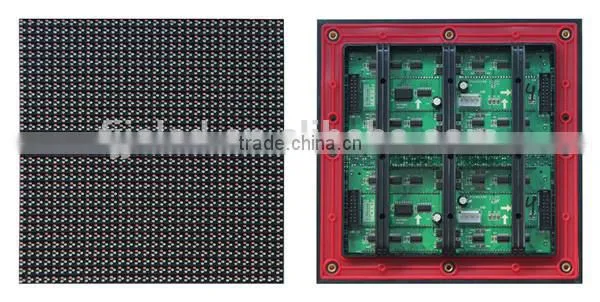

| Module Size(W×H) | 192mm*192mm |
| Module Resolution(W×H) | 32*32dots |
| Pixel Density | 27,777 (dots/ m2) |
| Lamp Origin | Epistar |
| Pixel Configuration | 1R1G1B |
| Led Specification | SMD3535 |
| Gray Level/ Color | 65536 lever |
| Brightness | ≥6000cd/m2 |
| Best view angle | Horizon: 120° Vertical : 90° |
| Control method | asynchronous/synchronous |
| Scanning method | 1/8 constant voltage |
| Power consumption | Average: 450w/m2 Max :1200w/m2 |
| Best viewing distance | 5~100m |
| Lifespan | ≥100,000 H |
| MTBF | ≥10,000H |
| Frame frequency | ≥60HZ |
| Refresh frequency | ≥300HZ |
| System Working Temperature | -20°C ~ 50°C |
| System Working Humidity | 10 ~ 90%RH |
| Power | 5V/40A |
| Module weight | 370g/pcs |
| Brightness control lever | 0 ~ 100 lever |
| Maintenance way | Rear access |
| Environment temperature | -40°C ~ +85°C |
| Suitable voltage | DC5V |
| Spending card | kilomega network card |
| Video signal | PAL/NTSC |

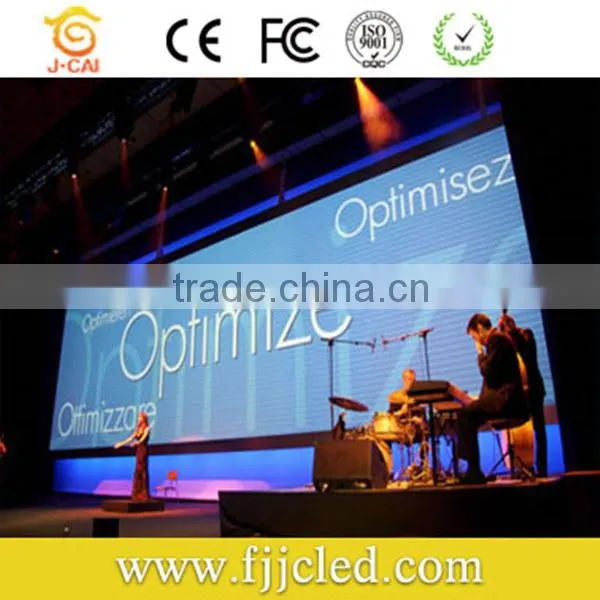

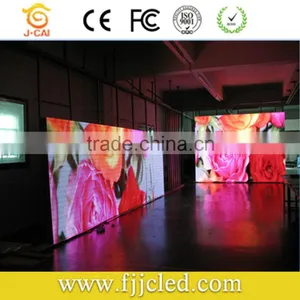

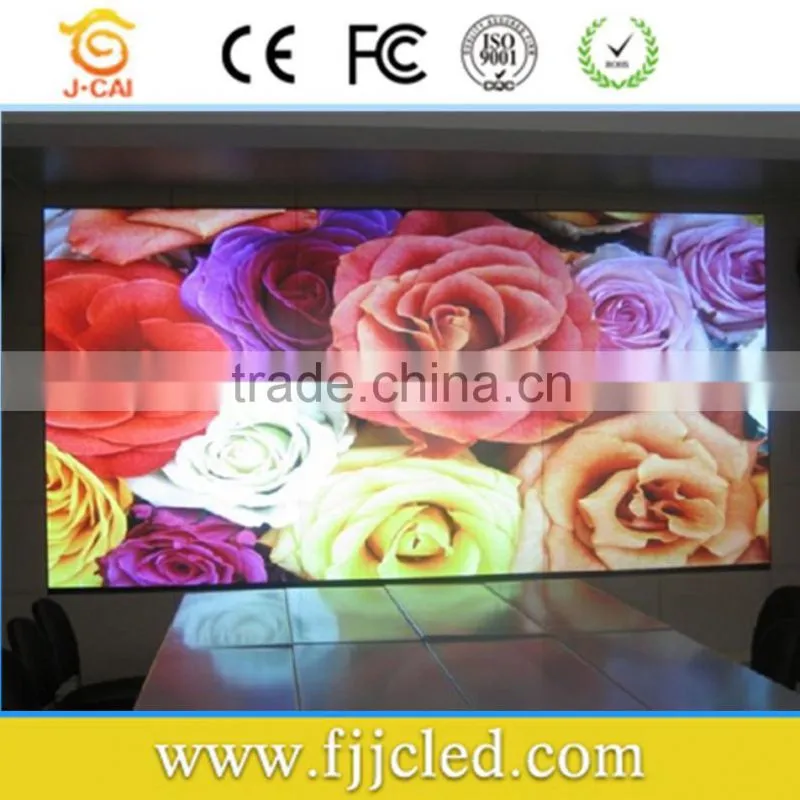

Realiable Outdoor SMD Full Color LED Display Screen (P6) Project Show:
Products list:
1. P1.9/P2.5/P3/P4/P5/P6...Indoor full color led display;
2. P5/P6/P6.6.7/P8/P10/P12/P12.5/P16/P20/P25...Outdoor full color led screen;
3. Indoor/outdoor/semi-outdoor single/dual color led panel etc.
Product advantages:
1. Price Advantage: We have the best competitive price at the market, also have the same even better quality.
2. Quality advantage: From material to finished product, from design to produce, we control all steps
3. Service advantage: Better service at same situation, better cooperation at same service.
4. We ensure that our products are the CE certified, ROHS compliant, FCC identified and passed the system of ISO 9001.
Our features:
Realiable Outdoor SMD Full Color LED Display Screen (P6)
1. Good price
Our price is 10% lower than the market because of the introduction of full automatic production line with the characteristics of reducing the cost of labor and management.
2. Lightweight
Aluminum cabinet greatly saving freight cost and conveniently installing.
3. Stable performance
Our most basic guarantee: the aging time exceeding 24 hours. Malfunction dot ratea
less than 0.0001. MTBF more than 1000 hours.
4. Best quality LED chip tube
The GREE, SILAN, OPTO, EPISTAR assuring high brightness and long lifespan.
5. Supporting different formats of images and videos
Flash, WAV/MIDI, Videos from TV and other equipments.
6. Quality insured by CPIC and 2-year QA.
Factories and Equipment:
Here is the place we produce and assembly our products.
With workers’ integration, coordination and full heart efforts, plus our strict
management and quality control, customers can always get the best satisfactory
products and service.
This is our aging area, our product have 72hours aging time before into warehouse. Strictly quality control to ensure our product meet your requirements.

Company certifications:
Realiable Outdoor SMD Full Color LED Display Screen (P6)
Certifications stand for our authority, strength and difference from others.
Certifications declare our responsibility for people, environment and society.
We will spare no effort to make better achievements.
Warehouse and Package:
Realiable Outdoor SMD Full Color LED Display Screen (P6) will be packed by carton, wooden cabinet or flight cabinet, according to your requirement.
1. What is screen size and what cabinet you prefer.
3. For fixed or rental installation.
4. When do you need to get goods and is it urgent or not.
