small spacing HD and high density P1.25 LED screen
- 3000 Square Meter / Square Meters per Month
- Shenzhen
- T/T Credit Card
- 60W UL CE LED Canopy Lamp with aluminum frame Ex-factory price from Shenzhen
- 80W Energy-Saving Gas Station LED Canopy Lamp hot sale from Shenzhen
- 60W UL CE Energy Saving LED Canopy Lamp with 3 years warranty from Shenzhen
- 2014 new design, led flood light, led Gas Station Lamp, LED canopy light 100w
- Led flood light, led Gas Station Lamp, LED canopy light 100w
- 120W High power cree led canopy lamp Wholesale from Shenzhen for gas staton
Product Details
Place of Origin: | Guangdong, China | Brand Name: | FOXGOLDEN | Model Number: | small spacing-P1.25 |
Usage: | Indoor | Tube Chip Color: | Full Color | Display Function: | Video |
Pixels: | Other, 1.25mm | Screen Dimension: | 400X300X120mm |
Product Description

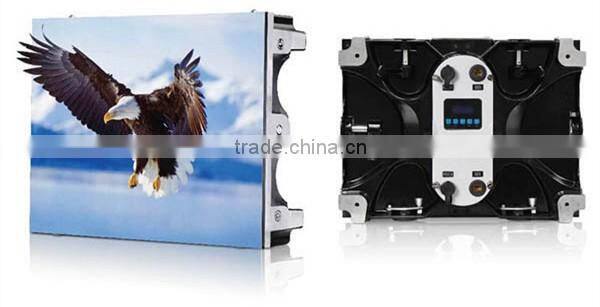

small spacing HD and high density P1.25 LED screen
small spacing led display project:
Model | FOX-P0.8 | FOX-P1.25 | FOX-P1.9 | FOX-P2.5 |
LED Type | 0808 3in1 SMD | 0808 3in1 SMD | 0808 3in1 SMD | 1010 3in1 SMD |
LED driving method | 1/16, 1/32 | 1/16, 1/32 | 1/16 | 1/16 |
Board Pixels | 500*375 | 320X240 | 210*157 | 160*120 |
LED board size(mm) | 400*300*12 | 400*300 | 400*300 | 400*300 |
Normal Cabinet size | 400*300*12 | 400*300*12 | 400*300*12 | 400*300*12 |
Net weight | 6.5kg | 6.8kg | 7.2kg | 7.6kg |
Power | AC220/110 ± 10%, 47~63Hz | |||
Water proof | IP31 | |||
Consumption | ≤450W/m2 | |||
Viewing angle (W*H) | 160° / 160° | 160° / 160° | 160° / 160° | 160° / 160° |
Brightness | 600 cd/m2 | 600 cd/m2 | 700 cd/m2 | 1000 cd/m2 |
Pixel density | 1562500dots/m2 | 640000dots/m2 | 277008dots/m2 | 16000dots/m2 |
Operating temperature | -20ºC to +80ºC | |||
Operating humidity | 10% to 95% | |||
Lifetime (50%brightness | 100,000 hours | |||
Refresh rate | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
Module weight | 1.6kg | 1.6kg | 1.8kg | 1.8kg |
Brightness level | Manual 100 levels,automatically 16 levels. |
Advantage:
Exclusive visual feast, Technical peak

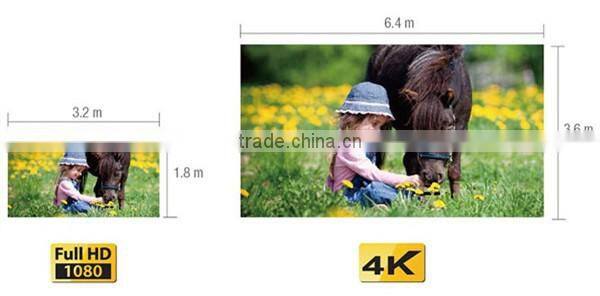

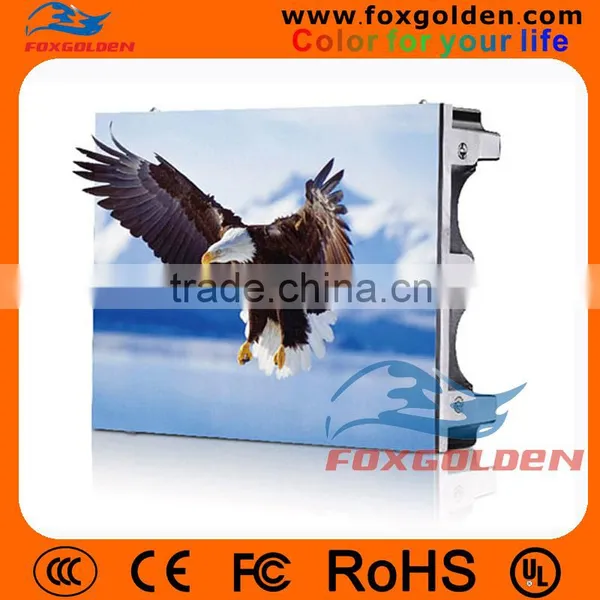

High resolution brings delicate display effect, and it is a perfect embodiment of the new generation of ultra-high-definition LED display technology. Pixel pitch is 1.25mm.

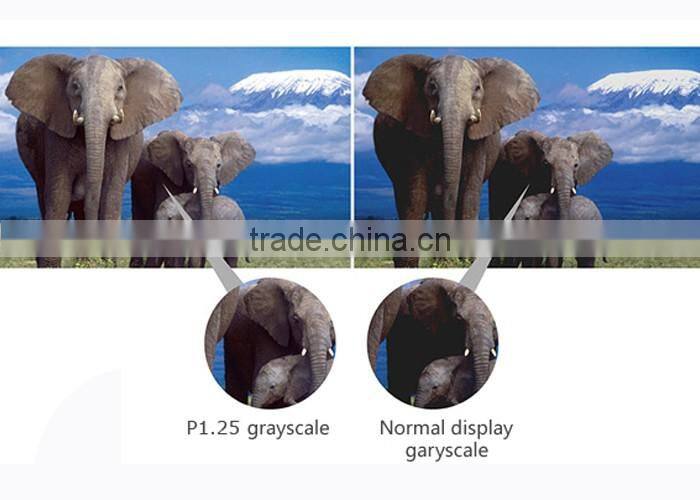

Low brightness with high gray level, more delicate display performance

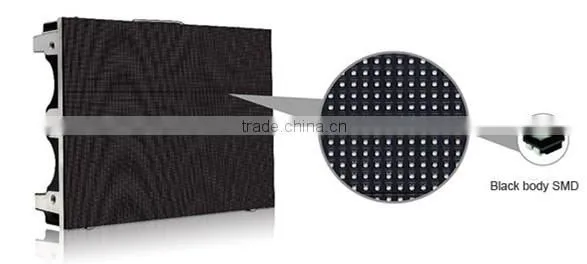

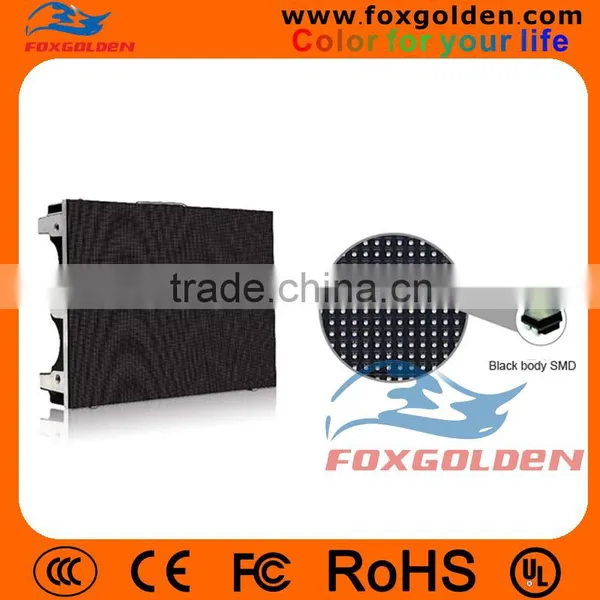

Adopt high-quality LED blackbody SMD lamp with black mask, the contrast ratio is up to 3000: 1, and the picture is clearer and vivider;
Low brightness with high gray level, more delicate display performance
Adopt high-quality LED blackbody SMD lamp with black mask, the contrast ratio is up to 3000: 1, and the picture is clearer and vivider;

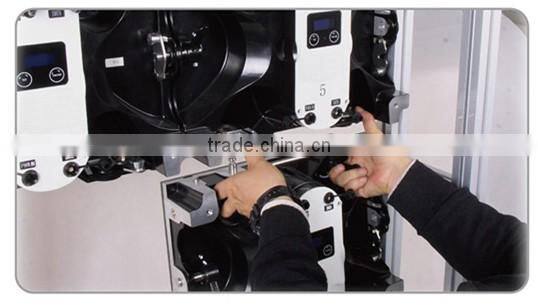

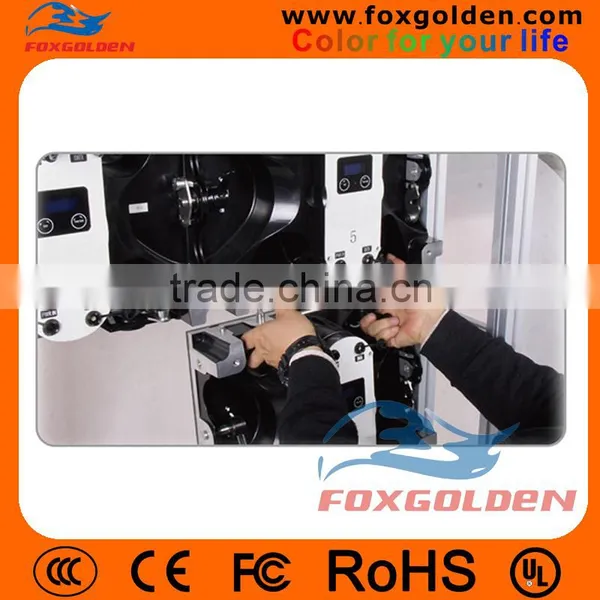

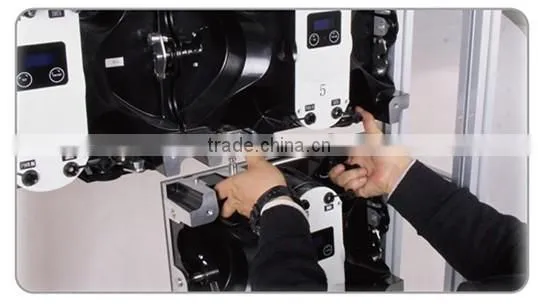

Seamless splicing and installation type to assemble screen freely
Patented connecting piece, and hang pin rotating at 120 degree to lock the case, and gap adjustable to ensure the seamless screen, and rapid installation and removal supported. Only 1/4 of installation time compares with traditional structure.
High contrast and high image quality
High quality LED lamp with black body structure and black lamp mask to provide 3000:1 contrast and clearer and more bright-colored image

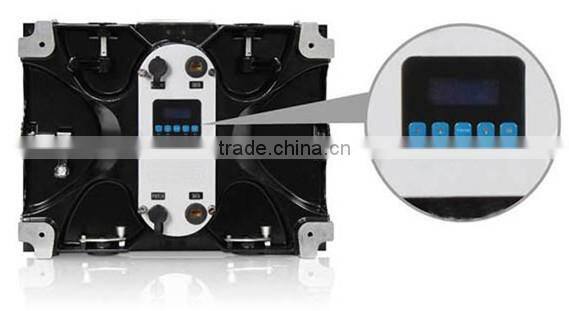

User-friendly LED information window
LCD window able to real-time display operating condition (voltage, operating item, version number, screen temperature), built-out test key to detect the illumination of the display screen, and change of red, green, blue, white and other scene for testing
Appcations:
Delivery Time and packing:
1. Delivery time: Accomplish manufacturing within7- 15 days after receiving the deposit.
2.Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.
3.Package:(1)carton (2) anti-shaking wooden case (3) flight case
Payment terms: | 35% deposit before production, 65% balance before shipping -T/T: -Paypal -Western Union -Escrow |
Packing: | -Standard Export Carton with fully Polyfoam or Pearl Wool -Flight case; -Anti-shaking wooden case |
Shipping: | LED module: 3 to 5 working days upon receiving deposit payment LED display: 5 to 8 working days upon receiving deposit payment |
After-Sales-Service: | -Lifetime with professional engineer support for free. has quality problem |
On Oct 10thfd, 2015, FOXGOLDEN begin to went into capital market and step into official listed company, stock code: 666153.
Thanks for 12-year customer support on FOXGOLDEN always.
Thanks for 12-year meterial supplier support on FOXGOLDEN always.
Thanks for 12-year FOXGOLDEN family constant effort and hard work.
We have 12-year production experience, We have 12-year design experience of offering solution, installation, and after-sales service, etc. According to different environment conditions, too cold temperature till -40℃ or too hot temperature till +55℃, we carefully choose different suitable materials and make the best offer for every customer. It differs in cables, LED lamps, plastic masks, waterproof materials, IC, etc. Faced with a variery of requirements, we offer flexible diverse solutions. We offer 24-hour all- direction online service.
As said by Jack Ma, the president of Alibaba group, it is the time of 3 wins. The meaning of FOXGOLDEN official website is WIN-WIN-WIN. WIN FOR CUSTOMERS; WIN FOR SUPPLIERS; WIN FOR FAMILIES. COM: COMING.
So means win-win-win, FOXGOLDEN has been coming to do it.
We are a young team, whose average age is 26.6 years old. Thanks, ercourage, and effort always accompany us. Looking back to yesterday. We live Today, and will move towards better promising Tomorrow.
---------------------------------
Email: info @foxgolden.com
Whats App: +86 15118019850
Welcome to contact us if you need more information or have any specialized inquiry. Thank you!!!
