Factory Wholesales P4 Led Module Indoor Full Color Led Display Module

Factory Wholesales P4 Led Module Indoor Full Color Led Display Module thumbnail-1
Factory Wholesales P4 Led Module Indoor Full Color Led Display Module photo-1
US$ 18.5 - 22.5 MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
FOXGOLDEN
Model Number:
FOX-Indoor p4-32*32
Contact Supplier Request Quote Chat Now
Foxgolden Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name FOXGOLDEN
Model Number FOX-Indoor p4-32*32
Usage Indoor
Tube Chip Color Full Color
Display Function Video
Pixels Other, 4mm
Screen Dimension 3*2m

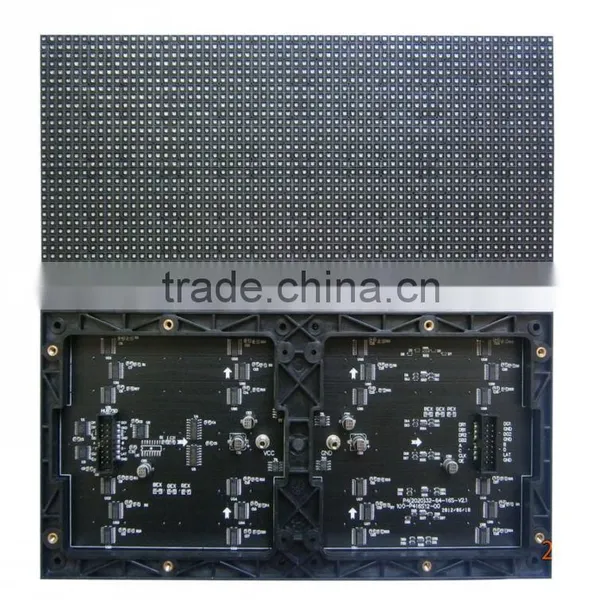

P4 SMD LED module







 p4 SMD LED display




Technicail Specification



Item

Indoor p4 Full color advertising  led display

 Pixel

Pixel pitch: 4 mm

Pixel configuration: 1R1G1B

Wave length:  Red: 625±2nm  Green: 525±2nm  Blue: 470±2nm

Module resolution: 64×32 pixels

 Module

Module size: 256mmx128mm

Cabinet size:  960mm×960mm×150mm

Cabinet material: Iron or Aluminum

Gross weight: 40kg/sq.m

Module quantity: 36pcs= 6(w) x 6(h)

Power consumption : Max.:900W/m²    Average:700W/m²

Screen parameter

Drive method:  1/4 Constant Current

Brightness: 5500cd/m²

IC driver: MBI5020,From Taiwan

Density: 20000 pixel/m²

Whole display flatness: ≤ 1mm juncture

Best view distance: ≥ 5M

Viewing angle:  Horizontal:   140°       Vertical:  140°

Humidity(RH): ≤ 90~95%

Working temperature: from -30°C~ +60°C

Working voltage: AC220V/110V±20%

Refresh frequency:  ≥ 300Hz(Linsn)

Protection grade: IP45

MTBF: More than 10000hrs

Life time: 100,000 hrs






Factory Tour











Package:





Packing & Shipping:

Trade Terms:



Payment terms:

-Sample Charge: T/T or Western Union
-35% deposit before production, 65% balance before shipping

-Paypal; Western Union

Packing:

-Standard Export Carton with fully Polyfoam or Pearl Wool

-Flight case;

-Anti-shaking wooden case;

Shipping:

-Delivery within 10-15 working days upon receiving deposit payment

After-Sales-Service:

-Lifetime with professional engineer support.
-Within 1 year, supply spare parts for free if the machine has quality

problem





Our service:



1. Guarantee



(1) We guarantee all our displays, modules, parts for two full year. During this time, we will replace or remend our goods for free if there is something wrong with them.



(2) We will provide maintenance for a lifetime and charge for the raw materils only.



2. Technology Training



(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.



(2) We will send our engineers to your country by negotiation.



3. Maintenance and Consulation



(1) We provide full maintenance for a lifetime and charge for the raw materials only.



(2) We also provide lifetime consulation by E-mail, call, MSN or other ways for free.



4. Documents and Certification



(1) We provide the operation manual, software, test report and so on.



(2) We can also provide all kinds of certification such as CE, UL and so on.



5. CAD Drawing and Fixing



(1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.



(2) We will send our engineers to your place if we are expected after our negotiation.



6. Additional service



(1) We provide you the forwarding information, and some other information such as flight box, structure information for your reference for free.
















 Welcome to contact us if you need more information or have any specialized inquiry. Thank you!!!
