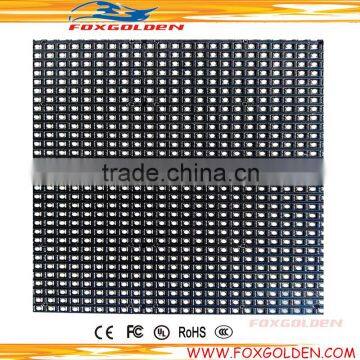

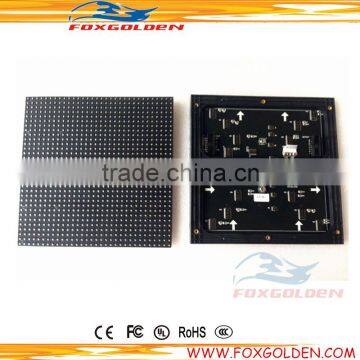

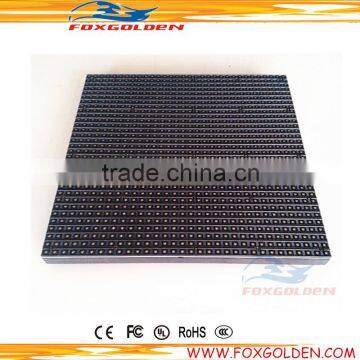

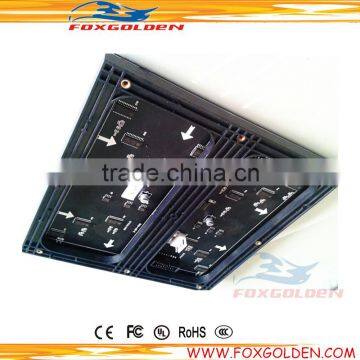

FOXGOLDEN best price P6 indoor led display screen

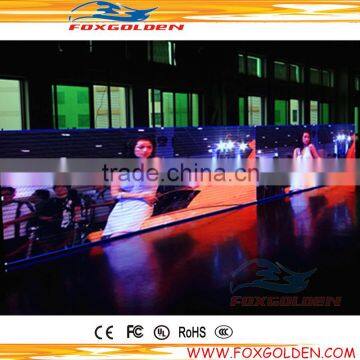

Outdoor led display project:
Specification:
| Model | FOX-P4(DIP) | FOX-P6 | FOX-P8 (SMD) | FOX-P10 | |
| Module | Pixel Pitch (mm) | 4 | 6 | 8 | 10 |
| LED Lamp Model | DIP 246 | DIP 246 | SMD 3535 | DIP 246 | |
| Model Size (mm) | 256*128 | 192*192 | 32*16 (W*H) | 16*16 (W*H) | |
| Model Pixel (dot) | 64*32 | 32*32 | 256*128*25 | 160*160mm | |
| PCB Board Type | Separate Design | ||||
| Driving Mode | Constant current | ||||
| Scaning | 1/16 | 1/4 | 1/4 | 1/4 | |
| HUB Board | HUB75 | HUB08/HUB75 | HUB75 | HUB75 | |
| Cabinet | Standard Cabinet Size (mm) |
512*512*120 | 960*960*120 | 1024*1024*120 | 960*960*120 |
| Cabinet Pixel | 128*128 | 160*160 | 128*128 | 96*96 | |
| Cabinet Module Number | 4*8 | 5*5 | 4*8 | 6*6 | |
| Power Supply Specification |
5V 40A/5V 60A/5V 100A | ||||
| IP Grade | IP65-67 | ||||
| Display | Pixel Density (dot/m2) | 62500 | 27777 | 15625 | 10000 |
| Brightness (cd/m2) | ≥7000 cd/m2 | ≥7000 cd/m2 | ≥7000 cd/m2 | ≥7000 cd/m2 | |
| Max Consumption | 1000 | 1200 | 1000 | 1000 | |
| Average Consumption | 500 | 600 | 480 | 480 | |
| Best Viewing Distance (m) |
4-150 | 6-150 | 8-150 | 10-150 | |
| The Horizontal and Vertical Perspective |
120/100 | ||||
| System Specification |
Drive IC Model | MBI5124 | |||
| Control Mode | Synchronization or Asynchronization | ||||
| Max Refresh Rate | 2800 | ||||
| Max Gray Level | 8192 (13bit) - 65536 (16bit) | ||||
| Repetition Frequency (HZ/s) |
60 | ||||
| Brightness Adjustment | 256 Grade | ||||
| Signal Input (with video processor) |
HDMI, DVI, VGA, RF, S-Video, RGB, RGBH, YUV, YC&Conposition, etc | ||||
| Communication Way | Net cable/SMF(signle mode fiber)/MMF(multi mode fiber) | ||||
| Communication Distance (m) |
100/500/1000 | ||||
| Operation Parameter |
Working Voltage | AC110V/220V±10% 50HZ | |||
| Working Temperature | -20~+80 | ||||
| MTBF (MON) | 38 Months | ||||
| Life Span Time (Y) | 11 Years | ||||
Application of Outdoor led display :
1. Guarantee
(1) We guarantee all our displays, modules, parts for two full year. During this time, we will replace or remand our goods for free if there is something wrong with them.
(2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call, MSN or other ways for free.
4. Documents and Certification
(1) We provide the operation manual, software, test report and so on.
(2) We can also provide all kinds of certification such as CE, UL and so on.
5. CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
(2) We will send our engineers to your place if we are expected after our negotiation.
6. Additional service
(1) We provide you the forwarding information, and some other information such as flight box, structure information for your reference for free.
Delivery Time and packing:
1. Delivery time: Accomplish manufacturing within7- 15 days after receiving the deposit.
2.Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.
3.Package:(1)carton (2) anti-shaking wooden case (3) flight case
FOXGOLDEN GROUP LTD ()is a professional high quality LED
display manufacturer. Since 2004, we have been dedicating to the aim that producing
high quality products, and now FOXGOLDEN has been well integrated in terms of
R&D, produce, project, capital and marketing.
On October 13th, 2015, FOXGOLDEN became official listed company at Shenzhen
equity trading Center in Shenzhen. equity code is 666153, which is another promising
take-off of FOXGOLDEN .
We have 11-year production experience. We have 11-Year design experience of offering solution, installation, and after-sales service, etc. Faced with a variety of requirements, we offer flexible diverse solutions.
We achieve customer complaint rate below 0.1% and winwidespread high praise and good reputation from customers and public.
Q1: When is the delivery time?
A1: we will accomplish manufacturing within 10 days after receiving the deposit.
Q2: What is the payment method?
A2: We support a variety of payment methods, the most common is the TT.
Q3: What's the pixel pitch for Outdoor LED Display Screen?
A3: Outdoor (P6mm / P8mm/P10mm)
Q4: Where is it used for?
A4: Outdoor & rental use. Widely used for backdrop of staging event, rental business, live show, concert, etc.
Q5: Can it play HD video?
A5: Yes, it can realize HD video function with Linsn controlling system.
Q6: What's the controlling system?
A6: Our standard controlling system for this model is Linsn, Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.
Q7: How about the size of project?
A7: Please offer the size with "width by height" of project. We will offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
Q8: How about your service?
A8:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
