Specifications
stone machine as polishing granite platepassed CE and ISO9000
adopts PLC terminal control

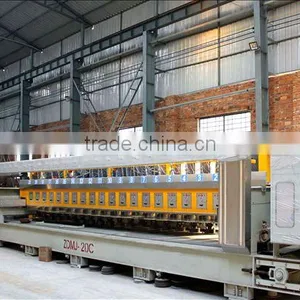

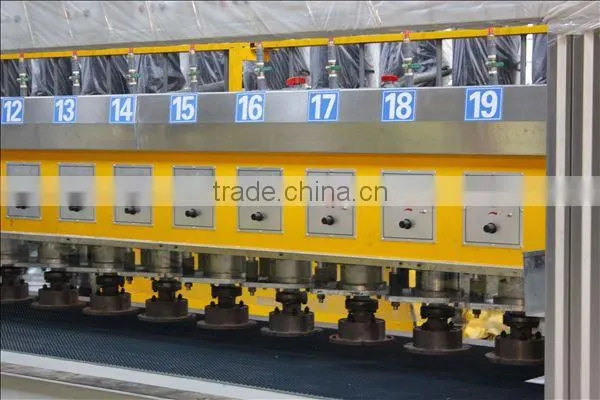

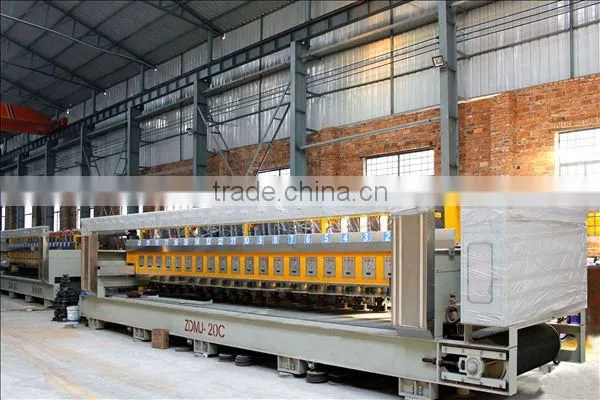

stone machine as polishing granite plate
1,It poccesses features as full automatic operation, fast processing speed and easy handling.
2,It uses resin grinding disc,which is light,less-power consumed and high-polishing efficient.
3,The machine's power consumption is only 1/3 comparing with traditional continuous polishing machines.
4,Control system adopts PLC terminal control with LCD touch screen terminal for parameter setting and fault prompts.
5,Elevation of polishing head and pressure of grinding is controlled by air pressure and is ajustable.
6,The machine is equipped with variable-frequency adjustable speed system for the grinding speed and the conveyor speed's adjustment.
Xingyi Polishing Machine Co.,Ltd.
Two models for your references as below:
Product type |
ZDM24C/0.9 |
ZDM24C/1.2 |
Number of grinding head |
24 |
24 |
Power of main motor |
7.5KW |
7.5KW |
Total power |
201.75kw |
201.75kw |
Grinding head diameter |
200 |
200 |
Grinding plate width |
900 |
1200 |
Grinding plate depth |
10-50 |
10-50 |
Beams swing speed |
3-35m/min |
3-35m/min |
Speed into the boards |
1-3m/min |
1-3m/min |
Cooling water pressure |
0.1-0.15Mpa |
0.1-0.15Mpa |
Water consumption |
25m3/h |
27m3/h |
Air supply pressure |
0.8Mpa |
0.8Mpa |
Weight |
160000kg |
190000kg |
Dimension(LXWXH) |
12800x2700x2300 |
12800x2700x2300 |
1.Warranty(Non artificial damage): 6 months for spare parts;12 months for main parts.
2.Engineers available to service overseas.
3.Special customized design is available.
XINGYI(CHINA)POLISHING MACHINE CO.,LTD.
Address1: NO.C2,Area 11,Anping Development Area,Quanzhou City,Fujian Province,china.
Address2: Kemu Industrial Area,Anhai Town,Jinjiang City,Fujian
Tel: +86-595-36792992
Web:
Welcome to visit our factory.
Kindly let me know, if you need more info.
Skype: xingyistone06
