Specifications
Granite slab stone polisher:1.passed CE and ISO9000
2.can cut hard stone
3.85 degree gloss polishing effect
Granite slab stone polisher
1.The machine possesses features full automatic operation, fast processing speed and easy handling.
2.It uses resin grinding disc,which is light,less-power consumed and high-polishing efficient.
3.The machine's power consumption is only 1/3 comparing with traditional continuous polishing machines.
4.Control system adopts PLC terminal control with LCD touch screen terminal for parameter setting and fault prompts.
5.Elevation of polishing head and pressure of grinding is controlled by air pressure and ajustable.
6.The polishing process is all automatic,for the polishing heads are able to recognize the shape of slabs intelligently.
Specifications
| Product type | ZDM24C/0.9 | ZDM24C/1.2 |
| Number of grinding head | 24 | 24 |
| Power of main motor | 7.5kw | 7.5kw |
| Total power | 201.75kw | 201.75kw |
| Grinding head diameter | 200mm | 200mm |
| Grinding plate width | 900mm | 1200mm |
| Grinding plate depth | 10-50mm | 10-50mm |
| Beams swing speed | 3-35m/min | 3-35m/min |
| Speed into the boards | 1-3m/min | 1-3m/min |
| Cooling water pressure | 0.1-0.15Mpa | 0.1-0.15Mpa |
| Water consumption | 25m3/h | 27m3/h |
| Air supply pressure | 0.8Mpa | 0.8Mpa |
| Weight | 16t | 19t |
| Dimension(L×W×H) | 12800*2700*2300(mm) | 12800*2700*2300(mm) |
Detailed pics
Close-up view
Conveyor:auto-slab feeding

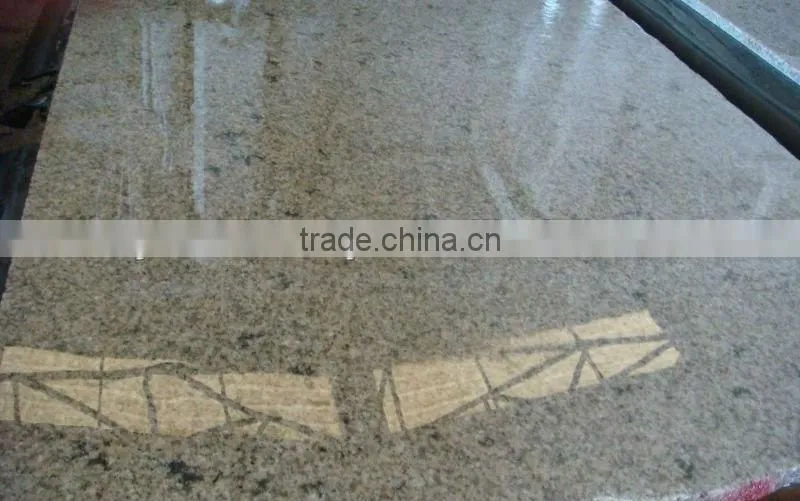

Polishing effect
Granite slab stone polisher is covered by thick plastic film,then reinforced by iron wire,shipping by 40ft container.

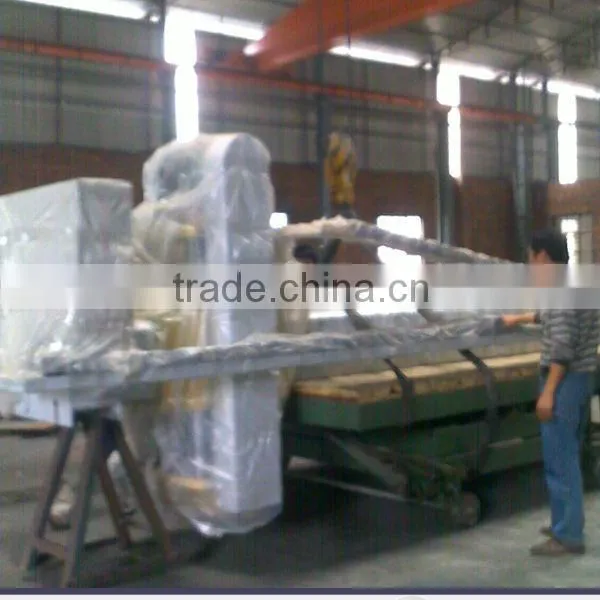

Packing pics
The machine is sending to Thailand.
The machine is covered with thick plastic films.
1.Warranty(Non artificial damage): 6 months for spare parts;12 months for main parts.
2.If you requires we will send installation person for you to help install the machine and teach you how to operate it.
3.Special customized design is available.
Certificate
XINGYI(CHINA)POLISHING MACHINE CO.,LTD.
Address1: NO.C2,Area 11,Anping Development Area,Quanzhou City,Fujian Province,china.
Address2: Kemu Industrial Area,Anhai Town,Jinjiang City,Fujian
Tel: +86-595-36792992
Web: www.xymachinery.en.china.cn

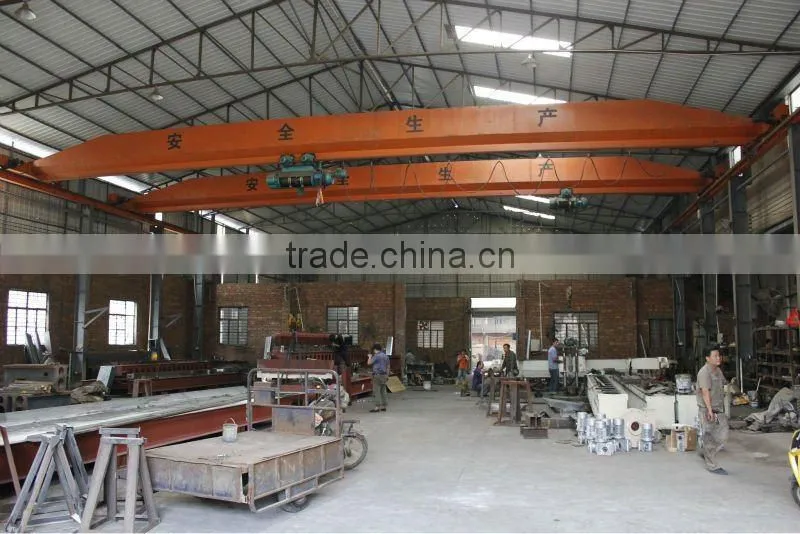

Factory
