Specifications
grinding machine for used slab burnishingpassed CE and ISO9000
adopts PLC terminal control,with par
85 degree gloss

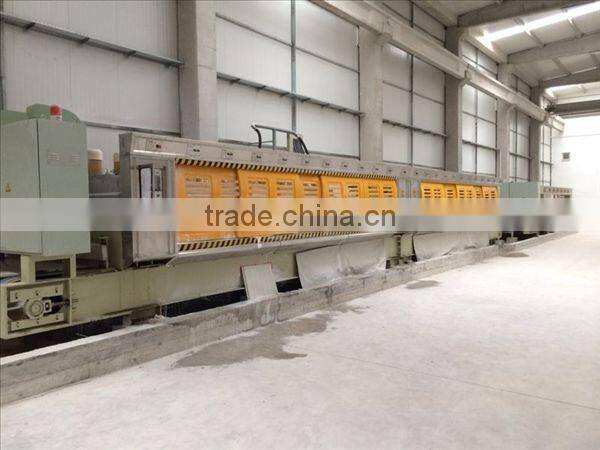

grinding machine for used slab burnishing
1,It poccesses features as full automatic operation, fast processing speed and easy handling.
pierre de marbre polissage machine à polir
2,The machine's power consumption is only 1/3 comparing with traditional continuous polishing machines.
pierre de marbre polissage machine à polir
3,Control system adopts PLC terminal control with LCD touch screen terminal for parameter setting and fault prompts.
pierre de marbre polissage machine à polir
4,The machine is equipped with variable-frequency adjustable speed system for the grinding speed and the conveyor speed's adjustment.
pierre de marbre polissage machine à polir
5,The polishing process is all automatic,for the polishing heads are able to recognize the shape of slabs intelligently.
pierre de marbre polissage machine à polir
Polishing result:
Amazing ! High glossiness as a mirror !
Two models for your references as below:
| Model | ZDMJ-20 | ZDMJ-16 |
| Plate width | 300-2100 mm | 300-2100 mm |
| Plate thickness | 10-60 mm | 10-60 mm |
| Belt feeding speed | 0-3.0 m/min | 0-3.0 m/min |
| Power of spindle motor | 7.5 kw | 7.5 kw |
| Total power | 150 kw | 125 kw |
| Water cosumption | 15 m³/h | 10 m³/h |
| Dimension(L×W×H) | 10750*2300*2600 mm | 9230*2300*2600 mm |
1.Warranty(Non artificial damage): 6 months for spare parts;12 months for main parts.
2.Engineers available to service overseas.
3.Special customized design is available.
