20~315mm Electrofusion Machine

Name: 20~315mm Electrofusion Machine
Brand: YUDA
SKU: 122010907
Availability: InStock

US$ 1,250 - 1,400 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

YUDA

Wuxi Yuda Plastic Pipe Welding Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name YUDA

Tube Diameter 20~315mm

Dimensions 0.02CBM

Weight 60KGS

Usage butt fusion

Voltage 220V

Certification CE

Warranty 1 year

Specifications

1. type: electrofusion machine
2.welding range : 20~315mm
3. input power: 220V 50HZ

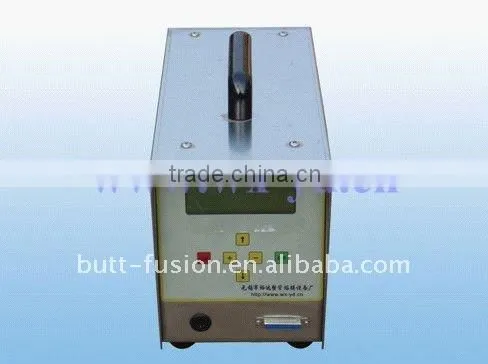

20~315mm Electrofusion Machine

♦ Our YUDA eletrofusion welding machine adopt RMS control, main suitable for connection of PE pipes and

fittings which are used for natural gas or water supply. It is the perfect equipment for manufacturers or construction

units of pipes and fittings.

♦ electrofusion machine has High brightness LCD display. Chinese/English operation. Friendly interface for human and machine

♦ Wide power supply and voltage input, fully suitable for spot electric network wave

♦ High accurate power , time controlling. Ensure welding quality

♦Huge storage capacity for welding datum, easy way to enter welding parameters

♦ electrofusion machine is compact design, small volume and light weight

electrofusion machine speicification:

Dimension	L×W×H(mm)	330×200×270
Input data	Input voltage	48V±10%,220V±20% or 380V±20%
Input data	Input power	40~65Hz
Output data	Output voltage	0~50V
Output data	Output power	3.5KW
Main Control Specification	Environment temperature	-15°C~45°C
	Storage temperature	-30°C~70°C
	Control ways	Constant voltage/currency/power
	Data record times	500
	Power constant precision	≤±0.5%
	Overload capacity	1.5Ie,1 minute
	Time control precision	≤±0.01%
	Temperature measurement precision	±0.5°C
	Duty rates	60%
	Data output	RS232
	protection	See the fault sheet
	Soft operation	Windows 2000/XP
