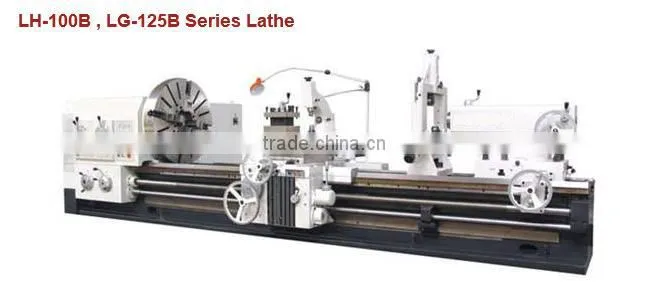

LH-100B,LG-125B series lathe
Technical Specification:
Model |
LH-100B |
LG-100B |
LH-125B |
LG-125B |
|
Swing over bed |
1000mm |
1250mm |
|||
Max length of work piece |
1500/3000/5000/8000mm |
||||
Max turning length |
1300/2800/4800/7800mm |
||||
Swing over cross slide |
610mm |
800mm |
|||
Swing in gap |
|
1480mm |
|
1730mm |
|
Width of gap |
|
540mm |
540mm |
||
Spindle bore diameter |
130mm |
||||
Width of bed ways |
755mm |
||||
Morse taper of spindle center |
140mm 1:20 |
||||
|
Spindle speed |
N (1) forward |
3.15 – 315rpm |
|||
N (1) reverse |
3.5 – 278rpm |
||||
N (2) forward |
2 – 200rpm |
||||
N (2) reverse |
2.24 – 178rpm |
||||
|
Feed range of tool post for per rev. of spindle
|
Longitudinal |
0.10 –1233 |
|||
Cross |
0.05 – 6mm (half of longitudinal) |
||||
Top Slide |
0.025 – 3mm (a quarter of longitudinal) |
||||
Speical Gears |
Half of standard feed |
||||
Thread cutting range |
Metric threads |
1 -120mm (44pitches) |
|||
Inch system threads |
28 -1/4TPI (31pitches) |
||||
Module threads |
0.5 -60mm (45pitches) |
||||
Diameter pitch threads |
1/2 -56DP (38 pitches) |
||||
Section specification of tool post |
45 x 45mm |
||||
Cross slide travel |
520mm |
||||
Tailstock quill diameter |
160mm |
||||
Max travel of tailstock quill |
300mm |
||||
Morse taper of tailstock center |
M6 |
||||
Main motor |
22kw |
||||
Rapid travel motor |
1.5kw |
||||
Coolant pump motor |
0.12kw |
||||
Oil pump motor |
120kw |
||||
Max.overload between centers |
5500kg |
||||
Model |
LH-100B LG-100B |
LH-125B LG-125B |
LH-100B LG-100B |
LH-125B LG-125B |
Net weight (Kg) |
Dimensions (L X W X H) (mm) |
|||
1500mm |
9200/9250 |
10200/10250 |
4600 x 2150 x 1700 |
4600 x 2275 x 1825 |
3000mm |
10700/10750 |
11900/11950 |
6100 x 2150 x 1700 |
6100 x 2275 x 1825 |
5000mm |
13000/13050 |
14500/14550 |
8100 x 2150 x 1700 |
8100 x 2275 x 1825 |
8000mm |
15700/15750 |
17900/17950 |
11100 x 2150 x 1700 |
11100 x 2275 x 1825 |
