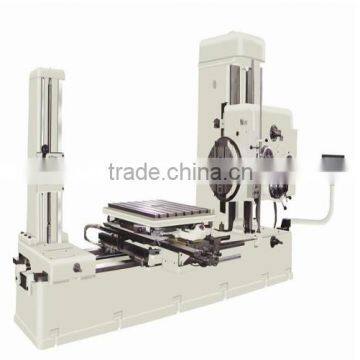

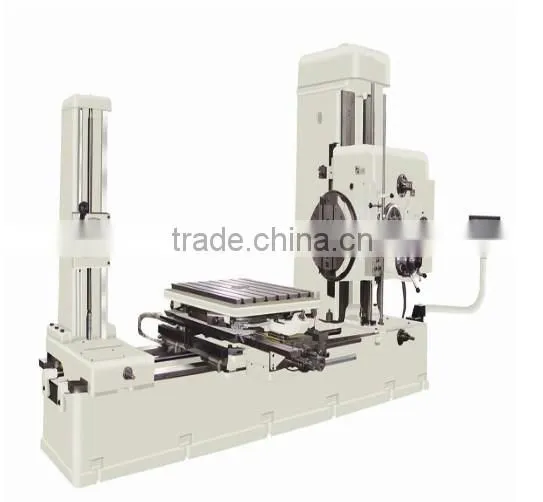

BMH-90 Series DRO Horizontal Boring and Milling Machines
- China main ports
- T/T
You May Like
Product Details
Condition | New | Place of Origin | Tianjin, China | |
Brand Name | BMT | Model Number | BMH-90 series | |
Type | Horizontal | Certification | CE | |
Warranty | 12 monthes | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications

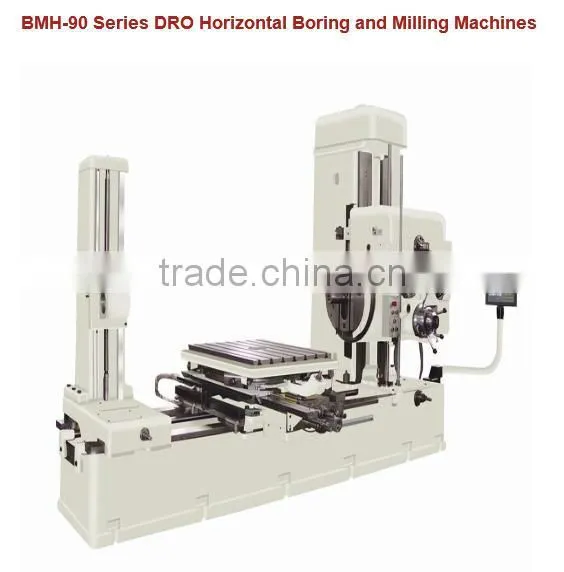

BMH-90 series DRO horizontal boring and milling machines
BMH-90 series DRO horizontal boring and milling machines
Technical Specification:
Model | BMH-85 | BMH-90 | BMH-110B | BMH-110C/2 | BMH-110C/3 |
Spindle diameter (mm) | 85 | 90 | 110 | 110 | 110 |
Spindle taper | Morse 5# | Morse 5# | ISO 50# | ISO 50# | ISO 50# |
Spindle speed (r/min) | 20 - 1000 | 20 - 1000 | 9 - 1000 | 9 -1000 | 9 -1000 |
Power of spindle motor (kw) | 6.5 / 8.0 | 6.5 / 8.0 | 11 | 7.5 | 7.5 |
Max. drilling capacity of spindle (mm) | 65 | 65 | 50 | 50 | 50 |
Max. boring capacity of spindle (mm) | 240 | 240 | 300 | 300 | 300 |
Max. boring capacity of facing chuck (mm) | 450 | 450 | 600 | 600 | 600 |
Speed of facing chuck (r/min) | 10-200 (14 grade) | 10-200 (14 grade) | 6-221 | 6-221 (14 grade) | 6-221 |
Table size (L X W) (mm) | 1000 x 800 | 1000 x 800 | 1250 x 1250 | 1200 x 1100 | 1200 x 1100 |
Max. load of table (kg) | 2000 | 2000 | 4000 | 4000 | 4000 |
Transverse travel of table (X) mm | 850 | 850 | 1600 | 1300 | 1600 |
Vertical travel of spindle head (Y) mm | 757 | 755 | 1300 | 1100 | 1300 |
Longitudinal travel of table (Z) mm | 1080 | 1080 | 1400 | 1400 | 1400 |
Axial travel of spindle (W) mm | 600 | 600 | 600 | 600 | 600 |
Travel of facing chuck slide (mm) | 170 | 170 | 170 | 170 | 170 |
DRO | X, Y | X, Y | X, Y, Z | X, Y | X, Y |
Weight of machine (kg) | 10500 | 10500 | 21000 | 18000 | 19000 |
