SANXING GROUP SABM Arch Roof Roll Forming Machine in China

SANXING GROUP SABM Arch Roof Roll Forming Machine in China thumbnail-1
SANXING GROUP SABM Arch Roof Roll Forming Machine in China thumbnail-2
SANXING GROUP SABM Arch Roof Roll Forming Machine in China thumbnail-3
SANXING GROUP SABM Arch Roof Roll Forming Machine in China thumbnail-4
SANXING GROUP SABM Arch Roof Roll Forming Machine in China thumbnail-5
SANXING GROUP SABM Arch Roof Roll Forming Machine in China thumbnail-6
SANXING GROUP SABM Arch Roof Roll Forming Machine in China photo-1
SANXING GROUP SABM Arch Roof Roll Forming Machine in China photo-2
SANXING GROUP SABM Arch Roof Roll Forming Machine in China photo-3
SANXING GROUP SABM Arch Roof Roll Forming Machine in China photo-4
SANXING GROUP SABM Arch Roof Roll Forming Machine in China photo-5
SANXING GROUP SABM Arch Roof Roll Forming Machine in China photo-6
US$ 35,000 - 70,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
Sanxing
Model Number:
SX-600-305
Contact Supplier Request Quote Chat Now
Yingkou Sanxing Roll Forming Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Liaoning, China
Brand Name Sanxing
Model Number SX-600-305
After-sales Service Provided Engineers available to service machinery overseas

SABM arch roof roll forming machine

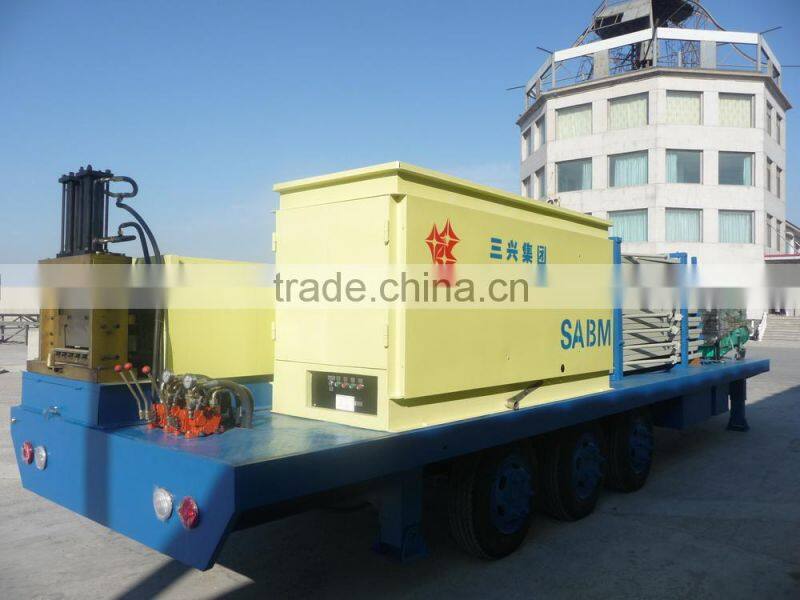

1. Pictures of Product

SANXING GROUP SABM arch roof roll forming machine in China

2. Descriptions of product



MAIN TECHNICAL SPECIFICATION



1. Size: 9000mm×2250mm×2300mm



2. Total weight: About 12000KG



3.Material of bending leaf: Stainless Steel,12mm



4. Cutting Material: Cr12, 1MOV, Heat treatment



5. Cutting type: Hydraulic / Mechanical controlling cutting



6. Total motor power: 15.0KW



Forming Power: 5.5KWBending Power: 4.0KW



Cutting Power: 4.0KW Conical Power: 1.5KW



7. Material of rollers: 45# steel, quenched HRC 58-62



8. Material of shafts: 45# steel, adjusted



9.Step of rollers: 13



10. Applicable Span: 24m max.



11.Feeding width: 600mm



12. Finished width: 305mm



13. The depth of the groove: 109mm



14. Operating factor of the panel: 51%



15. Thickness of the Panel: 0.8-1.5mm



16.Working Speed: Straight Sheet: 15m/min



Arch Sheet: 13m/min



Seaming: 6m/min



17. Electric Standard: 380V / 50 HZ / 3 PHASES or according to your requirement



18. Controlling system: PLC (Omron, Japan)



19. Passive decoiler: max.capacity of 5000kgs suitable for trailer carrying

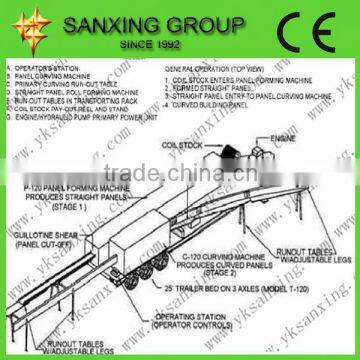

20. Working procedures: feeding-forming-cutting-curving

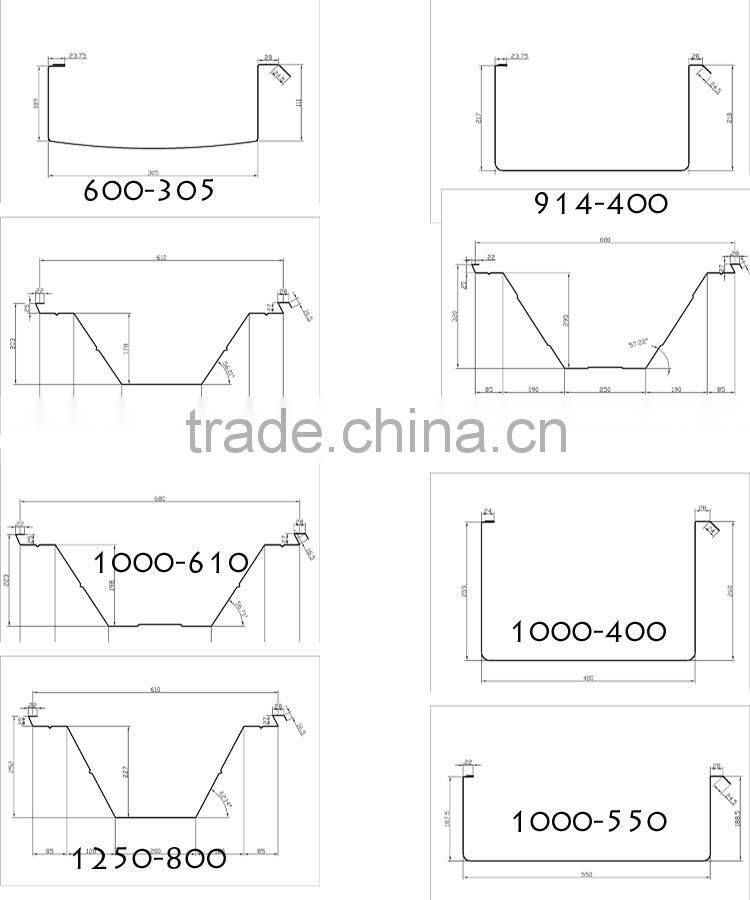

3. Different shapes of Product

SANXING GROUP SABM arch roof roll forming machine in China

4. How to Order Our Product



1. Customers offer span and profile



2. Our technician will make a professional suggest of the machine according to

 your information.



3. After your confirmation ITME of the machine, we will do quote.



4. Note. Customers can order all product samples we put or

your  can also have your own idea, as we are custom-made product supplier,

so different colors and types are available.

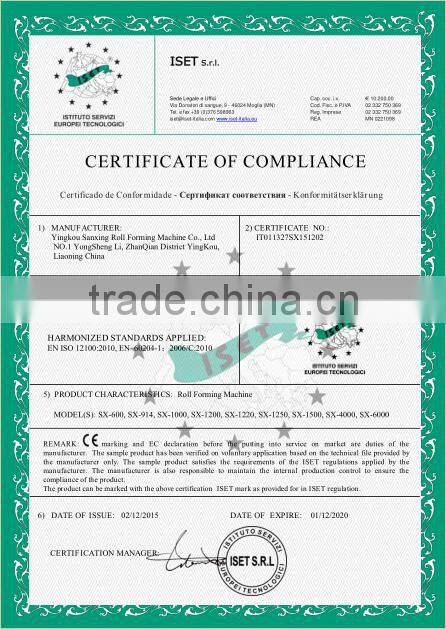

5. Certifications of Product

SANXING GROUP SABM arch roof roll forming machine in China

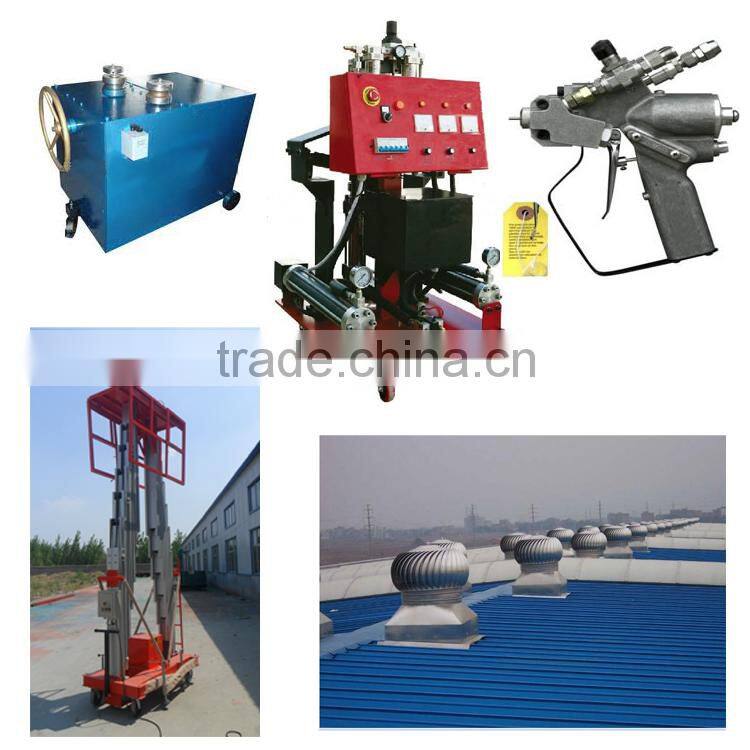

6. More Products to Choose

SANXING GROUP SABM arch roof roll forming machine in China

7. Trade Items of Product



MOQ 1 SET
Package 40HQ
Delivery Time 30 days after prepayment
Payment Type T/T, L/C, ……
Supply Ability 20 sets/month
Port  Dalian









Company Information

Yingkou Sanxing Roll Forming Machine Co.Ltd is the earliest manufacture of trailer arch roof machine in China since 1992. The only one who have got engineering qualification. Not only we are professional in machinery but also experienced in project designing. Welcome to visit us any future time.

SANXING GROUP SABM arch roof roll forming machine in China

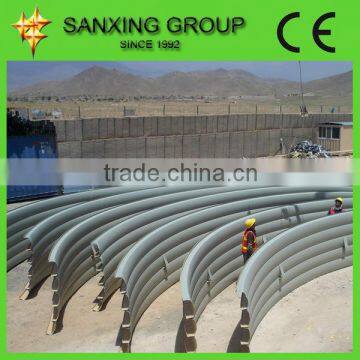

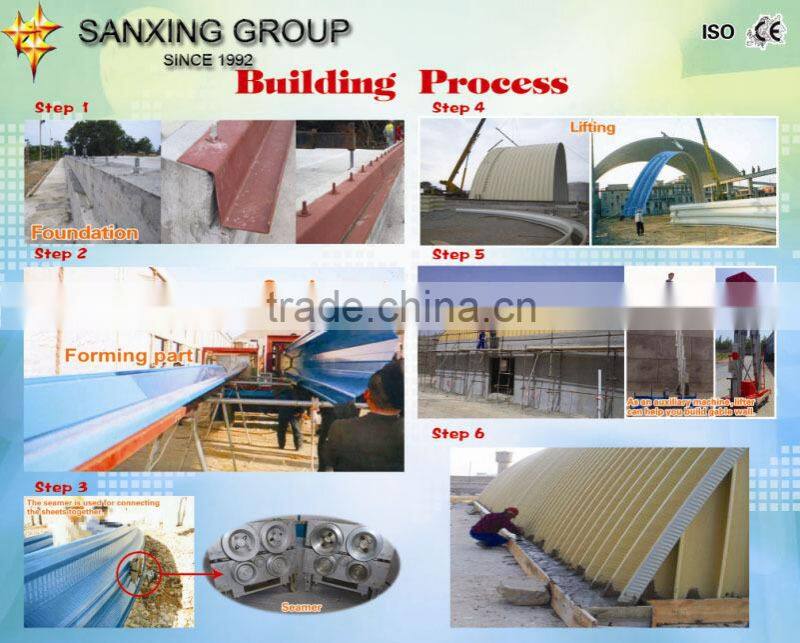

2.Building Process

SANXING GROUP SABM arch roof roll forming machine in China

3. Our Customers

SANXING GROUP SABM arch roof roll forming machine in ChinaSANXING GROUP SABM arch roof roll forming machine in China

FAQ

SANXING GROUP SABM arch roof roll forming machine in China
