Specifications
commercial ice block machine1.Bitzer/Copeland Refrigeration System;
2.1-150T productivity avaliable;
3.Good craftwo
Name: Good price China manufacturer commercial ice block making machine
General Information:
1. Daily capacity: from 1 ton to 100 tons per set/24 hours.
2. Weight of each block ice: 5kg, 10kg, 15kg, 20kg, 25kg, 30kg....50kg...100kg. We also can customize for you.
3. Installation and operation is very easy. We will deliver the machine mainly as three parts to you. All you need to do is to connect the cooling tower with the refrigeration unit and connect refrigeration unit with the brine tank.
4. We will deliver the machine together with manual book which will instruct you how to install the machine and also teach you how to solve the common mistakes to the machines.
5. For our products, we offer you 1 year quality guarantee after the installation of the machine in your factory and lifelong technical support.
Block ice making machine:
NO. | Parameters | Technical data | |
1 | Name | Block Ice Machine of container | |
2 | Model | JJMB5 | |
3 | Quantity | 1Unit | |
4 | Daily output | 5tons/day | |
5 | Weight | 3500kg | |
6 | Measurement | Machine | Main machine:1800mm x 750mm x 1500mm |
Salt tank:3200mm×2150mm×1250mm | |||
Size of Ice Block | 300mm×120mm×800mm (25kg) 70pcs/time, 3times/day, total 210pcs 25kg block ice. | ||
7 | Noise | 55dB | |
8 | Refrigerant | R22 | |
9 | Evaporating temp. | -10°C | |
10 | Condenser temp | +40°C | |
11 | Necessary cooling capacity | 35.1KW | |
12 | Input water temp. | 28°C | |
13 | Ambient temp. | 40°C | |
14 | Compressor | Model | Semi-compressor compressor |
Brand name | Bitzer | ||
Amount | 1 | ||
Type | 4G-20.2 | ||
Capacity | 20HP | ||
15 | Total Power of cooling tower | 3.75KW | |
16 | Cooling air Volume | 500m3/h | |
17 | Cooling water flow | 40 m3/h | |
18 | Water consumption | 0.08m3/h | |
19 | Power of circulating water pump | 3KW | |
22 | Voltage | 380V/3Phase/50Hz | |
23 | ice block weight density | 900-950kg/m3 | |
24 | Power consumption | 70KW~80KW/ton | |
Brine system block ice machine structure and application:
(1)Brine system block ice machine structure: refrigeration unit, brine tank (ice making tank), water cooling tower/ air cooling fan, and necessary components. We will prepare the three in unit, you just need to connect the power and water pipes for the three parts. Pleas see the picture in the attachment.
(2)Daily production: 1 ton per day to 100 tons per day.
(3)Weight of block ice: 2.5kg,5kg, 10kg, 20kg…100kg, also can be done as your requirement.
(4)Power form supply: 380V/50HZ/3P (Can be customized based on your requirements), Refrigerant R22/R404a.
(5)Application: the block ice is use to reduce temperature, especially in Africa country where the power is not stable and the climate temperature is high. When the power is off, people use the block ice to cooling the drinking and beverage. And block ice is also used to keep fish fresh or crushed into small pieces to fresh vegetable and fruit.

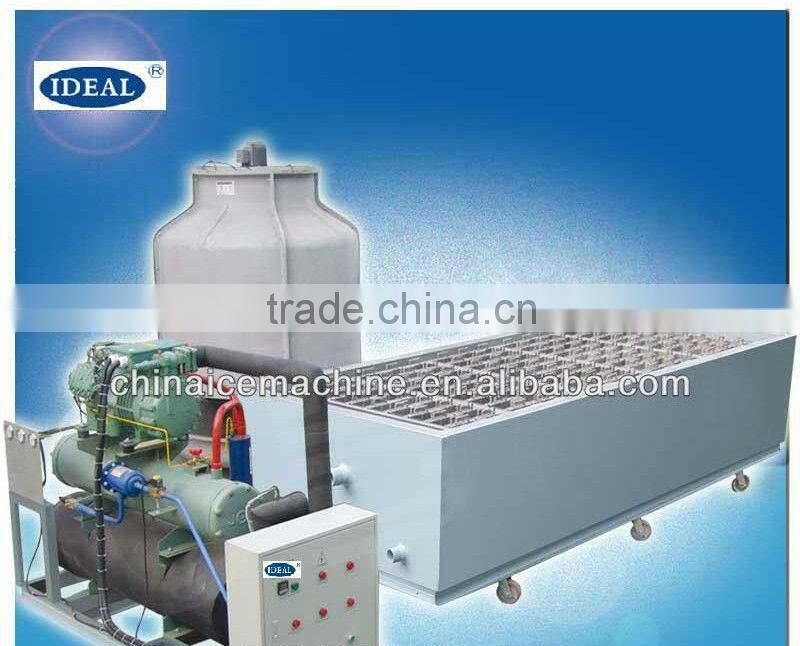

Main machine:

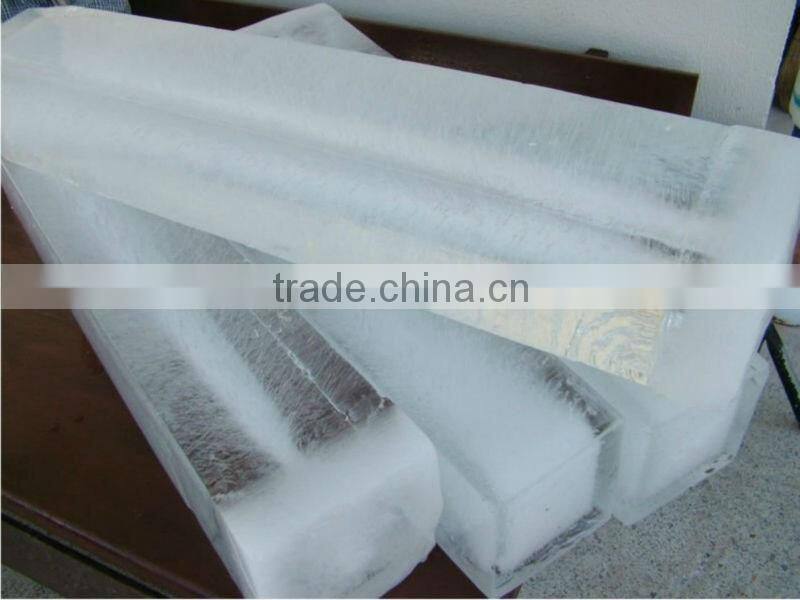

Ice Block :

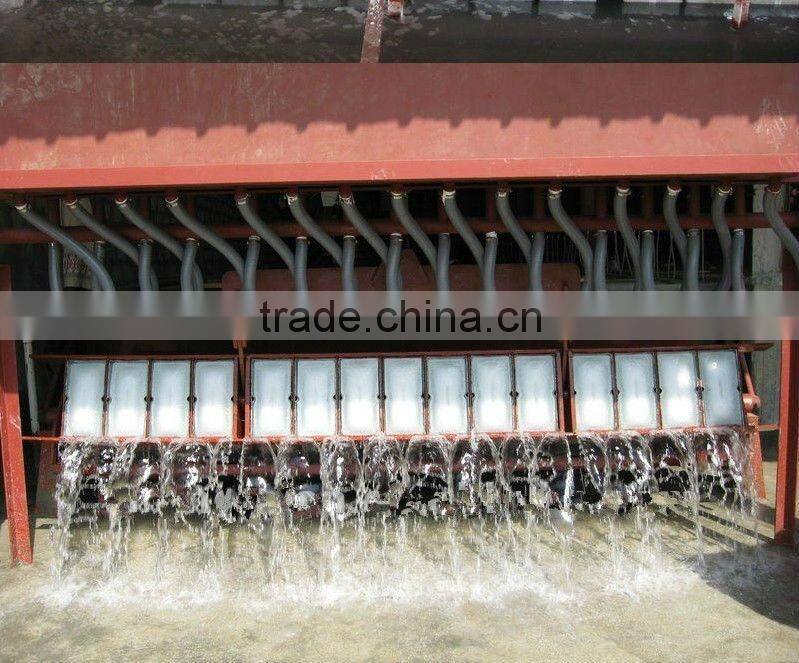

Ice-making tank:
