Specifications
ice block making machine1.different Ice blocks weight
2.Brand compressor
3.High efficiency
4,High stability
Name: General information: Automatic ice block making machine with transparent block ice for fishery
IDEAL ice block machine is a new type with high efficiency units, which mainly aiming at the Africa, Middle East and Oceania.
This machinery units adopt the integrated design, easy to install, just need connect the power.
The ice making tank adopt the Polyurethane foam technology, it have good viscosity performance,avoiding the defects of foam uneven.
It’s design according to the theoretic fluid, so the flow stability.
Specification: Automatic ice block making machine with transparent block ice for fishery
NO. |
Parameters |
Technical data |
|
1 |
Name |
Ice Block Machine |
|
2 |
Model |
JJMB30 |
|
3 |
Quantity |
1Units |
|
4 |
Daily output |
3tons/day |
|
5 |
Weight |
1,500kg |
|
6 |
Measurement |
Main machine |
1800mm x 1200mm x 1500mm |
|
Ice-making tank |
1940mm x 1740mm x 1065mm |
||
|
Size of Ice Block |
350mm x 100mm x 800mm (25kg/piece, total 36pieces ice block can, produce three times ice a day, total 108 pieces ice a day.) |
||
7 |
Noise |
55dB |
|
8 |
Refrigerant |
R404a /R507/R22 |
|
9 |
Evaporating temp. |
-10°C |
|
10 |
Condenser temp |
+40°C |
|
11 |
Necessary cooling capacity |
24.15KW |
|
12 |
Input water temp. |
28°C |
|
13 |
Ambient temp. |
40°C |
|
|
14
|
Compressor |
Model |
Semi-hermetic compressor |
Brand name |
BITZER |
||
Amount |
1 |
||
Type |
4TCS-12.2 |
||
Capacity |
12HP |
||
15 |
Total Power of cooling tower |
2.95 |
|
16 |
Cooling air Volume |
200m3/h |
|
17 |
Cooling water flow |
40 m3/h |
|
18 |
Water consumption |
0.08m3/h |
|
19 |
Power of circulating water pump |
2.2KW |
|
22 |
Voltage |
380V/3Phase/50Hz |
|
23 |
ice block weight density |
900-950kg/m3 |
|
24 |
Power consumption |
70KW~80KW/ton |
|
Brine system block ice machine structure and application:

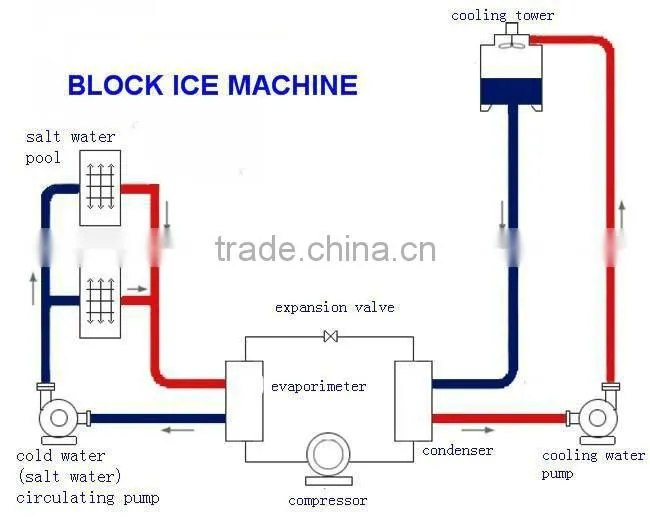

(1)Brine system block ice machine structure: refrigeration unit, brine tank (ice making tank), water cooling tower/ air cooling fan, and necessary components.

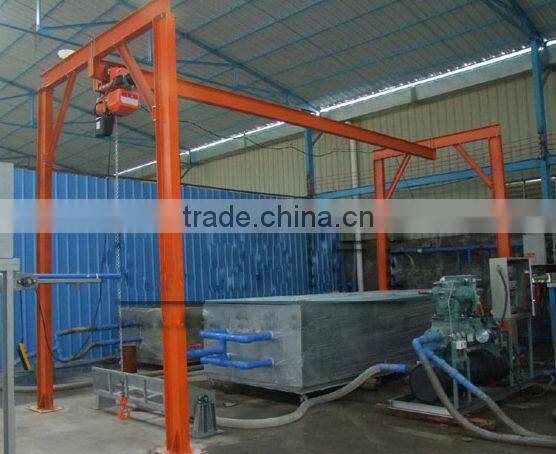

We will prepare the three in unit, you just need to connect the power and water pipes for the three parts. Pleas see the picture in the attachment.
(2) Daily production: 1 ton per day to 100 tons per day.

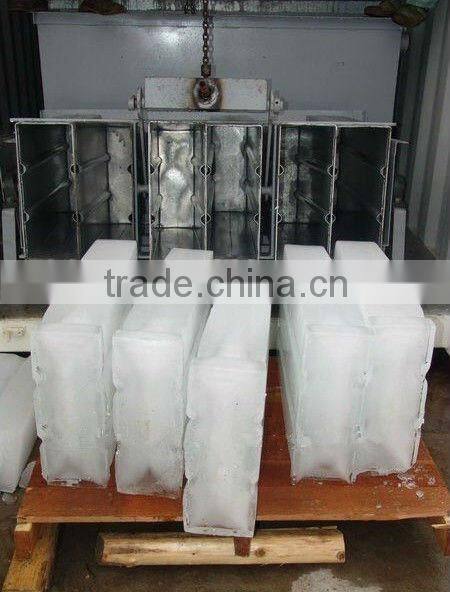

(3) Weight of block ice: 2.5kg,5kg, 10kg, 20kg…100kg, also can be done as your requirement.
(4) Power form supply: 380V/50HZ/3P (Can be customized based on your requirements), Refrigerant R22/R404a.
(5)Application: the block ice is use to reduce temperature, especially in Africa country where the power is not stable
and the climate temperature is high. When the power is off, people use the block ice to cooling the drinking and beverage.
And block ice is also used to keep fish fresh or crushed into small pieces to fresh vegetable and fruit.

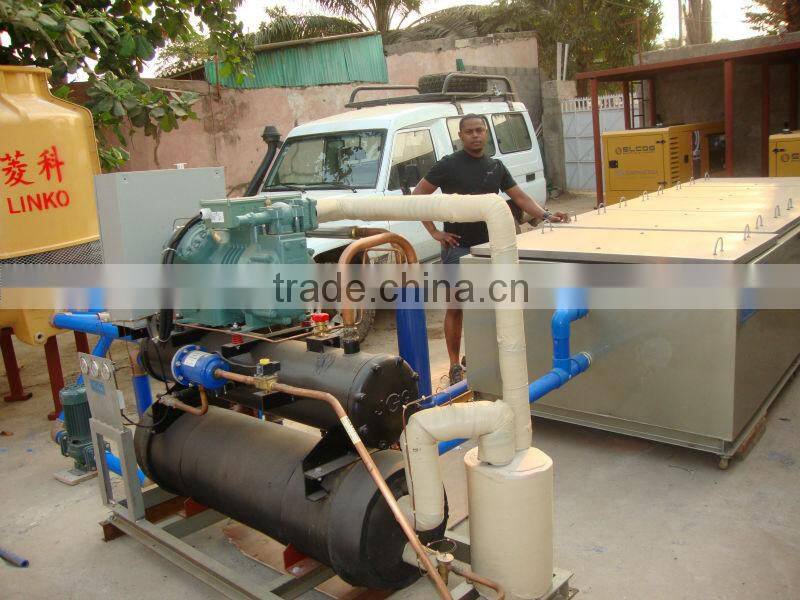

Main Machine:

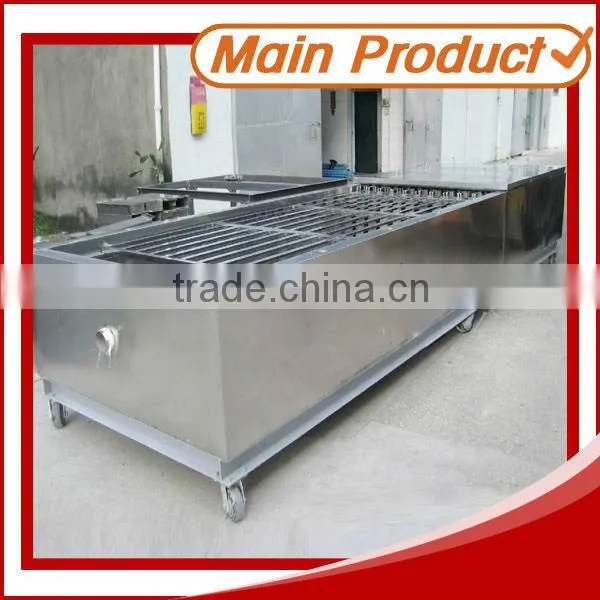

Ice-making tank:
