Product Details
| Place of Origin | Hebei, China | Brand Name | Wanfang | |
| Model Number | YJV22 | Insulation Material | XLPE | |
| Type | Medium Voltage | Application | Power Station | |
| Conductor Material | Copper | Jacket | PVC |
Product Description
YJV22 xlpe insulated copper cable, 11kV Power Cable
Conductor: annealed plain copper, stranded, class 2
Conductor Screen: semi-conductive, black color
Insulation: XLPE, 3.4mm thickness
Insulation Screen: semi-conductive, black color
Screening Material: Copper tape
Inner Sheath: PVC
Armored Material: zinc coated steel tape
Jacket(outer sheath): PVC
Number of Core: 3
Nominal cross sectional area: 185 mm2
Rated Voltage: 6/10kV , or 6.35/11kV(U0/U)
Long time working temperature: 90
Short circuit temperature: 250

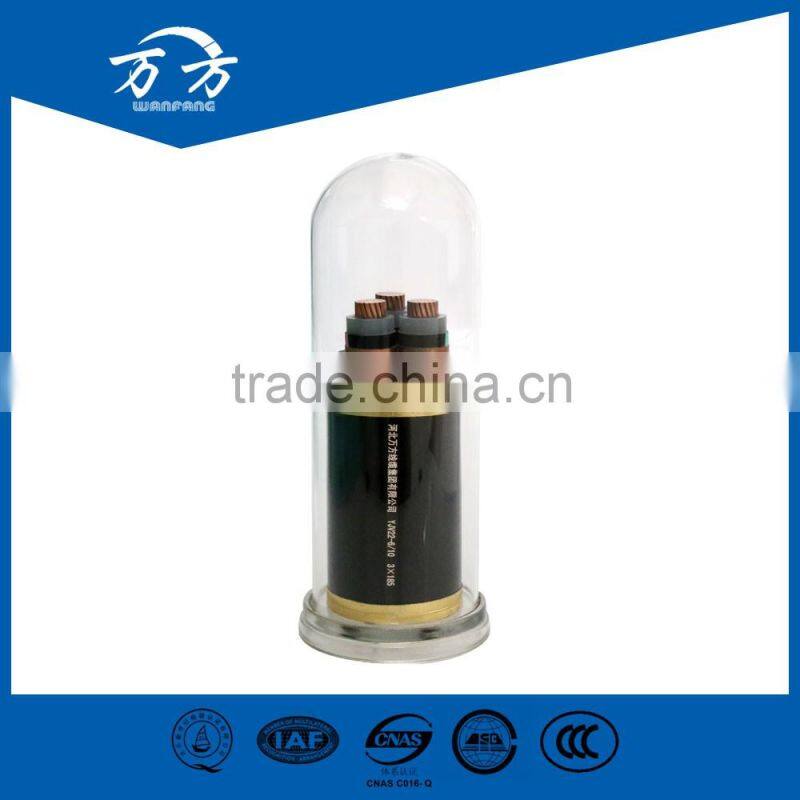

Cable Photoes
If you need other type, or size, pls feel free to contact us.

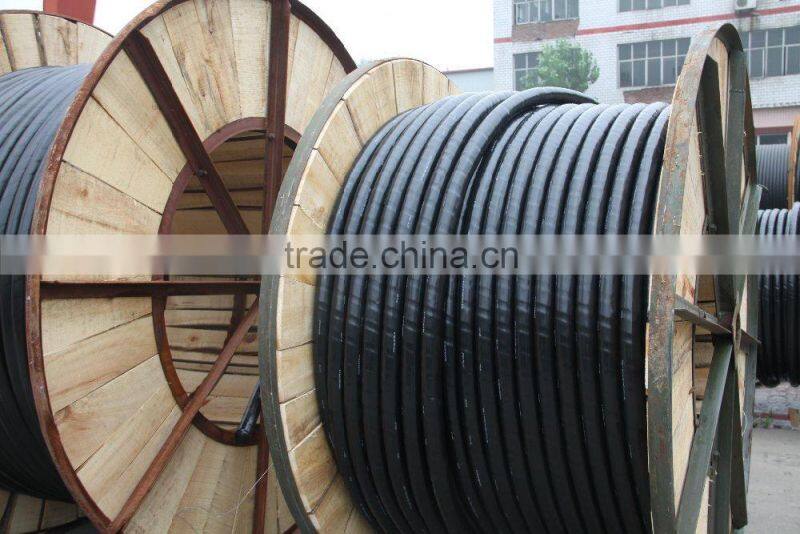

Package: steel-wooden drum, or do as customer required
Delivery time: within 10 workind days after got the down payment, depends on the quantity
Shipment: By sea, by air, by road, by rail
Port of loading: Tianjin, Qingdao
Prompt reply & instant communication available
Shared Freight for sample delivery
Photoes all-the-way for cargo tracing after order
Factory-visiting or Third-party inspection before shipment is welcomes
We also provide OEM service
ISO 9001:2008 & ISO 14001:2004 & OHSAS 18001:2007 certificated
Verified by Alibaba & TUV
Experienced Foreigh-trade team
Total solution for wires & cables
Registered Capital: 218 million Chinese Yuan
More than 20 years manufacturing history
