5 gallon blowing machine
Model type: YC-20L-1
Product max volume:20L
Suitable for blowing bottles between 10Lto 20L
Necessary auxiliary devices:High pressure air compressor, Air filter.
Technical parameter
|
Main machine (blowert + oven) |
Model type |
Tech data |
Product Spec |
Max. product volume(L/cav) |
20 |
Max. preform neck size(mm) |
200 |
|
Max. product diameter(mm) |
400 |
|
Max. product height (mm) |
600 |
|
Cavities |
1 |
|
Blow molding part |
Die force (KN) |
150 |
Die stroke (mm) |
340 |
|
Max. mould size(mm) |
420*500 |
|
Mould thickness |
adjustable |
|
Mould spacing(mm) |
400 |
|
Max. pulling stroke(mm) |
500 |
|
Operation pressure(Mpa) |
0.8-1.0 |
|
|
Operation air pressure consumption (1tr/min) |
560 |
|
Blow pressure(Mpa) |
1.2-2.8 |
|
Blow air pressure consumption (1tr/min) |
650 |
|
Output(pcs/h) |
80-100 |
|
Machine size(LxWxH)(m) |
2.18*0.77*1.96 |
|
Machine weight(KG) |
1000 |
|
Oven |
Temperature grade(rate) |
8 |
Heating time(S) |
90-200 |
|
Voltage(V) |
220/380 |
|
Frequency(HZ) |
50/60 |
|
Total power(KW) |
15-40 |
|
Oven Size (LxWxH) |
2.37*0.68*1.65 |
|
Oven weight (KG) |
380 |

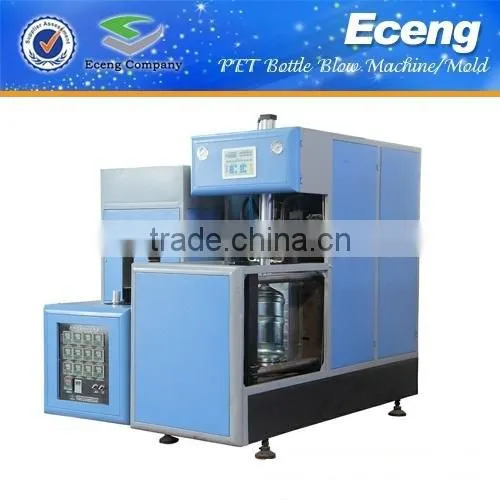

Machine picture

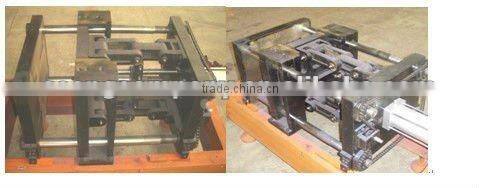

Compound die Part

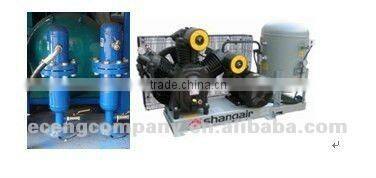

Auxiliary machine for YC-20L-1 semi-automatic blow molding machine
