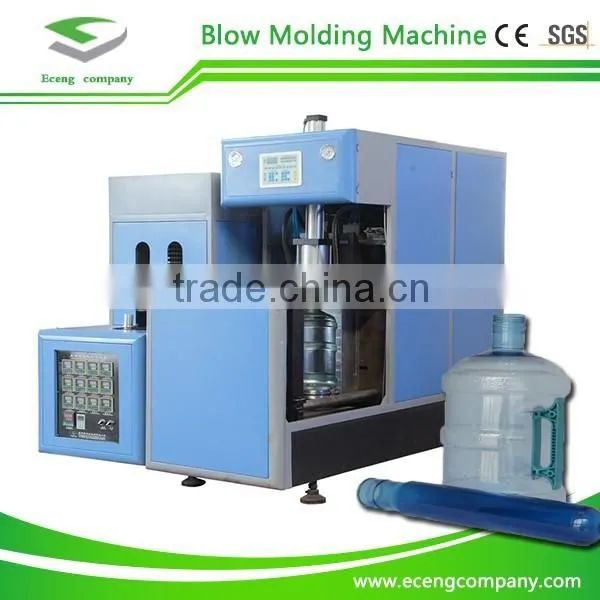

Max 5 Litre Water Bottle Blowing Machine(YC-5L-2)

Name: Max 5 Litre Water Bottle Blowing Machine(YC-5L-2)
Brand: Eceng
SKU: 121507261
Availability: InStock

US$ 2,000 - 3,500 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Bottle

Plastic Processed:

PET

Zhangjiagang Eceng Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Bottle

Plastic Processed PET

Blow Moulding Type Stretch Blow Moulding

Automatic Other, semi-automatic

Place of Origin Jiangsu, China

Brand Name Eceng

Model Number YC-5L-2

Voltage 220V

Power(W) 16kw

Dimension(L*W*H) 1.56*0.7*1.9m

Weight 1000kg

Certification CE

Warranty one year

After-sales Service Provided No overseas service provided

Specifications

1.plastic blowing machine
2.material:preform
3.excellent quality
4.best after-sales services
5.model:YC-5L-2

plastic blowing machine

Technical Data

Main machine (blow molding part + oven)	Model type	YC-5L-2
Product Spec	Max. product volume(L/cav)	5L
	Max. preform neck size(mm)	150
	Max. product diameter(mm)	200
	Max. product height (mm)	400
	Cavities	2
Blow molding part	Die force (KN)	120
	Die stroke (mm)	320
	Max. mould size(mm)	390*350
	Mould thickness	adjust
	Mould spacing(mm)	400
	Max. pulling stroke(mm)	500
	Operation pressure(Mpa)	0.8-1.0
	Operation air pressure consumption (1tr/min)	350
	Blow pressure(Mpa)	1.2-2.8
	Blow air pressure consumption (1tr/min)	300
	Output(pcs/h)	1000-1600
	Machine size(LxWxH)(m)	1.560.71.9
	Machine weight(KG)	700
Oven	Temperature grade(rate)	8
	Heating time(S)	90-200
	Voltage(V)	220
	Frequency(HZ)	50/60
	Total power(KW)	16
	Oven Size (LxWxH)	1.450.651.15
	Oven weight (KG)	330
