Specifications
Manufacturer Supply 12dBi Outdoor GSM Panel Antenna1.Freq:800-900MHz
2.Gain:12dBi
3.Size:1280*260*120mm

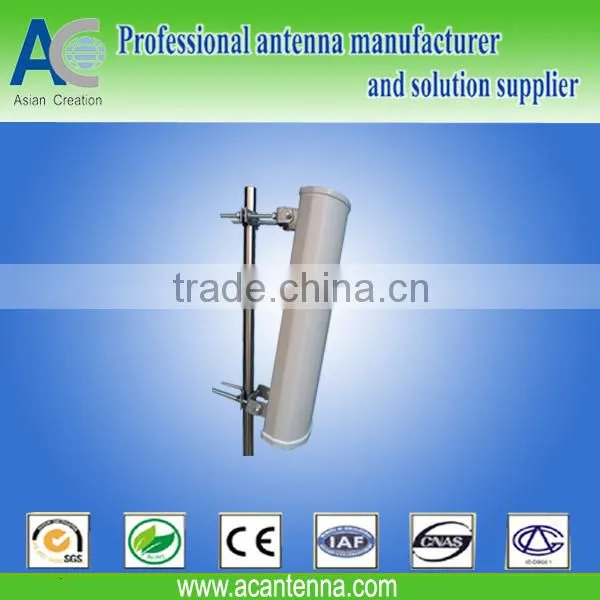

Manufacturer Supply 12dBi Outdoor GSM Panel Antenna
Applications:
AMPS800/GSM900 system
base station or repeater
Antennas Sector coverage
Features:
broadband high gain,
low VSWR provides an adjustable
angle of pole mounting kit
Electrical Specifications | |
Model |
AC-D90P12-120 |
Frequency Range |
800-900MHz |
Gain |
12dBi |
VSWR |
≤1.5 |
Polarization |
Vertical |
Horizontal Beamwidth |
120° |
Vertical Beamwidth |
15° |
F/B Ratio |
>25dB |
Impedance |
50ohm |
Maximum Input Power |
200W |
Connector |
N Female |
Operating Temperature |
-40℃ to+80℃ |
Mechanical Specifications | |
Antenna Dimension |
1280×260×120mm |
Weight |
5.3kg |
Mounting Mast Diameter |
Ø50~Ø115 mm |
Rated wind velocity |
60m/s |
Memo: Above specification subject to change without further notice.Please contact us for more details.
