Specifications
GSM UMTS Stents AP Antenna1.Freq:890-960/1710-2170MHz,824-896/1850-1990MHz
2.Gain:5dBi
3.Size:53*650mm

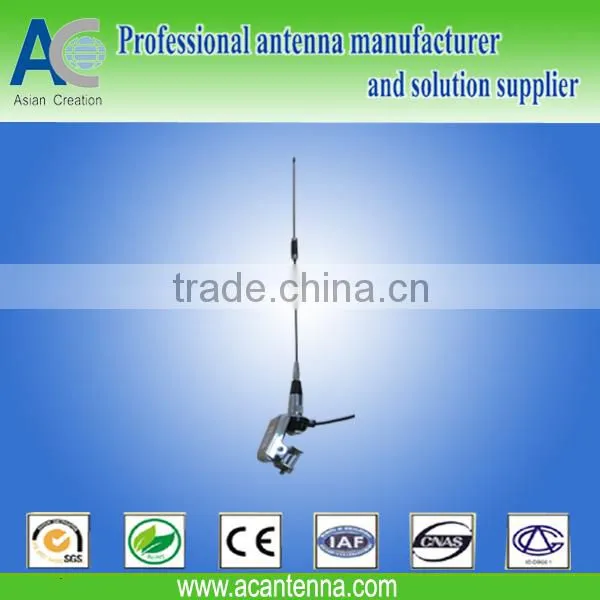

GSM UMTS Stents AP Antenna
Applications:
For AMPS/GSM system design for wave
Antennas.good structure
easy to install
Features:
Model units whip antenna is designed specifically
for mobile communication.Antenna made with stainless
steel spring wire, with good flexibility.
Electrical Specifications: | ||
Model |
AC-Q9018I12 |
AC-Q8019I12 |
Frequency Range |
890-960/1710-1880MHz |
824~896/1850-1990MHz |
Gain |
5dBi |
|
VSWR |
≤2.0 |
|
Polarization |
Verticalor Horizonta |
|
Impedance |
50ohm |
|
Maximum Input Power |
50W |
|
Cable type |
RG58U |
|
Length |
3M |
|
Connector |
SMA Male |
|
Operating Temperature |
-40°C to+80°C |
|
Mechanical Specifications: | ||
Antenna Dimension |
Φ53×650mm |
|
Weight |
400g |
|
Memo: Above specification subject to change without further notice.Please contact us for more details.
